Saab 900 1990-1993 Central lock

Group 3a Electrical, general, section 710

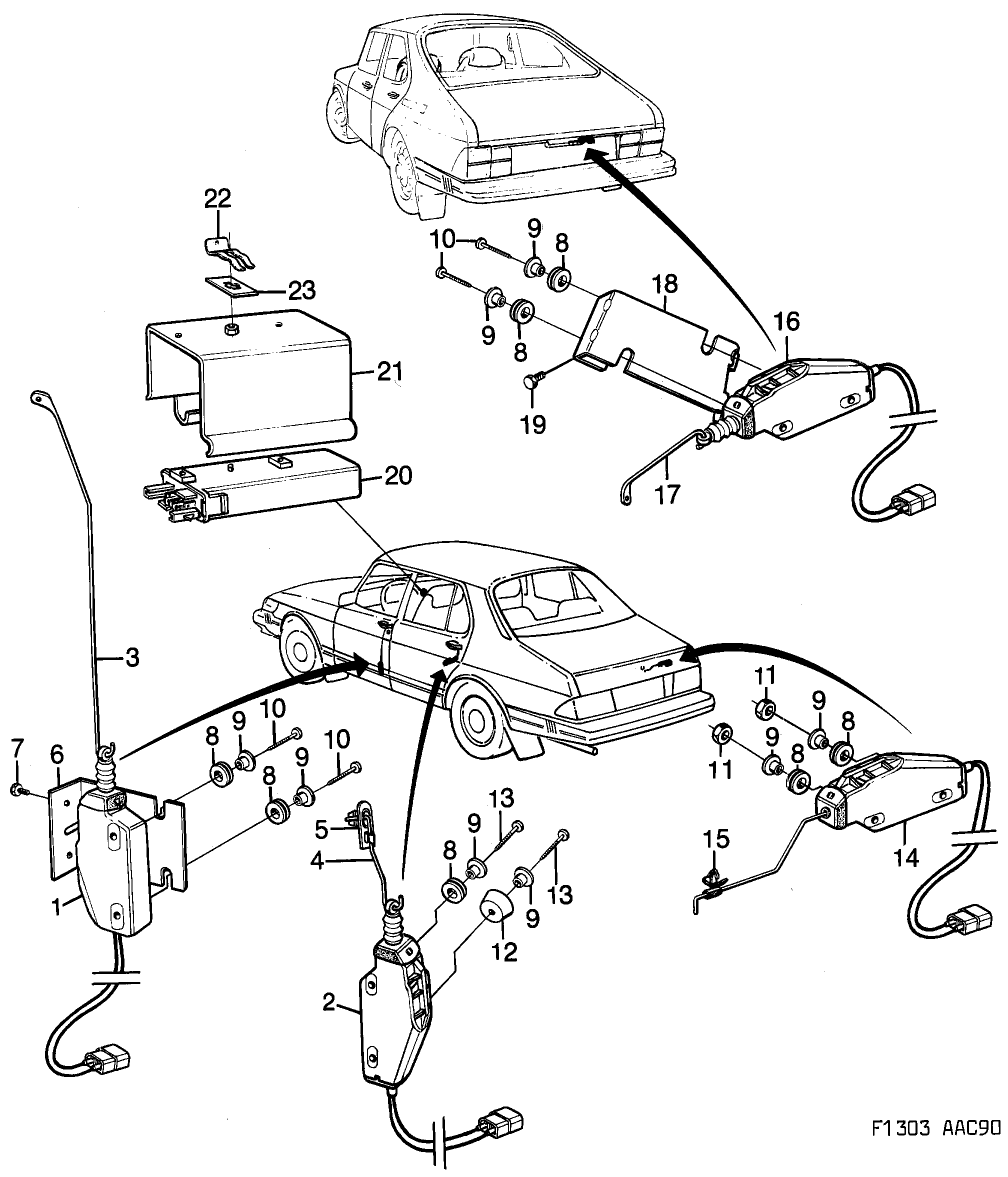

Saab 900 Central lock diagram

Pos	Article	Part No.
1	Control device	8591216
1	Electrical motor	8591224
3	Pull rod	8598245
3	Pull rod	8598252
4	Pull rod	8578221
5	Clip	8461675
6	Bracket	8598211
6	Bracket	9551151
6	Bracket	8598229
6	Bracket	8598237
7	Screw	8059537
8	Bushing	8573966
9	Sleeve	8573958
10	Screw	7973597
11	Nut	8074098
12	Sleeve	7085541
14	Electrical motor	8591232
15	Clip	8577710
17	Pull rod	8574501
18	Bracket	8575391
19	Screw	7972441
20	Electronic unit	9529975
21	Attaching brace	9564170
22	Clip	8565855
23	Spacer washer	9564345
