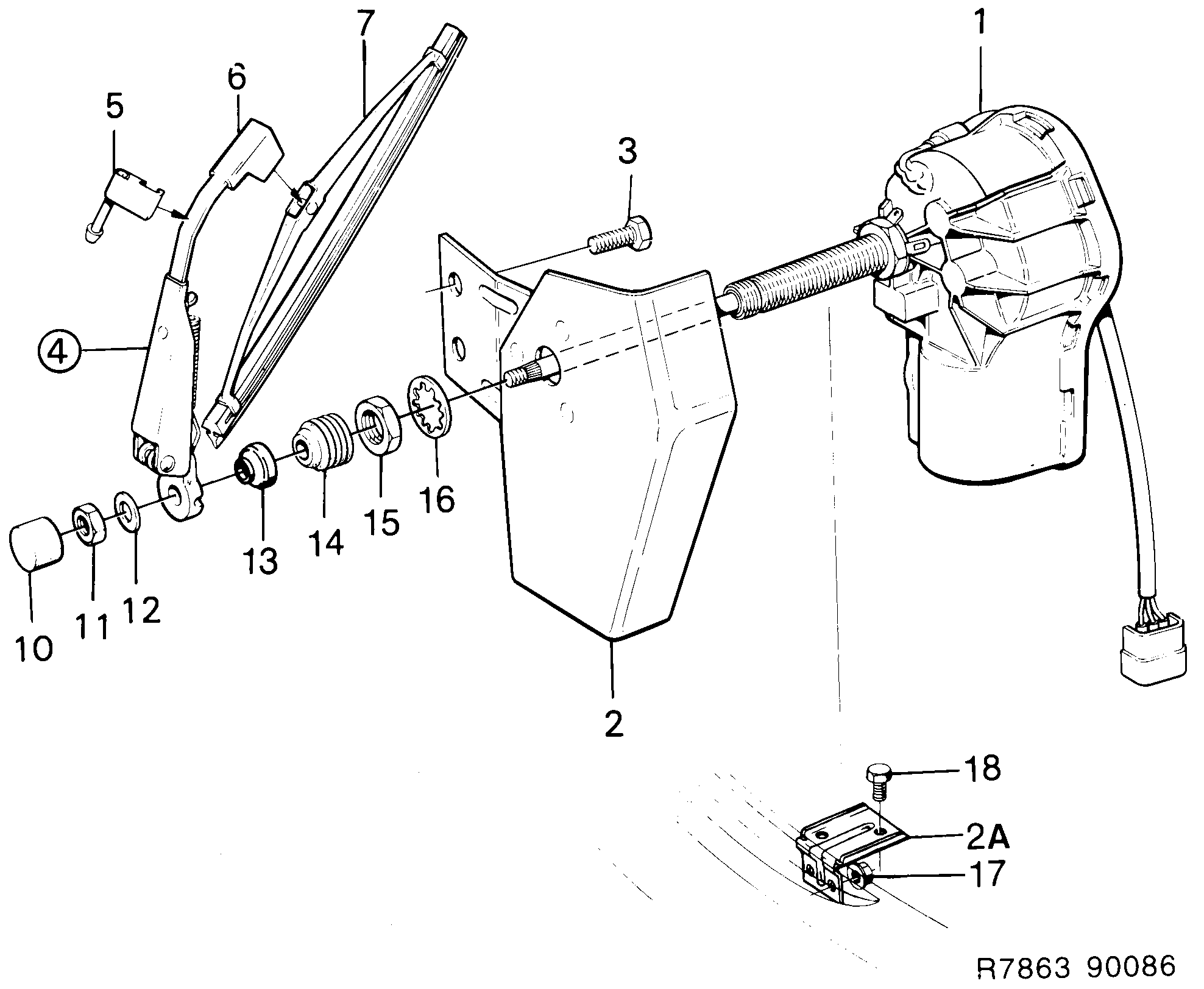

Group 3a Electrical, general, section 700
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wiper motor | 8596207 |
| 1 | Wiper motor | 8596215 |
| 1 | Wiper motor | 9556200 |
| 1 | Wiper motor | 9556218 |
| 2 | Engine mountings | 8552366 |
| 2 | Engine mountings | 8552309 |
| 2A | Bracket | 9556242 |
| 3 | Screw | 8019895 |
| 4 | Wiper arm | 8552051 |
| 4 | Wiper arm | 8552069 |
| 4 | Wiper arm | 9556291 |
| 4 | Wiper arm | 9556283 |
| 5 | Nozzle | 8559593 |
| 5 | Nozzle | 8559601 |
| 5 | Nozzle | 30526009 (replaces 9509126) |
| 5 | Nozzle | 30526008 (replaces 9509118) |
| 6 | Adapter | 9558149 |
| 6 | Adapter | 8546368 |
| 7 | Wiper blade | 8552119 |
| 7 | Wiper blade | 30520558 (replaces 9556309) |
| 7 | Wiper blade | 30520558 (replaces 9120882) |
| 10 | Cover | 8552077 |
| 11 | Nut | 8029548 |
| 11 | Nut | 8029548 (replaces 8151219) |
| 12 | Washer | 7972284 |
| 13 | Seal | 8578510 |
| 14 | Seal | 8572604 |
| 15 | Nut | 8552184 |
| 16 | Washer | 7968514 |
| 17 | Nut | 11900428 (replaces 7971658) |
| Wiper blade kit | 8546327 | |
| Wiper blade kit | 8547408 | |
| Wiper motor kit | 8548133 | |
| Wiper motor kit | 8548141 |
