Saab 900 1986-1989 Windshield wiper

Group 3a Electrical, general, section 670

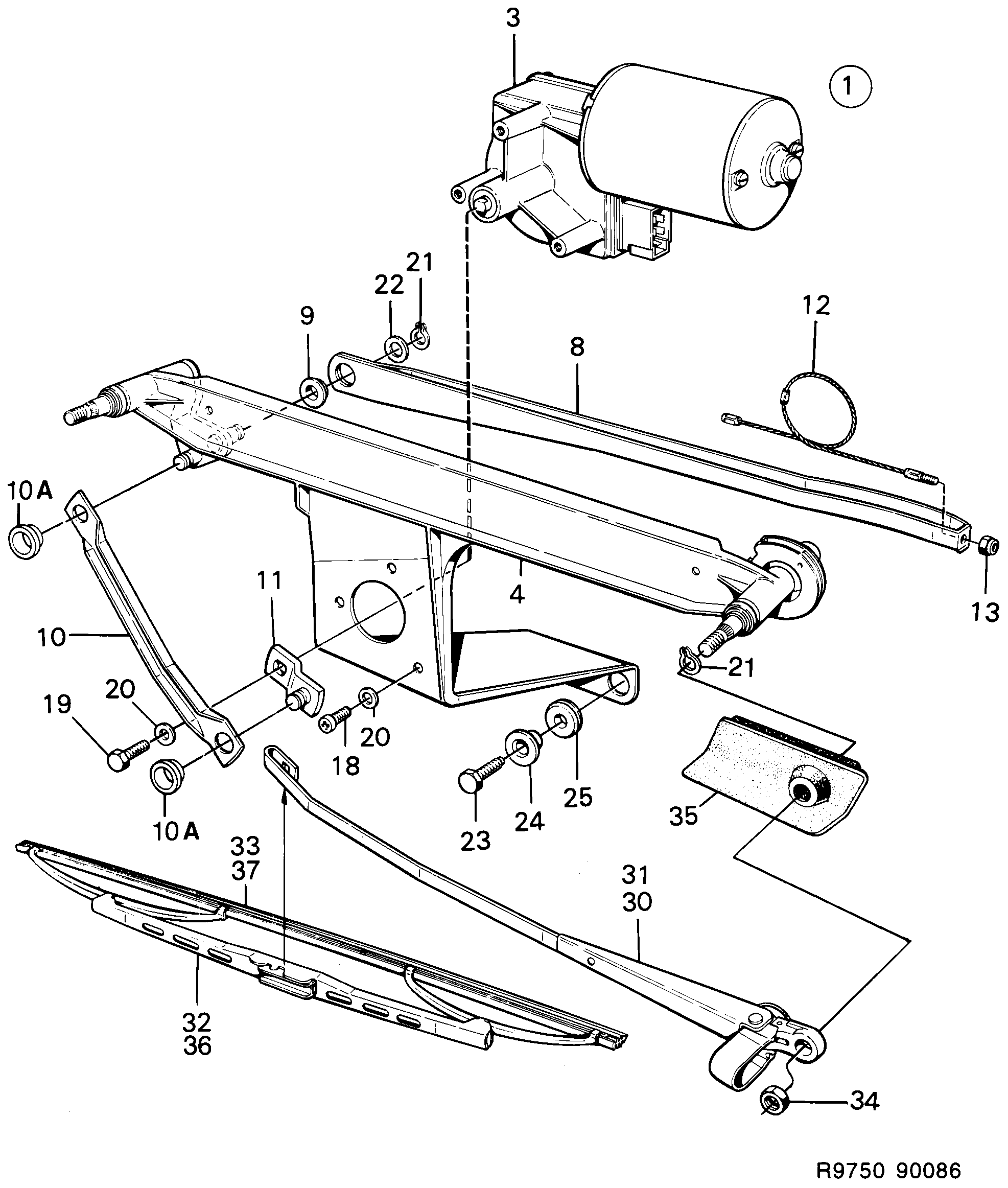

Saab 900 Windshield wiper diagram

Pos	Article	Part No.
1	Electrical motor	8544462
3	Drive gear	8544686
4	Beam	8544470
4	Beam	8558124
8	Carrier arm	8544504
8	Carrier arm	8558132
9	Bushing	8504029
10	Connecting rod	8544512
10	Connecting rod	8558140
10A	Bushing	8559320
11	Crank arm	8544520
11	Crank arm	8561466
12	Cable	8544538
13	Lock nut	8074270
18	Screw	8059396
19	Screw	8019895
20	Washer	8029951
21	Retaining ring	7963135
22	Washer	8544702
23	Screw	8558074
24	Sleeve	8544413
25	Bushing	8544421
30	Wiper arm	8553810
31	Wiper arm	8553828
30	Wiper arm	8558090
31	Wiper arm	8558108
30	Wiper arm	9553306
31	Wiper arm	9553314
30	Wiper arm	9559352
31	Wiper arm	9559345
32	Wiper blade	93195927 (replaces 4521209)
32	Wiper blade	4060745
32	Wiper blade	93195930 (replaces 9555202)
33	Profile	8553844
33	Profile	4060752
33	Profile	9555962
34	Nut	8074106
34	Nut	8151235
35	Cover	8544439
35	Cover	8544736
36	Wiper blade kit	8547499
36	Wiper blade kit	8547747
37	Profiled rubber kit	8546319
37	Profiled rubber kit	8547754
37	Profile	8547655
