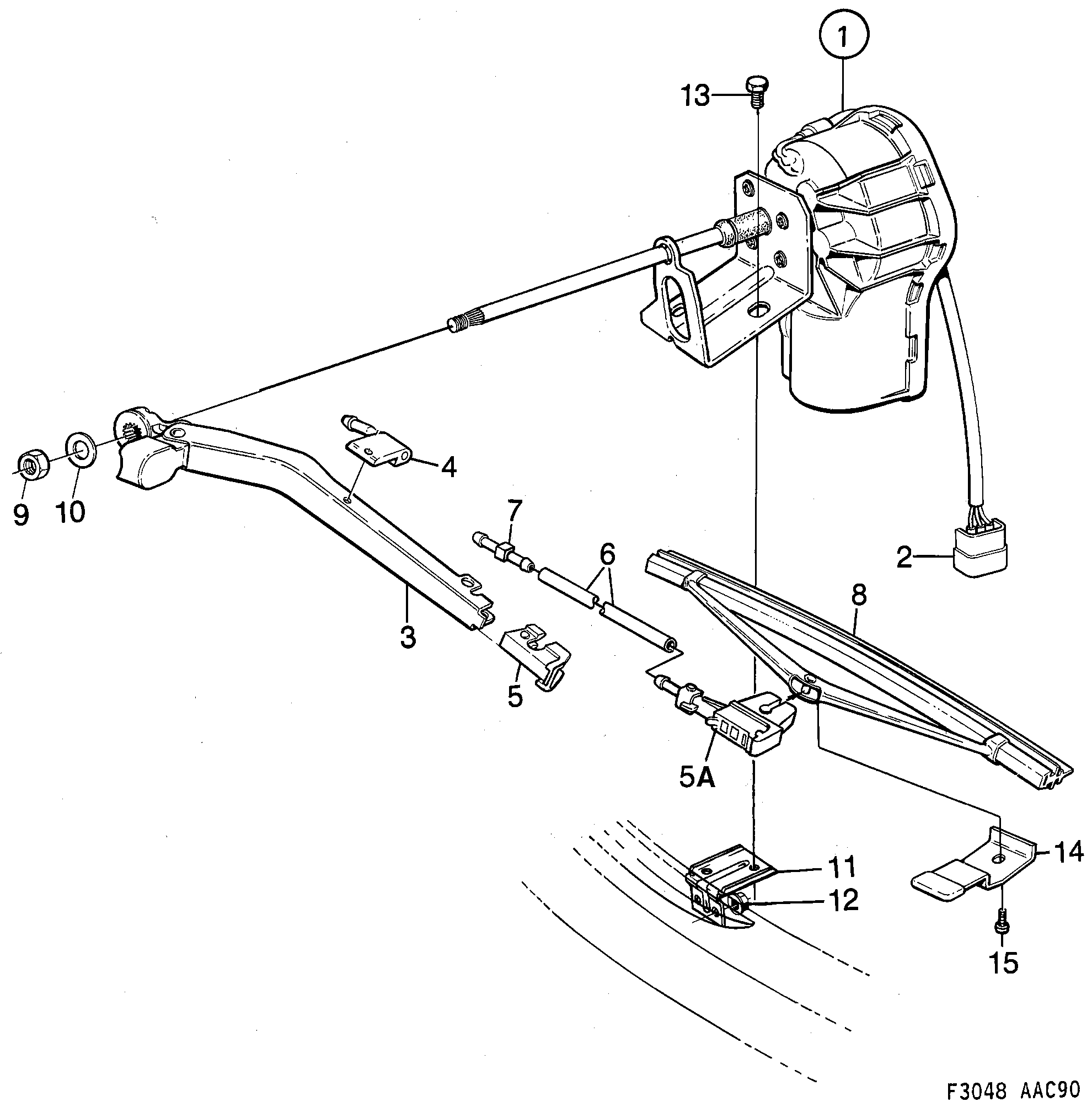

Group 3a Electrical, general, section 650
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wiper motor | 9556200 |
| 1 | Wiper motor | 9556218 |
| 1 | Wiper motor | 4095790 |
| 1 | Wiper motor | 4095816 |
| 1 | Wiper motor | 4093126 |
| 1 | Wiper motor | 4093134 |
| 2 | Connector housing | 9503327 |
| 3 | Wiper arm | 9556291 |
| 3 | Wiper arm | 9556283 |
| 3 | Wiper arm | 9564303 |
| 3 | Wiper arm | 9564295 |
| 4 | Nozzle | 30526009 (replaces 9509126) |
| 4 | Nozzle | 30526008 (replaces 9509118) |
| 5 | Adapter | 9558149 |
| 5A | Adapter | 9123225 |
| 5A | Adapter | 9123217 |
| 6 | Hose | 4254603 |
| 7 | Junction pipe | 4014783 |
| 8 | Wiper blade | 30520558 (replaces 9120882) |
| 9 | Nut | 8029548 |
| 10 | Washer | 7972284 |
| 11 | Bracket | 9556242 |
| 12 | Nut | 11900428 (replaces 7971658) |
| 13 | Screw | 8019895 |
| 13 | Screw | 9166273 |
| 14 | Stop, shoulder | 9551219 |
| 15 | Screw | 7922800 |
| Wiper blade kit | 8547408 |
