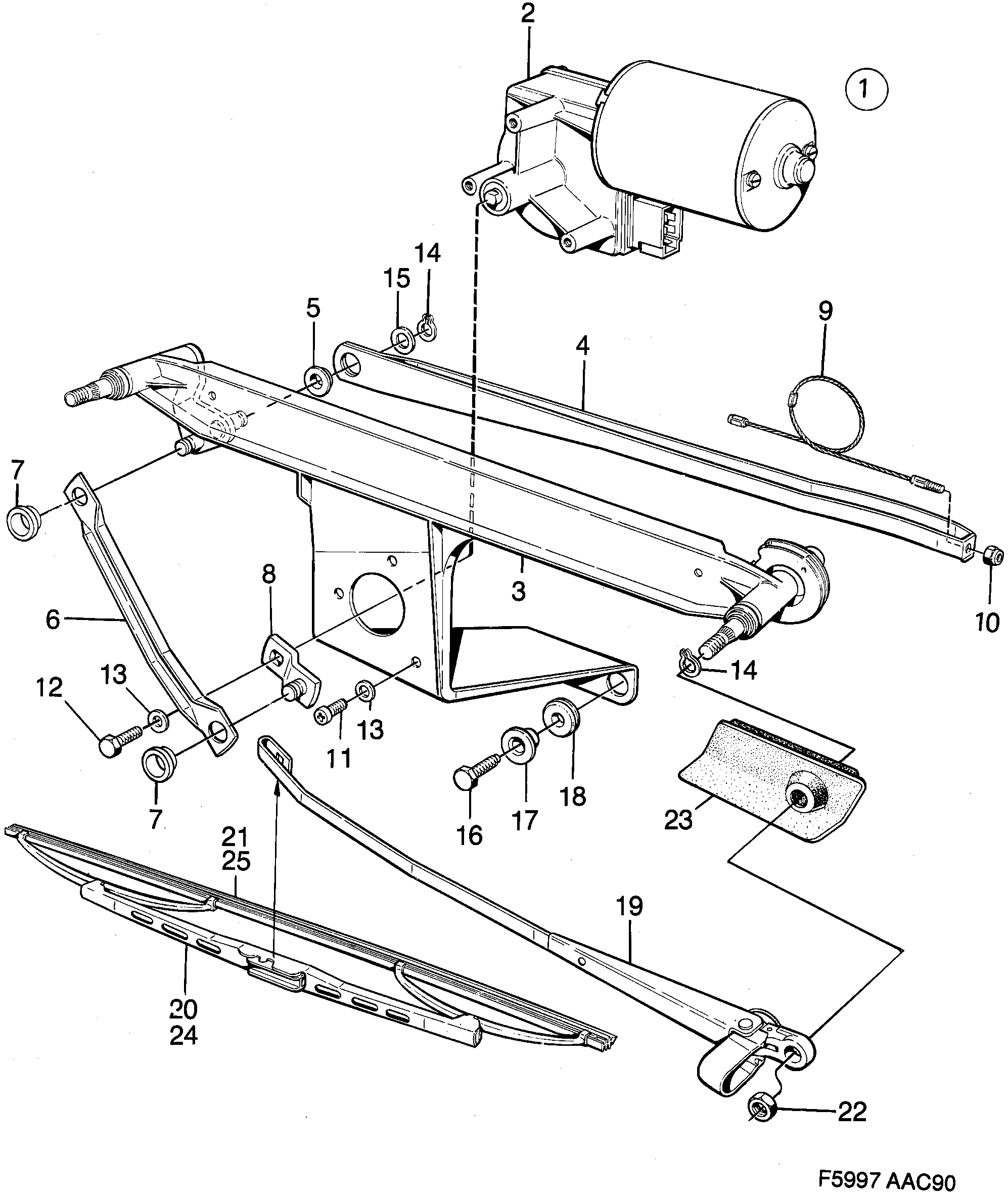

Group 3a Electrical, general, section 620
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electrical motor | 8544462 |
| 2 | Drive gear | 8544686 |
| 3 | Beam | 8544470 |
| 3 | Beam | 8558124 |
| 4 | Carrier arm | 8544504 |
| 4 | Carrier arm | 8558132 |
| 5 | Bushing | 8504029 |
| 6 | Connecting rod | 8544512 |
| 6 | Connecting rod | 8558140 |
| 7 | Bushing | 8559320 |
| 8 | Crank arm | 8544520 |
| 8 | Crank arm | 8561466 |
| 9 | Cable | 8544538 |
| 10 | Lock nut | 8074270 |
| 11 | Screw | 8059396 |
| 12 | Screw | 8019895 |
| 12 | Screw | 9166273 |
| 13 | Washer | 8029951 |
| 13 | Washer | 9166364 |
| 14 | Retaining ring | 7963135 |
| 15 | Washer | 8544702 |
| 16 | Screw | 8558074 |
| 17 | Sleeve | 8544413 |
| 18 | Bushing | 8544421 |
| 19 | Wiper arm | 8553810 |
| 19 | Wiper arm | 8553828 |
| 19 | Wiper arm | 8558090 |
| 19 | Wiper arm | 8558108 |
| 19 | Wiper arm | 9553306 |
| 19 | Wiper arm | 9553314 |
| 19 | Wiper arm | 9559352 |
| 19 | Wiper arm | 9559345 |
| 20 | Wiper blade | 93195927 (replaces 4521209) |
| 20 | Wiper blade | 4060745 |
| 20 | Wiper blade | 4172896 |
| 20 | Wiper blade | 93195930 (replaces 9555202) |
| 21 | Profile | 8553844 |
| 21 | Profile | 4250163 |
| 21 | Profile | 4060752 |
| 21 | Profile | 4250155 |
| 21 | Profile | 9555962 |
| 22 | Nut | 8151235 |
| 23 | Cover | 8544439 |
| 23 | Cover | 8544736 |
| 24 | Wiper blade kit | 8547499 |
| 24 | Wiper blade kit | 8547747 |
| 24 | Wiper blade kit | 8548224 |
| 25 | Profiled rubber kit | 8546319 |
| 25 | Profiled rubber kit | 8548190 |
| 25 | Profiled rubber kit | 8547754 |
| 25 | Profile | 8548208 |
| 25 | Profile | 8547655 |
