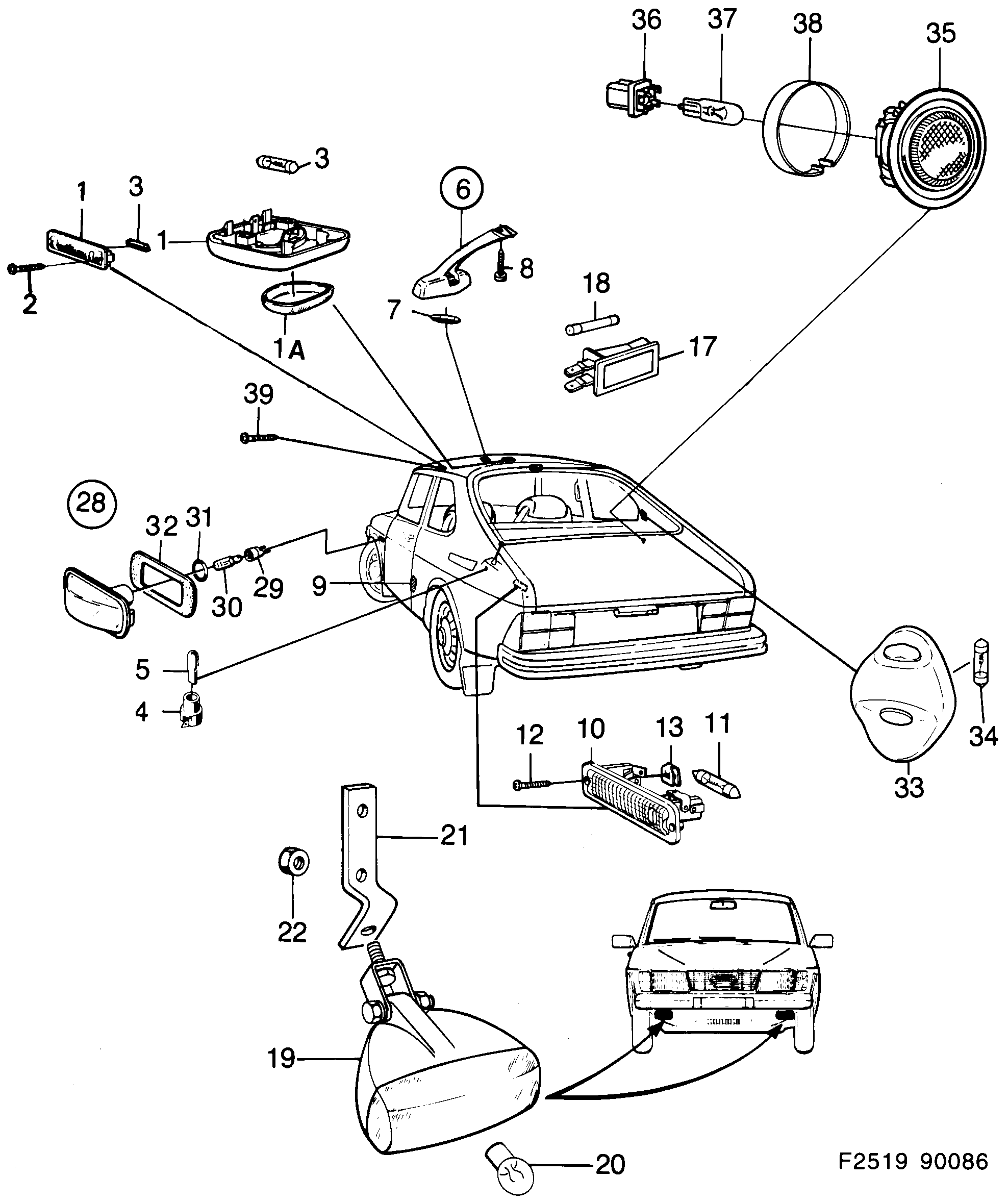

Group 3a Electrical, general, section 610
| Pos | Article | Part No. |
|---|---|---|
| 1 | Interior lighting | 8547580 |
| 1 | Lamp | 8518367 |
| 1 | Dome lamp | 9512252 |
| 1 | Dome lamp | 4060398 |
| 1A | Lamp lens | 9503152 |
| 1A | Lamp lens | 4060406 |
| 2 | Screw | 7970346 |
| 3 | Bulb | 93190936 (replaces 8501264) |
| 4 | Bulb socket | 8509697 |
| 5 | Bulb | 93190474 (replaces 8500613) |
| 6 | Lamp | 8506263 |
| 6 | Lamp | 9554411 |
| 7 | Bulb | 7084197 |
| 8 | Screw | 8059248 |
| 8 | Screw | 7975329 |
| 9 | Reflector tag | 8583593 |
| 10 | Lamp | 8577801 |
| 13 | Clip nut | 7972771 |
| 17 | Lighting | 9509639 |
| 17 | Lighting | 9569948 |
| 19 | Position lamp | 8561409 |
| 20 | Bulb | 7154727 |
| 21 | Bracket | 8561375 |
| 21 | Bracket | 8561383 |
| 22 | Nut | 8074106 |
| 22 | Nut | 8151235 |
| 28 | Side light | 9124132 (replaces 9521832) |
| 28 | Side light | 9124132 |
| 28A | Clip | 4830113 |
| 29 | Bulb socket | 9521857 |
| 30 | Bulb | 93190471 (replaces 9512880) |
| 31 | Gasket | 4484259 (replaces 9512898) |
| 32 | Seal | 9124140 (replaces 9512906) |
| 32 | Seal | 9124140 |
| 33 | Lamp | 9500273 |
| 34 | Bulb | 9506080 |
| 35 | Lamp | 9823683 |
| 36 | Bracket | 9597006 |
| 38 | Clamp | 9824939 |
| 39 | Screw | 7922636 |
| Interior lamp kit | 8547606 |
