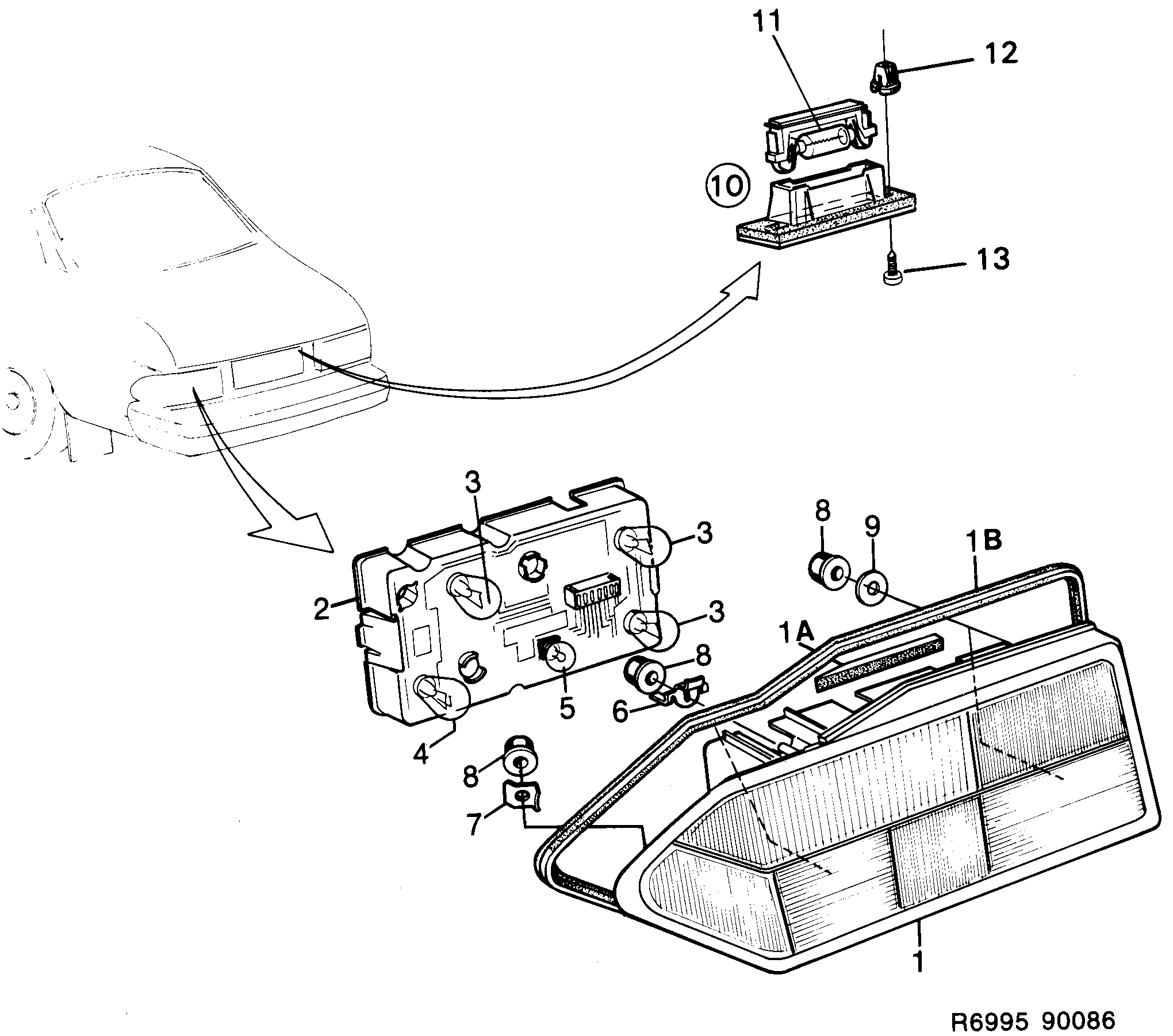

Group 3a Electrical, general, section 550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tail light | 8585853 |
| 1 | Tail light | 8585861 |
| 1 | Tail light | 8585879 |
| 1 | Tail light | 8585887 |
| 1 | Tail light | 8585895 |
| 1 | Tail light | 8585903 |
| 1A | Seal | 8574535 |
| 1A | Seal | 8574543 |
| 1B | Seal | 8577785 |
| 2 | Rear section | 8585978 |
| 2 | Rear section | 8585986 |
| 3 | Bulb | 93169011 (replaces 7154719) |
| 3 | Bulb | 8535692 |
| 4 | Bulb | 93190467 (replaces 8537672) |
| 4 | Bulb | 8532756 |
| 5 | Bulb | 7154727 |
| 5 | Bulb | 8552325 |
| 6 | Bracket | 8566416 |
| 7 | Bracket | 8566424 |
| 8 | Nut | 92150136 (replaces 7973365) |
| 9 | Washer | 92153032 (replaces 7916489) |
| 10 | Lamp | 8567653 |
| 11 | Bulb | 7084197 |
| 12 | Clip | 4013165 (replaces 9236589) |
| 12 | Clip | 4013165 |
| 13 | Screw | 7922230 |
