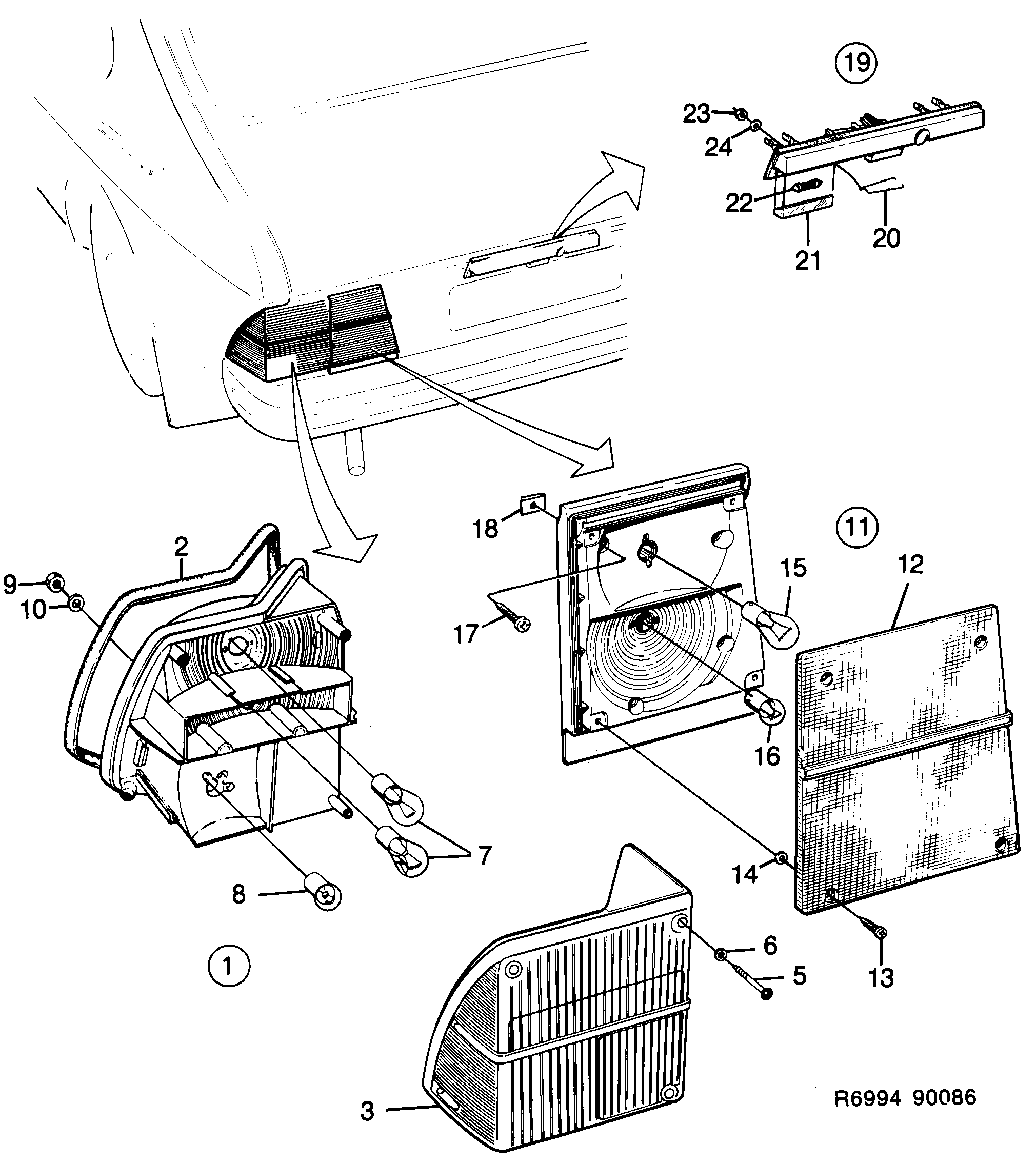

Group 3a Electrical, general, section 520
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tail light | 8585333 |
| 1 | Tail light | 8585341 |
| 1 | Tail light | 8585358 |
| 1 | Tail light | 9122847 (replaces 8585366) |
| 2 | Seal | 8561284 |
| 3 | Lens | 30520607 (replaces 8585416) |
| 3 | Lens | 9123001 (replaces 8585424) |
| 3 | Lens | 8585432 |
| 3 | Lens | 9123027 (replaces 8585440) |
| 5 | Screw | 7974025 |
| 6 | Washer | 8560591 |
| 7 | Bulb | 93169011 (replaces 7154719) |
| 7 | Bulb | 8535692 |
| 8 | Bulb | 93190467 (replaces 8537672) |
| 8 | Bulb | 8532756 |
| 9 | Nut | 8151227 (replaces 8029555) |
| 9 | Nut | 8151227 |
| 10 | Washer | 8029951 |
| 11 | Lamp | 8585374 |
| 11 | Lamp | 4060679 |
| 11 | Lamp | 8585382 |
| 11 | Lamp | 4060687 |
| 11 | Lamp | 8585390 |
| 11 | Lamp | 4060695 |
| 11 | Lamp | 8585408 |
| 11 | Lamp | 4060703 |
| 12 | Lens | 8585457 |
| 12 | Lens | 8585465 |
| 12 | Lens | 8585473 |
| 12 | Lens | 8585481 |
| 16 | Bulb | 7154727 |
| 17 | Screw | 7977960 (replaces 7922388) |
| 18 | Clip nut | 92150164 (replaces 7972573) |
| 18 | Clip nut | 9427014 |
| 19 | Lighting | 8562126 |
| 19 | Lighting | 4060216 |
| 20 | Spring | 8563918 |
| 21 | Lens | 8563942 |
| 21 | Lens | 4060323 |
| 22 | Bulb | 7084197 |
| 23 | Nut | 8029548 |
| 23 | Nut | 8029548 (replaces 8151219) |
| 24 | Washer | 7088073 |
