Saab 900 1994-1998 Headlamp

Group 3a Electrical, general, section 480

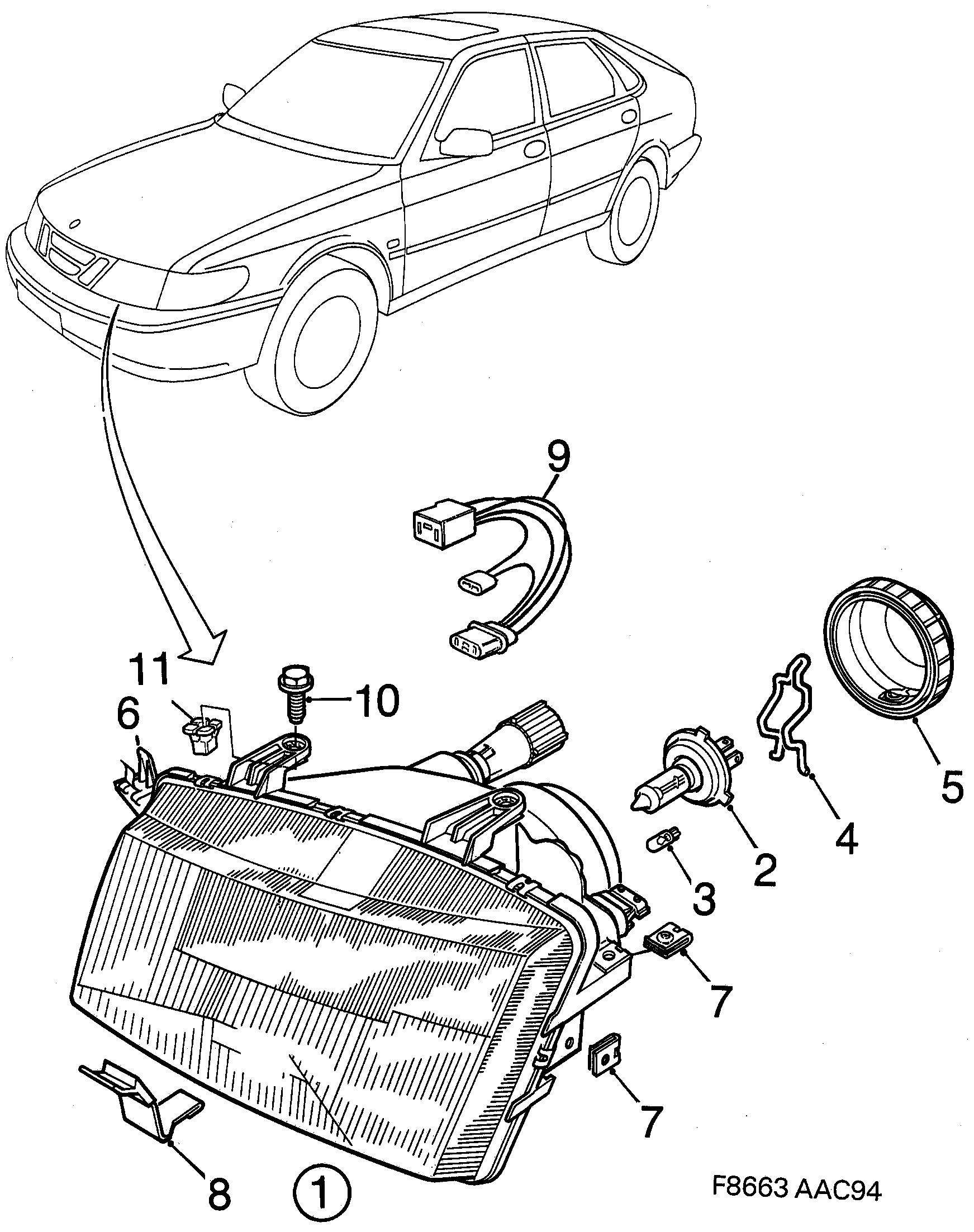

Saab 900 Headlamp diagram

Pos	Article	Part No.
1	Headlamp	4240271
1	Headlamp	4240289
1A	Headlamp lens	5288998
	Headlamp lens	5288998 (replaces 4468070)
	Assembly instruction	5288949
1A	Headlamp lens	5289004
	Headlamp lens	5289004 (replaces 4468088)
2	Bulb	5141775 (replaces 7985047)
2	Bulb	5141775 (replaces 4830816)
3	Bulb	93190471 (replaces 9512880)
4	Spring	4468252
5	Cover	4468153
6	Clip	4468211
7	Clip	4481230
8	Stop	4468260
9	Cable harness	4468245
10	Screw	7973001
10	Screw	7985690
11	Nut	7975261
