Saab 900 1987-1989 Headlamp, sealed beam

Group 3a Electrical, general, section 430

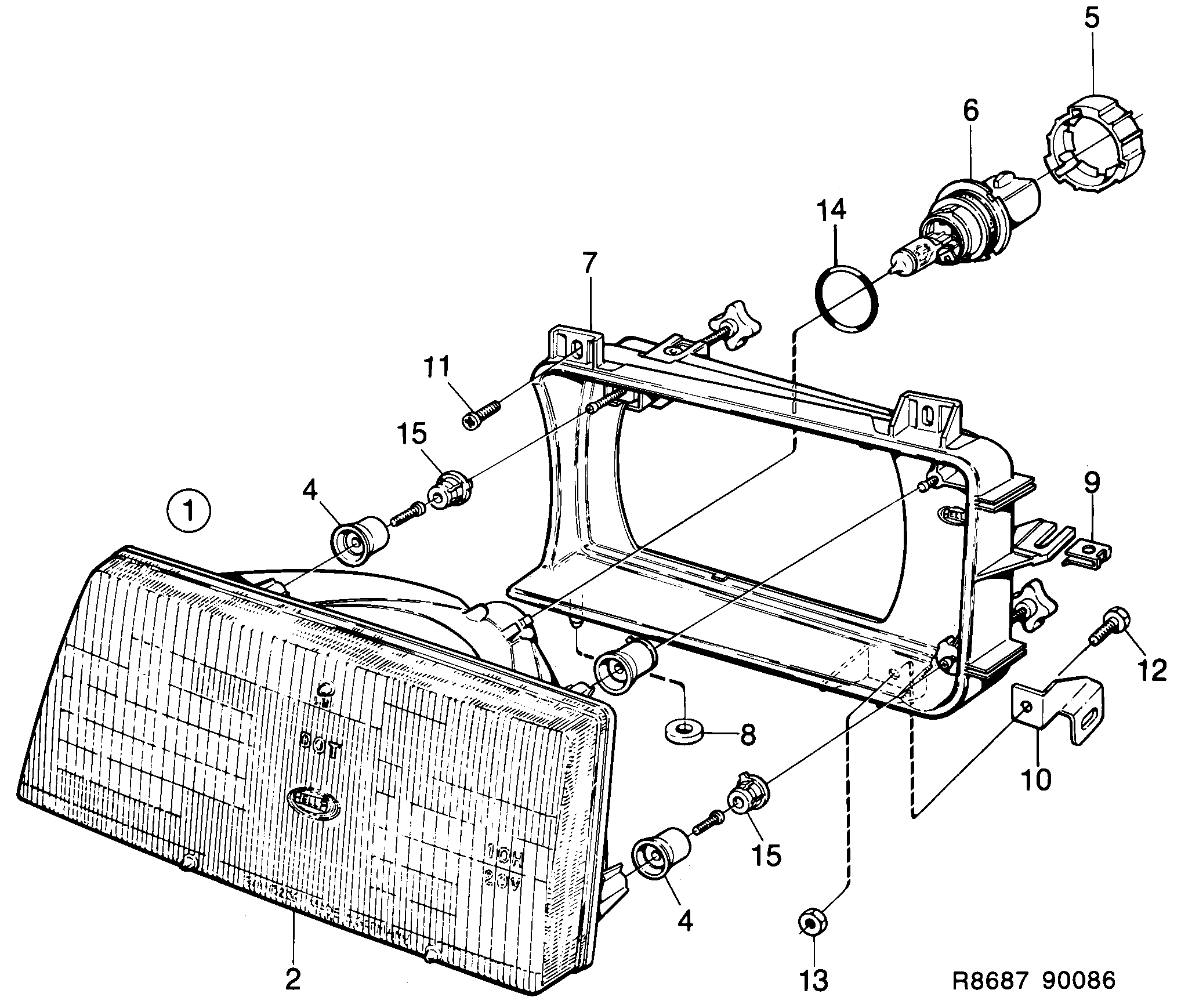

Saab 900 Headlamp, sealed beam diagram
PosArticlePart No.
1Headlamp9556010
1Headlamp9556028
2Headlamp insert9557018
2Headlamp insert9557026
4Clamping sleeve9557158
5Lock ring9512393
6Bulb32000476 (replaces 9512401)
7Attaching frame9557075
7Attaching frame9557083
8Bushing8550840
9Clip8550824
10Attaching bracket9556812
10Attaching bracket9556820
11Screw7973001 (replaces 7973159)
12Screw7969223
13Nut11900428 (replaces 7971658)
14Protection9514811
15Bearing sleeve9512328
