Saab 900 1994-1998 Trionic

Group 3a Electrical, general, section 420

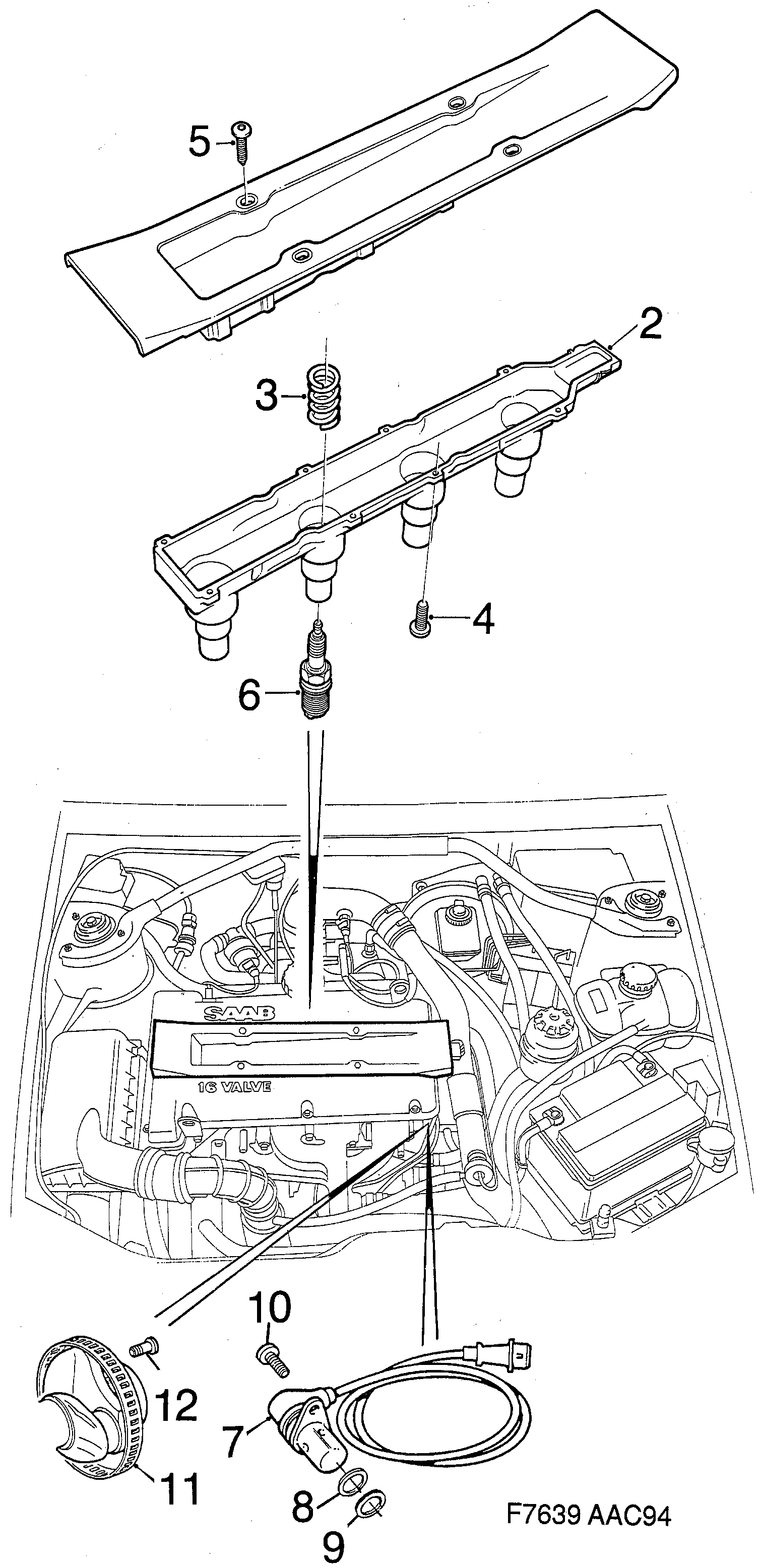

Saab 900 Trionic diagram

Pos	Article	Part No.
1	Ignition cassette	55561132 (replaces 9134404)
1	Ignition discharge module	55561132 (replaces 9178955)
2	Lower section	9167016
3	Spring	9167032
4	Screw	7968316
5	Screw	30551902 (replaces 9145764)
6	Spark plug	32000330
7	Crankshaft position sensor	90451441 (replaces 4227203)
8	Support ring	93166804
9	O-ring	9171117
10	Screw	7971294
11	Aperture disc	55557241 (replaces 9167024)
12	Screw	55557242 (replaces 9145517)
