Saab 900 1990-1993 Headlamp, sealed beam

Group 3a Electrical, general, section 410

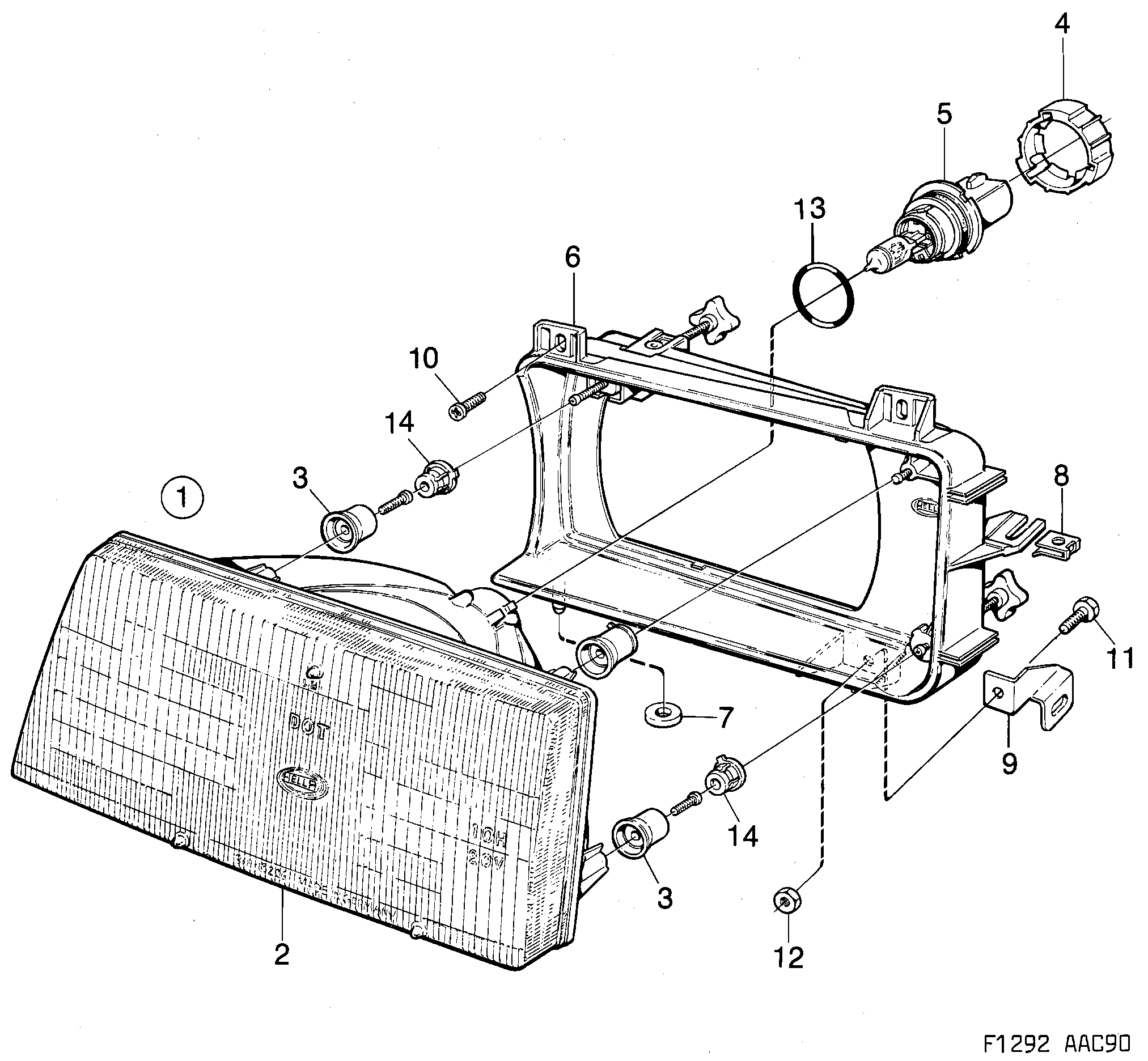

Saab 900 Headlamp, sealed beam diagram

Pos	Article	Part No.
1	Headlamp	9556010
1	Headlamp	9556028
1	Headlamp	4092870
1	Headlamp	4092888
2	Headlamp insert	9557018
2	Headlamp insert	9557026
2	Headlamp insert	4093019
2	Headlamp insert	4093027
3	Clamping sleeve	9557158
4	Lock ring	9512393
5	Bulb	32000476 (replaces 9512401)
6	Attaching frame	9557075
6	Attaching frame	9557083
7	Bushing	8550840
8	Clip	8550824
9	Attaching bracket	9556812
9	Attaching bracket	9556820
10	Screw	7973001 (replaces 7973159)
11	Screw	7969223
12	Nut	11900428 (replaces 7971658)
13	Protection	9514811
14	Bearing sleeve	9512328
