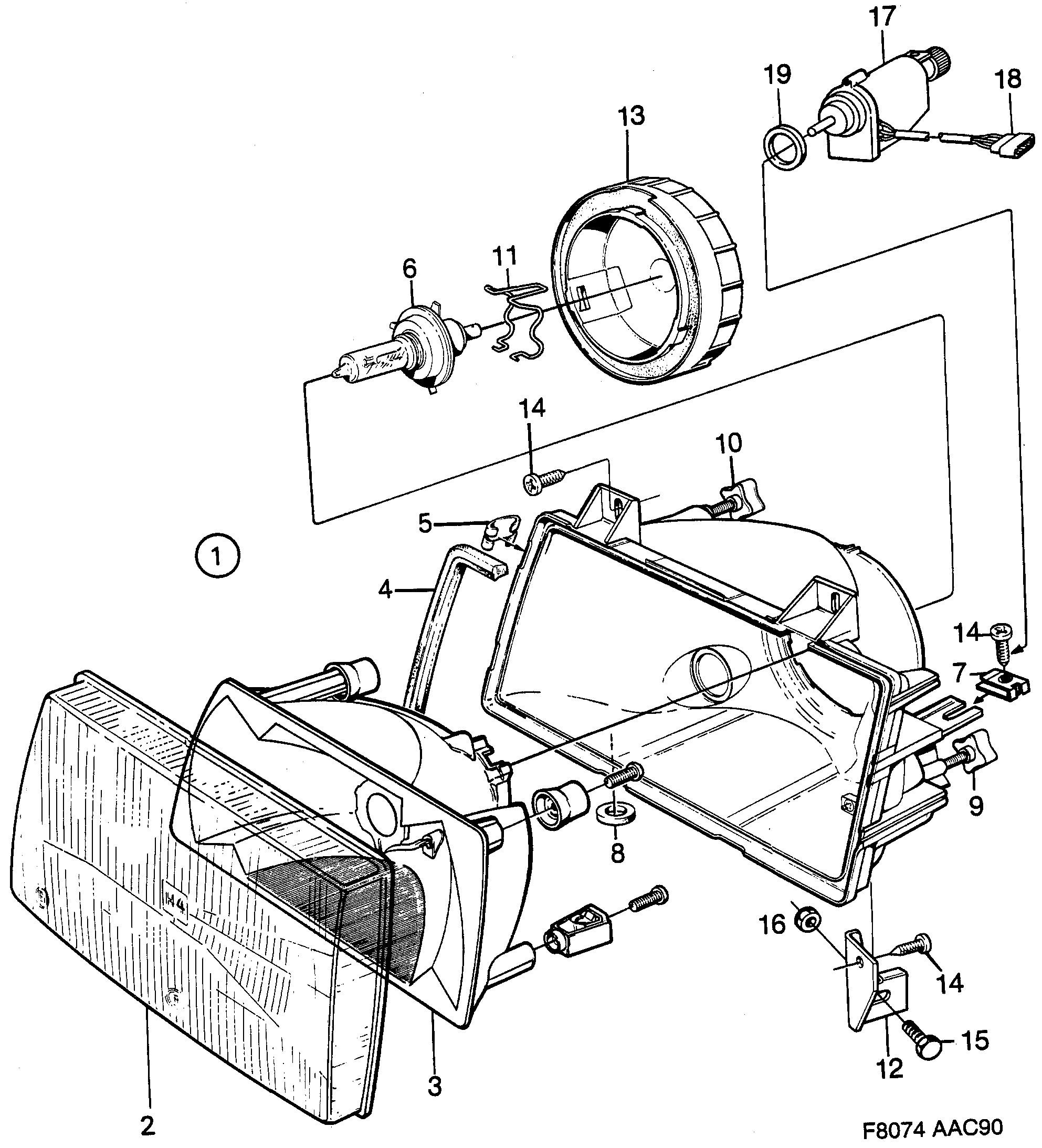

Group 3a Electrical, general, section 380
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 32000360 (replaces 9120130) |
| 1 | Headlamp | 32000361 (replaces 9120148) |
| 1 | Headlamp | 32000362 (replaces 9120155) |
| 1 | Headlamp | 32000363 (replaces 9120163) |
| 2 | Headlamp lens | 9556655 |
| 2 | Headlamp lens | 9556663 |
| 2 | Headlamp lens | 9558032 |
| 2 | Headlamp lens | 9558040 |
| 3 | Reflector | 9120171 |
| 3 | Reflector | 9120189 |
| 3 | Reflector | 30520541 (replaces 9120197) |
| 3 | Reflector | 9120205 |
| 4 | Seal | 9556697 |
| 5 | Clip | 9556705 |
| 6 | Bulb | 93169008 (replaces 8510851) |
| 7 | Clip | 8550824 |
| 8 | Bushing | 8550840 |
| 9 | Setting screw | 9556713 |
| 10 | Setting screw | 9556721 |
| 11 | Spring | 9564352 |
| 12 | Attaching bracket | 9556812 |
| 12 | Attaching bracket | 9556820 |
| 13 | Sealing cover | 8539710 |
| 14 | Screw | 7973001 (replaces 7973159) |
| 15 | Screw | 7969223 |
| 16 | Nut | 11900428 (replaces 7971658) |
| 17 | Electrical motor | 4012738 |
| 18 | Connector housing | 9503327 |
| 19 | Sealing ring | 9529090 |
