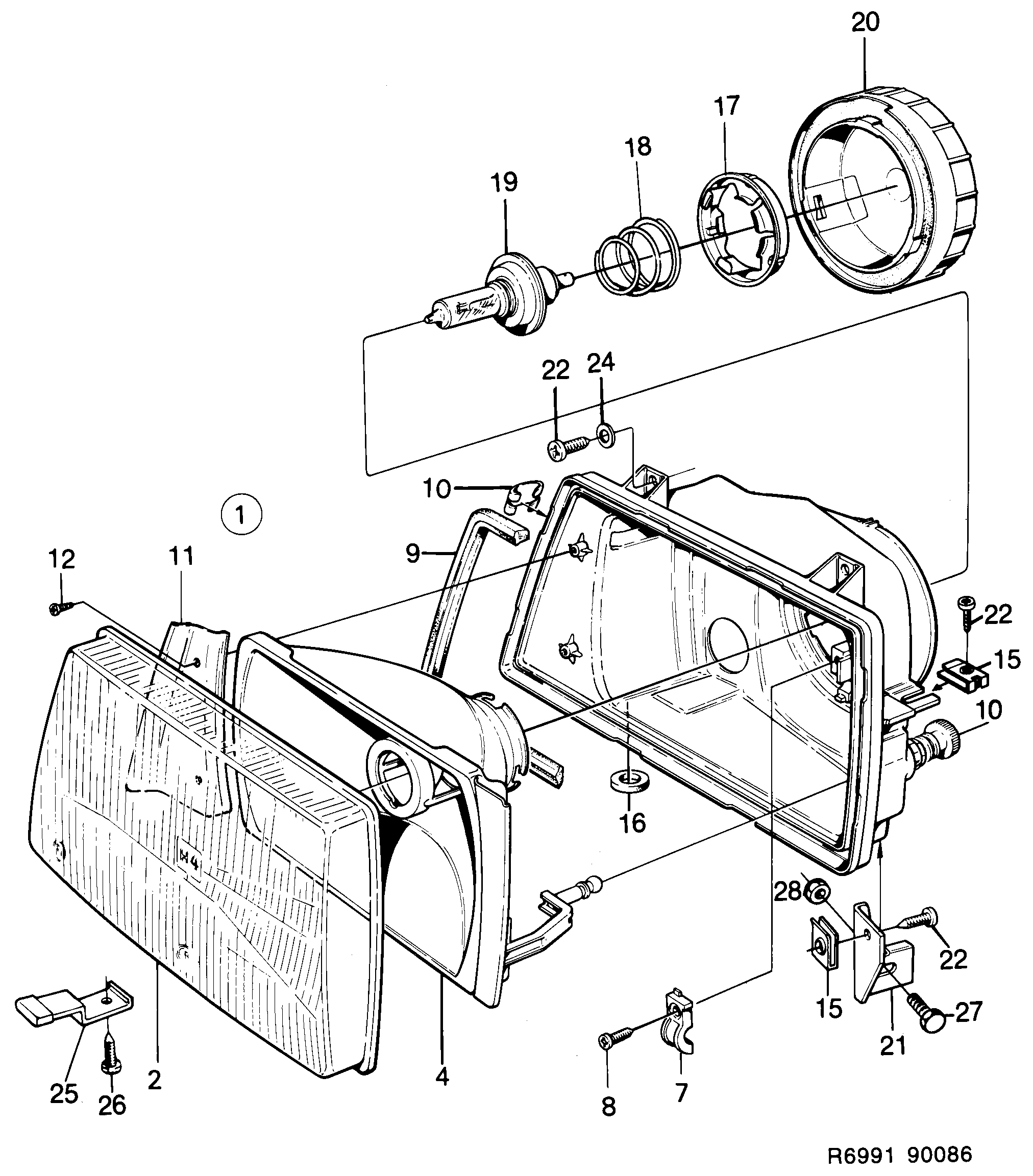

Group 3a Electrical, general, section 340
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 8539595 |
| 1 | Headlamp | 8539603 |
| 1 | Headlamp | 8541575 |
| 1 | Headlamp | 8541583 |
| 2 | Headlamp lens | 8539611 |
| 2 | Headlamp lens | 8539629 |
| 2 | Headlamp lens | 8552390 |
| 2 | Headlamp lens | 8552408 |
| 4 | Reflector | 8550857 |
| 4 | Reflector | 8550865 |
| 4 | Reflector | 9552639 |
| 4 | Reflector | 9552647 |
| 7 | Cap | 8550915 |
| 7 | Cap | 8550949 |
| 8 | Screw | 8550923 |
| 9 | Seal | 8565947 |
| 10 | Clip | 8539702 |
| 11 | Plate | 8550873 |
| 11 | Plate | 8550881 |
| 12 | Screw | 7922727 |
| 15 | Clip | 8550824 |
| 16 | Bushing | 8550840 |
| 17 | Ring | 8510836 |
| 18 | Spring | 8510869 |
| 19 | Bulb | 93169008 (replaces 8510851) |
| 20 | Sealing cover | 8539710 |
| 21 | Attaching bracket | 8550808 |
| 21 | Attaching bracket | 8550816 |
| 22 | Screw | 7922438 |
| 24 | Washer | 8029951 |
| 25 | Stop, shoulder | 8571614 |
| 26 | Screw | 7922909 |
| 27 | Screw | 7969223 |
| 28 | Nut | 11900428 (replaces 7971658) |
