Saab 900 1986-1989 Ignition distributor

Group 3a Electrical, general, section 310

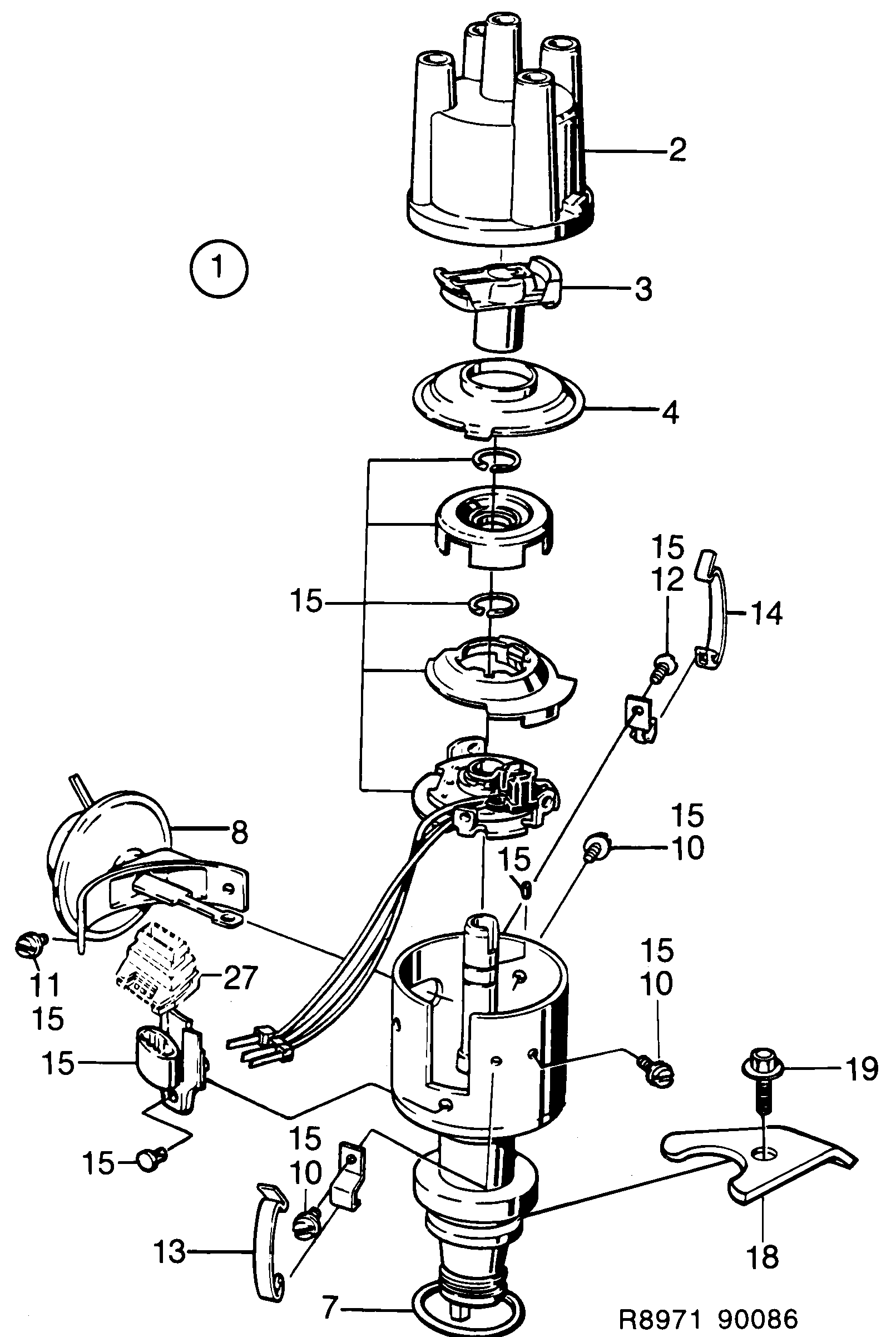

Saab 900 Ignition distributor diagram
PosArticlePart No.
1Ignition distributor7481393 (replaces 7561806)
1Ignition distributor7481393
2Distributor cap7501216
3Rotor7564420
4Cover7519135
7O-ring9176470 (replaces 7519143)
8Regulator7564438
10Screw7519119
11Screw7519127
11Screw30520525 (replaces 9119561)
12Screw7519101
13Spring7519085
14Spring9309956
15Repair kit7588312
18Bracket8362287
19Screw9166323 (replaces 8082950)
26Repair kit7586589
27Connector housing8574097
27Connector housing8593907
