Saab 900 1994-1998 Motronic

Group 3a Electrical, general, section 300

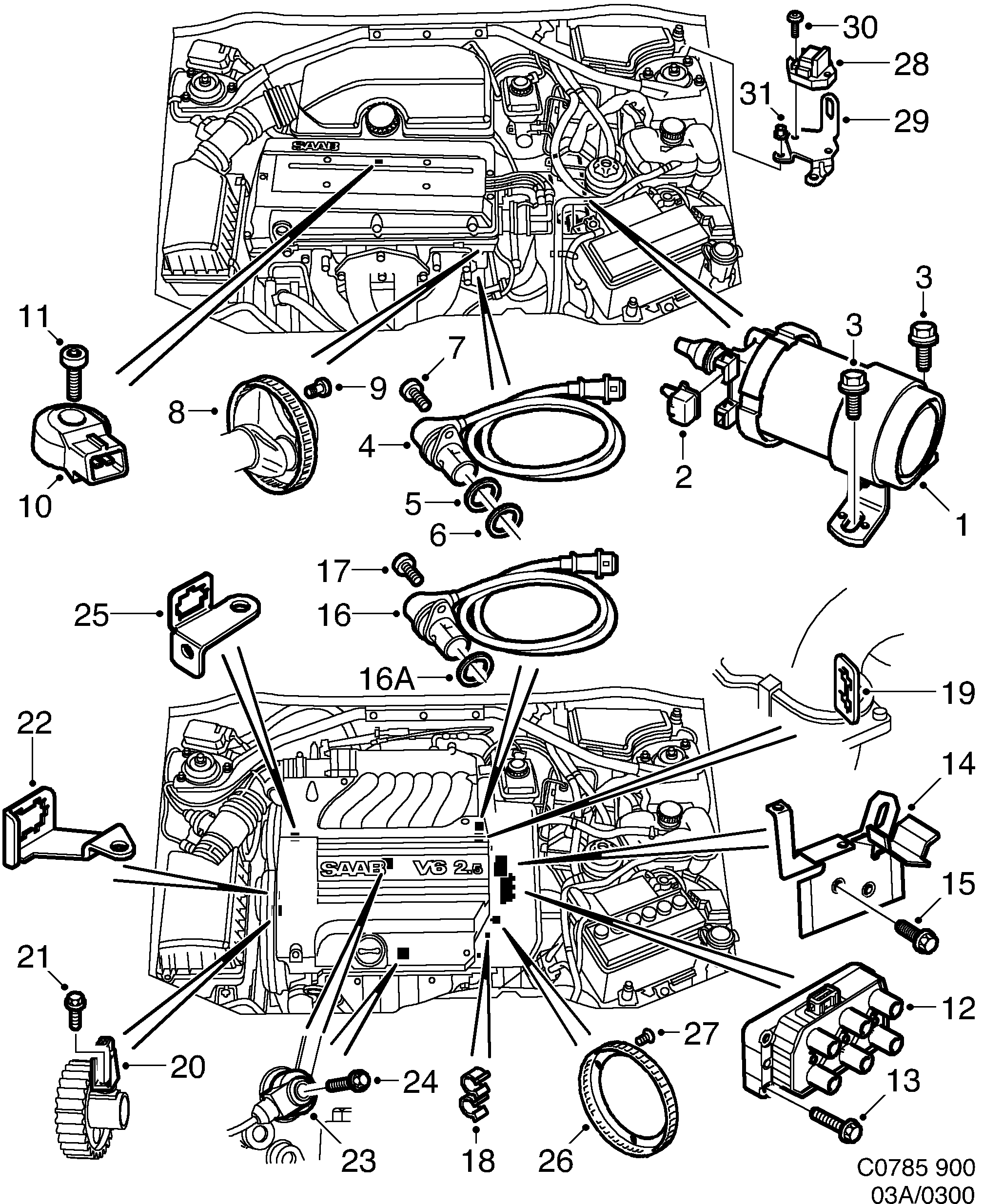

Saab 900 Motronic diagram

Pos	Article	Part No.
1	Ignition coil	30584237 (replaces 4226031)
2	Protecting casing	4394565
3	Hexagon screw	7978661
4	Crankshaft position sensor	90451441 (replaces 4227203)
4	Crankshaft position sensor	55557326 (replaces 9177221)
5	Support ring	93166804
6	O-ring	9171117
7	Screw	7971294
8	Aperture disc	55557241 (replaces 9167024)
9	Screw	55557242 (replaces 9145517)
10	Knock sensor	9142415
10	Knock sensor	4300729
11	Screw	11900367 (replaces 8059800)
11	Hexagon screw	11900367 (replaces 7978216)
12	Ignition coil module	4770046 (replaces 4504536)
12	Ignition coil module	4770210
13	Screw	11093953 (replaces 4502753)
13	Screw	11093953 (replaces 4770020)
14	Bracket	4504478
15	Screw	4504528
16	Crankshaft position sensor	90357481
16	Crankshaft position sensor	91153782 (replaces 4300737)
17	Screw	11093961 (replaces 4500351)
18	Holder	4504338
19	Connector holder	4504312
19	Connector holder	90490177
20	Camshaft position sensor	90357480
20	Camshaft position sensor	90510657 (replaces 4621363)
20	Camshaft position sensor	90510667 (replaces 4770079)
20	Camshaft position sensor	4660452
22	Cable holder	90506099
23	Knock sensor	90511177 (replaces 4504262)
23	Knock sensor	90511177 (replaces 8822595)
24	Screw	11093611 (replaces 4501110)
26	Aperture disc	90469427 (replaces 4501185)
27	Screw	90280051 (replaces 4501193)
28	Accelaration picup	4239216
29	Bracket	4394300
30	Screw	7922370
31	Plastic nut	92152035 (replaces 4087128)
