Saab 900 1990-1993 EZK

Group 3a Electrical, general, section 230

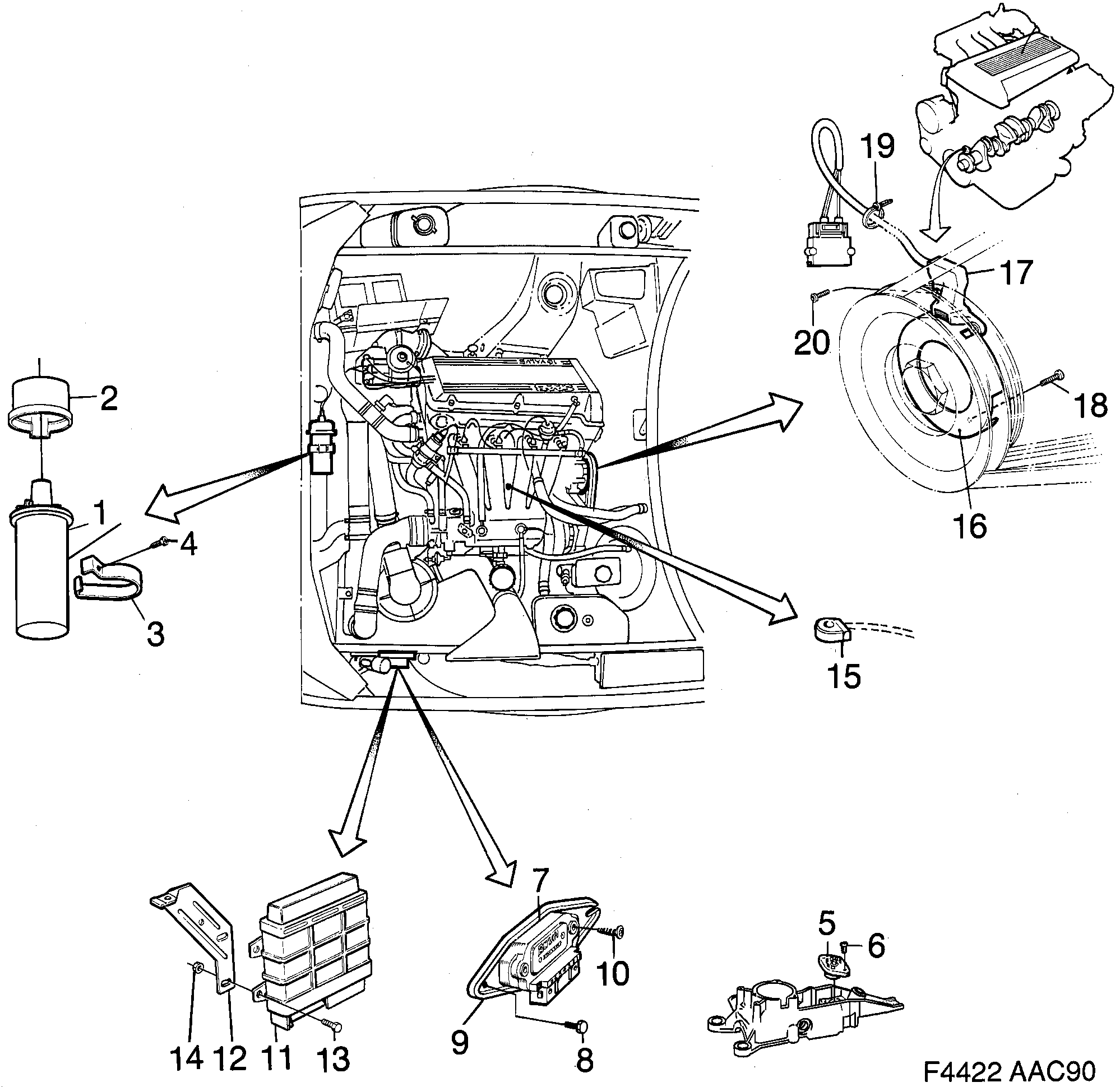

Saab 900 EZK diagram

Pos	Article	Part No.
1	Ignition coil	32000256 (replaces 8573834)
2	Protecting casing	8566374
3	Bracket	8552598
4	Screw	8019945
7	Power unit	7503600
7	Power unit	4023149
7	Power unit	8980534
8	Screw	7922933
8	Screw	8426199
9	Cooling body	8574816
10	Screw	7975519
11	Engine control module	7484504
11	Electronic unit	7872302
11	Electronic unit	9128125
11	Engine control module	7484512
11	Engine control module	7484520
12	Bracket	7525744
13	Screw	8019713
14	Nut	92150136 (replaces 7973365)
16	Aperture disc	9117979
16	Aperture disc	9117201
17	Crankshaft position sensor	7484546
18	Screw	9114455
19	Tie strap	1800259
20	Screw	9127440
