Saab 900 1994-1997 Bosch 120A

Group 3a Electrical, general, section 210

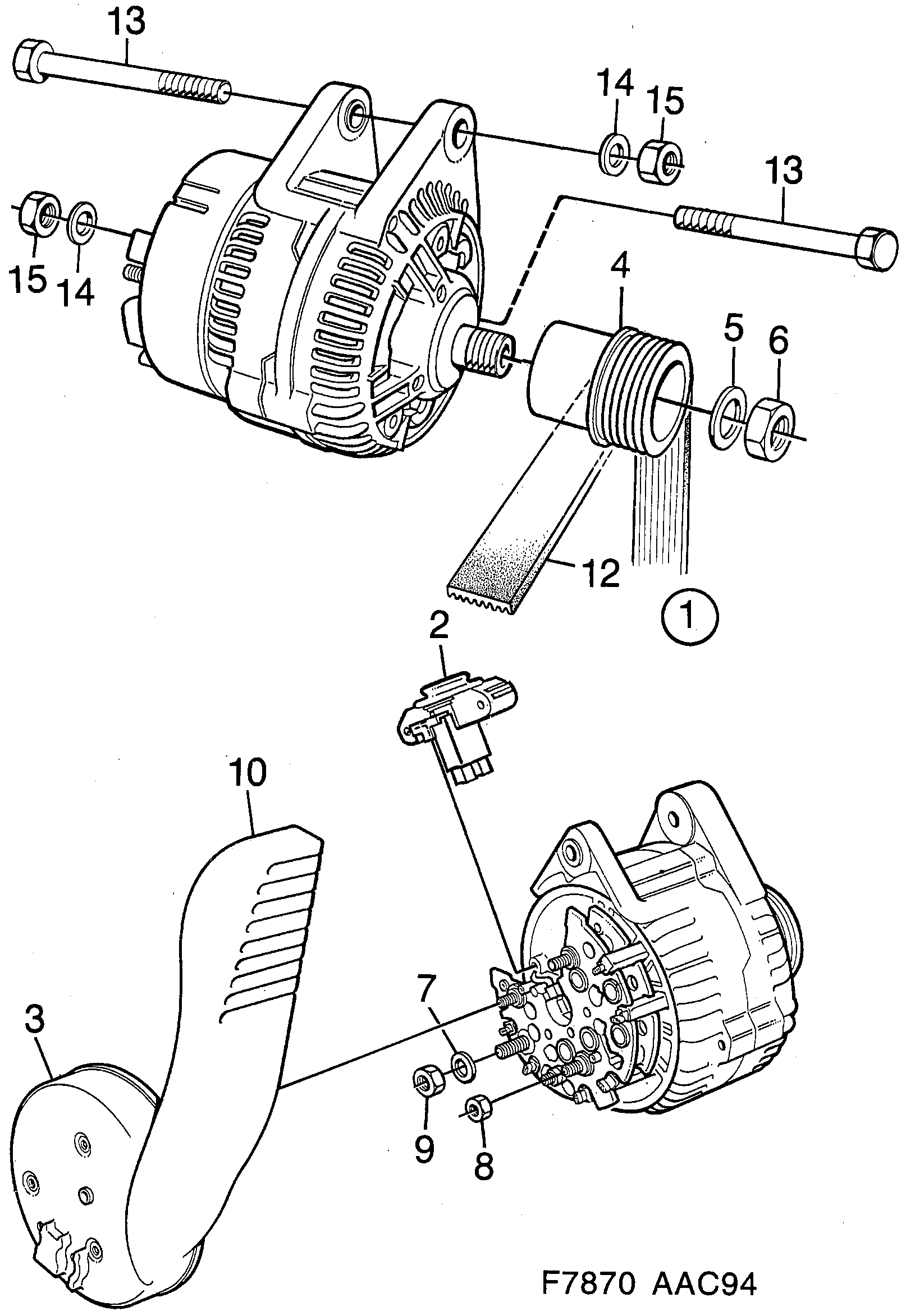

Saab 900 Bosch 120A diagram

Pos	Article	Part No.
1	Generator	5248794 (replaces 4412805)
1	Generator	5248794 (replaces 4739066)
2	Voltage regulator	5246863 (replaces 4466918)
2	Voltage regulator	5246863 (replaces 4737151)
3	Protection	30554020 (replaces 4412821)
4	Pulley	5477807 (replaces 4466900)
5	Washer	4489316
6	Nut	4489308
7	Washer	7311764
8	Nut	32026207 (replaces 7977911)
9	Hexagon nut	11900452 (replaces 7977952)
10	Cover	4412813
11	Screw	11900353 (replaces 7978091)
13	Screw	7979263
14	Washer	8073108
15	Lock nut	92153199 (replaces 8151474)
