Saab 900 1994-1998 Bosch 90A

Group 3a Electrical, general, section 180

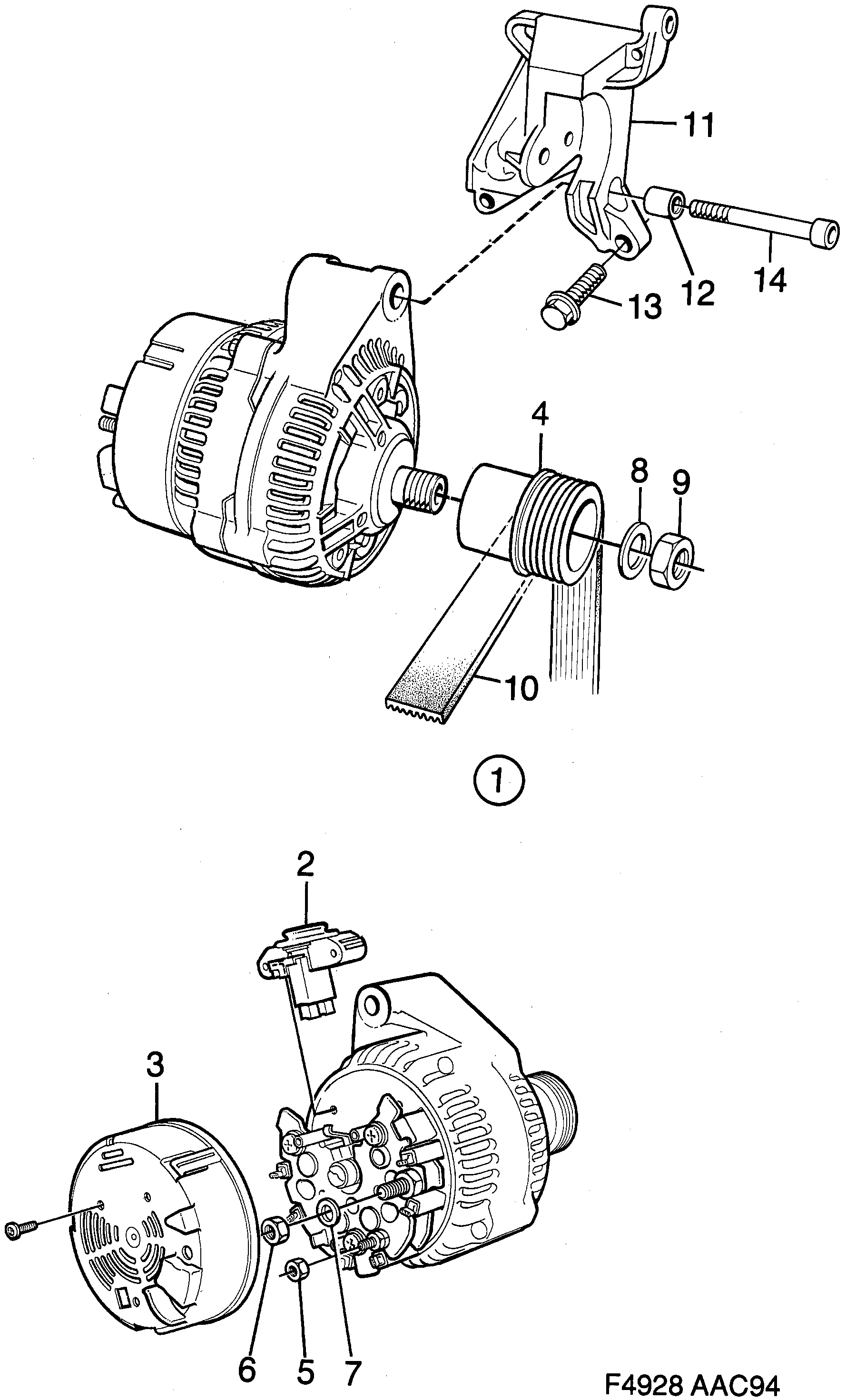

Saab 900 Bosch 90A diagram

Pos	Article	Part No.
1	Generator	5601307 (replaces 4221826)
1	Generator	5601307 (replaces 4734018)
2	Voltage regulator	5246863 (replaces 4409983)
2	Voltage regulator	5246863 (replaces 4737151)
3	Protection	4409991
4	Pulley	12770125 (replaces 4410007)
5	Nut	32026207 (replaces 7977911)
6	Hexagon nut	11900452 (replaces 7977952)
7	Washer	7311764
8	Washer	4489316
9	Nut	4489308
11	Bracket	5171376 (replaces 4356093)
12	Bushing	7593080
13	Hexagon screw	11900367 (replaces 7978216)
14	Screw	8098378
