Saab 900 1997-1997 Motor, transmission

Group 3a Electrical, general, section 1740

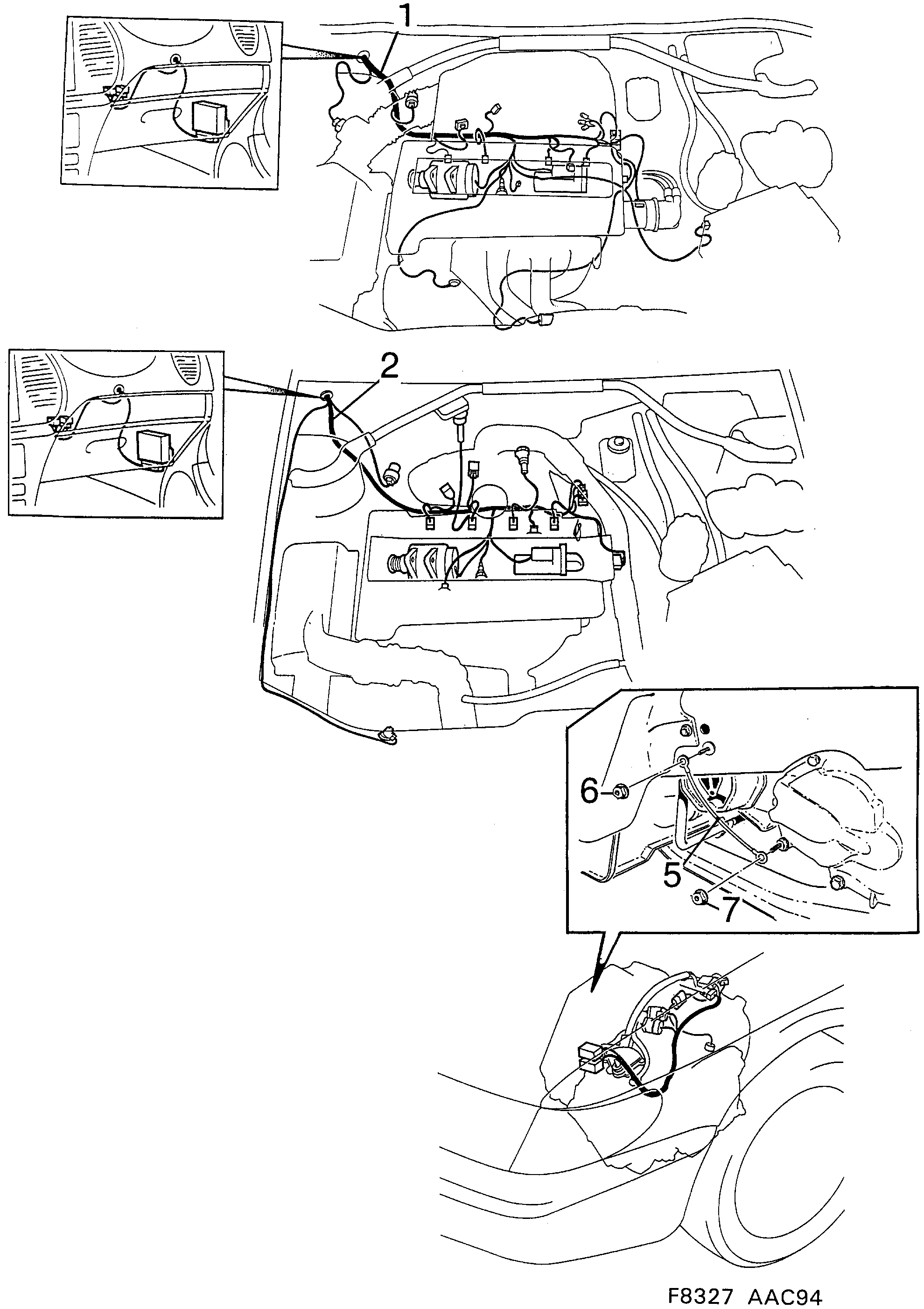

Saab 900 Motor, transmission diagram
PosArticlePart No.
1Cable harness4807855
1Cable harness4807863
1Cable harness4807889
1Cable harness4807897
2Cable harness4738704
2Cable harness4738720
2Cable harness4738712
2Cable harness4738738
2Cable harness4738753
2Cable harness4738761
5Ground cable4665998
6Hexagon nut11900452 (replaces 7977952)
7Nut11900451 (replaces 7977929)
