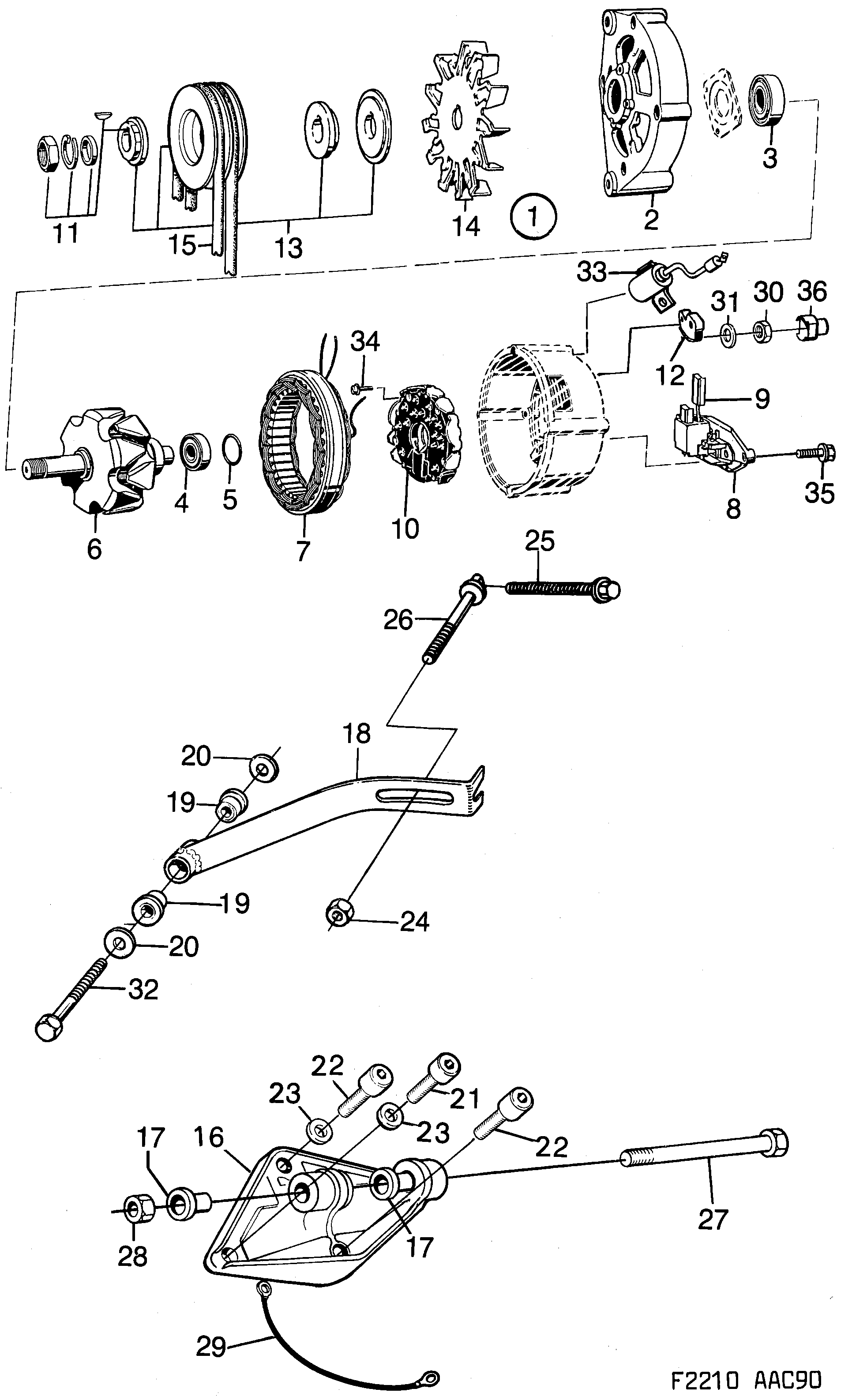

Group 3a Electrical, general, section 170
| Pos | Article | Part No. |
|---|---|---|
| 1 | Generator | 9562752 |
| 2 | Bearing | 9513763 |
| 3 | Ball bearing | 8549545 (replaces 9513128) |
| 4 | Ball bearing | 9513185 |
| 5 | O-ring | 9124355 (replaces 9513193) |
| 6 | Rotor | 9513144 |
| 7 | Stator | 9513169 |
| 8 | Voltage regulator | 90349907 (replaces 8590549) |
| 9 | Brush set | 9515180 |
| 10 | Rectifier | 9513177 |
| 11 | Part kit | 8590994 |
| 12 | Protection | 8593329 |
| 13 | Pulley | 9563412 |
| 14 | Fan disc | 8587248 |
| 15 | V-belt | 93185052 (replaces 7511728) |
| 15 | Belt | 93185052 |
| 16 | Bracket | 7541436 |
| 17 | Rubber bushing | 7541451 |
| 18 | Brace | 7506272 |
| 19 | Rubber bushing | 9354770 |
| 20 | Washer | 7311772 |
| 21 | Screw | 8098089 |
| 22 | Screw | 8098113 |
| 23 | Washer | 92153033 (replaces 8029985) |
| 24 | Nut | 8151243 |
| 25 | Screw | 7399769 |
| 26 | Adjustment screw | 7549488 |
| 27 | Screw | 7979255 |
| 29 | Ground cable | 4111076 |
| 30 | Nut | 8151235 |
| 31 | Washer | 7933849 |
| 31 | Washer | 7311764 |
| 32 | Screw | 9354960 |
| 33 | Capacitor | 9523184 |
| 34 | Screw | 9513599 |
| 35 | Screw | 8571986 |
| 36 | Plastic cover | 9124645 |
