Saab 900 1996-1996 Motor, transmission

Group 3a Electrical, general, section 1530

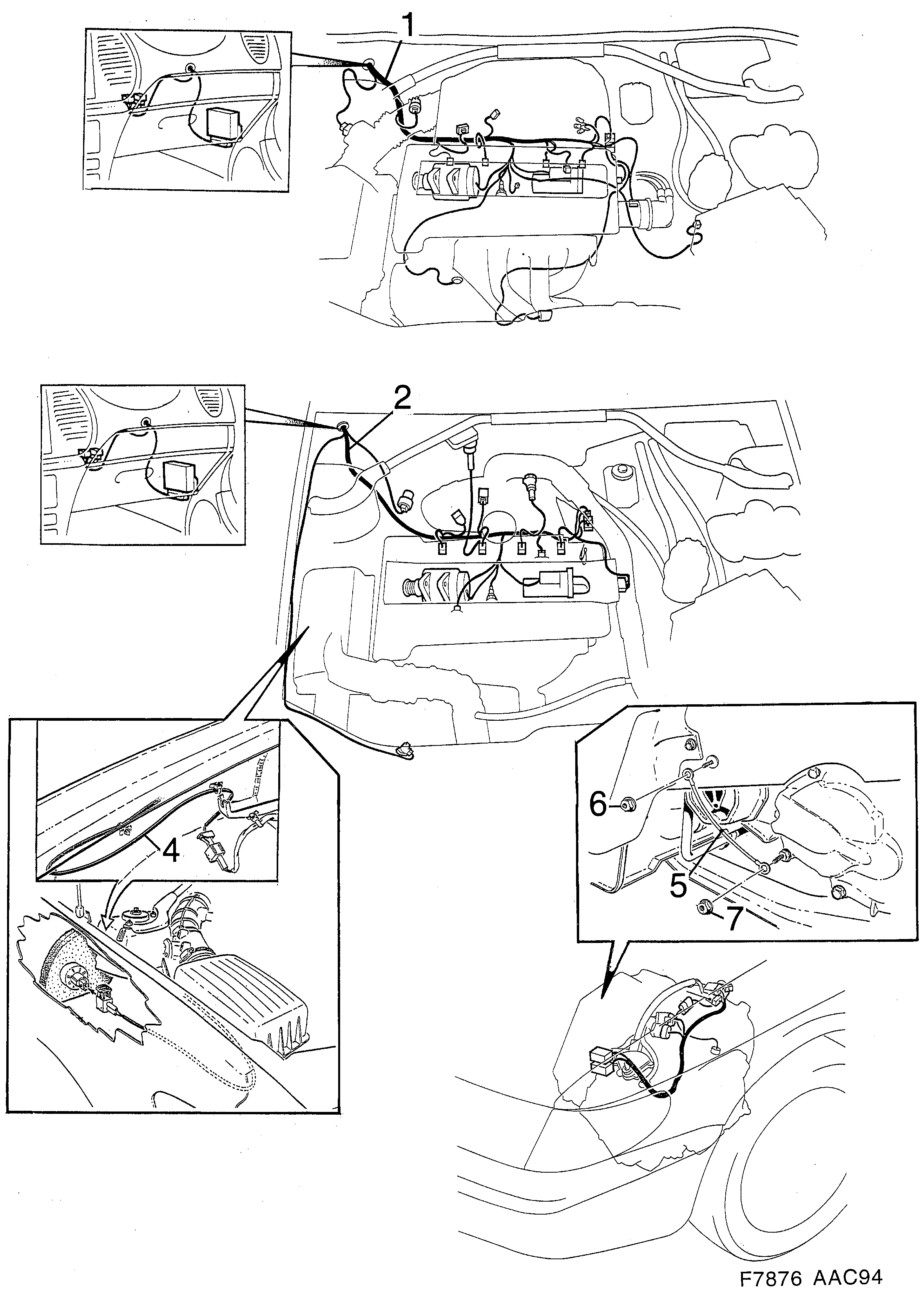

Saab 900 Motor, transmission diagram
PosArticlePart No.
1Cable harness4691523
1Cable harness4691531
1Cable harness4584876
1Cable harness4584884
2Cable harness4691416
2Cable harness4691424
2Cable harness4691473
2Cable harness4691432
2Cable harness4691481
2Cable harness4691440
4Cable harness4669537
5Ground cable4665998
6Hexagon nut11900452 (replaces 7977952)
7Nut11900451 (replaces 7977929)
