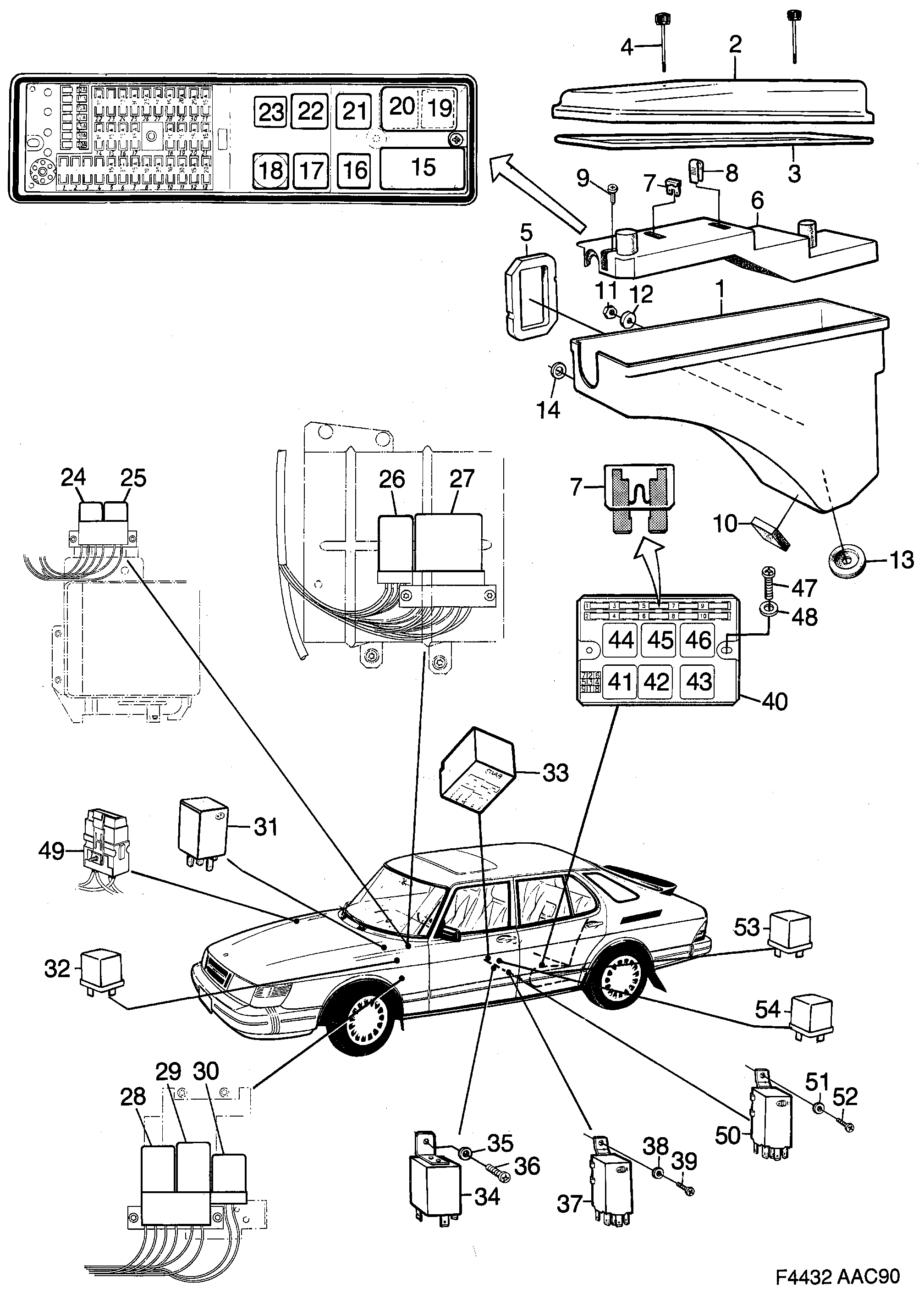

Group 3a Electrical, general, section 1460
| Pos | Article | Part No. |
|---|---|---|
| 1 | Lower section | 8598773 |
| 1 | Lower section | 4117370 |
| 2 | Cover | 4069761 |
| 2 | Cover | 4069787 |
| 2 | Cover | 4173944 |
| 2 | Cover | 4069803 |
| 2 | Cover | 4173969 |
| 3 | Seal | 8553265 |
| 4 | Screw | 8571663 |
| 5 | Seal | 8552671 |
| 6 | Socket | 9559790 |
| 7 | Fuse | 7974637 |
| 7 | Fuse | 7974645 |
| 7 | Fuse | 7974652 |
| 7 | Fuse | 7974660 |
| 7 | Fuse | 7974678 |
| 8 | Fuse clip | 8587636 |
| 9 | Screw | 7922909 |
| 10 | Seal | 8551392 |
| 11 | Nut | 11900428 (replaces 7971658) |
| 12 | Washer | 8537623 |
| 13 | Bushing | 7962004 |
| 14 | Washer | 92153032 (replaces 7916489) |
| 15 | Relay | 4433801 (replaces 9566647) |
| 15 | Relay | 9553546 |
| 16 | Relay | 8522310 |
| 16 | Relay | 9519133 |
| 18 | Relay | 9522061 |
| 19 | Relay | 9550948 |
| 19 | Relay | 9556390 |
| 20 | Relay | 9563339 |
| 21 | Relay | 8536401 |
| 21 | Relay | 9513219 |
| 21 | Relay | 4179925 |
| 22 | Relay | 8572190 |
| 26 | Relay | 9561044 |
| 27 | Relay | 8584732 |
| 27 | Relay | 4069282 |
| 28 | Buzzer | 8573560 |
| 28 | Flasher relay | 8583627 |
| 29 | Relay | 8553463 |
| 31 | Relay | 8599425 |
| 33 | Relay | 30526059 (replaces 9512823) |
| 34 | Relay | 8589319 |
| 35 | Star washer | 92152203 (replaces 7915556) |
| 36 | Screw | 7922891 |
| 37 | Buzzer | 9567017 |
| 38 | Screw | 7922420 |
| 40 | Bracket | 4111480 |
| 41 | Buzzer | 9563313 |
| 42 | Relay | 9515099 |
| 43 | Relay | 9596560 |
| 47 | Screw | 7973001 (replaces 7973159) |
| 47 | Screw | 92153219 (replaces 7922354) |
| 48 | Star washer | 7968506 |
| 49 | Fuse holder | 8564007 |
| 49 | Fuse holder | 9598467 |
| 50 | Relay | 4113163 |
