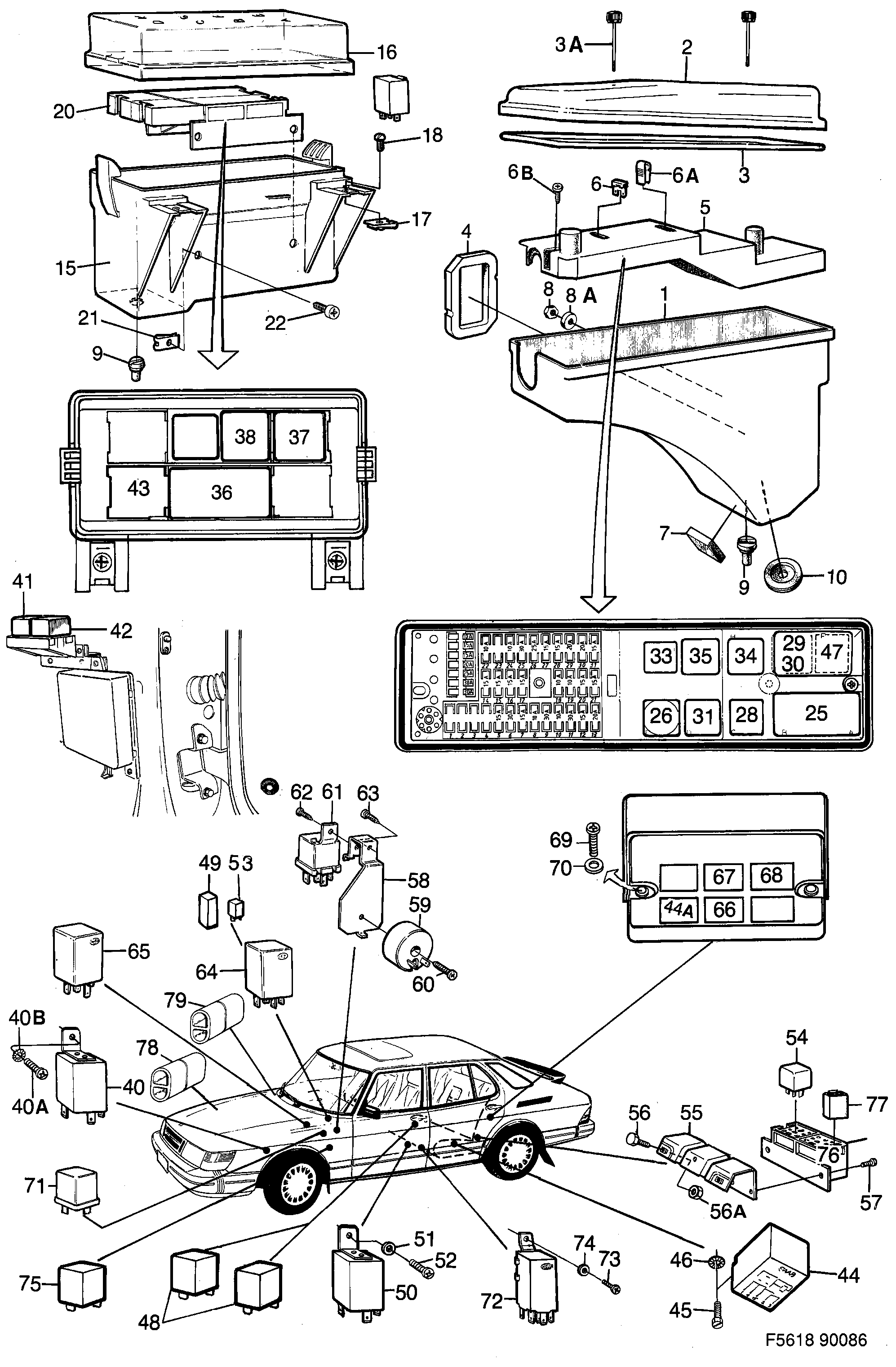

Group 3a Electrical, general, section 1420
| Pos | Article | Part No. |
|---|---|---|
| 1 | Lower section | 8598773 |
| 2 | Cover | 9554866 |
| 2 | Cover | 9559493 |
| 2 | Cover | 9563719 |
| 2 | Cover | 9123258 |
| 2 | Cover | 9554874 |
| 2 | Cover | 9559659 |
| 2 | Cover | 9563735 |
| 2 | Cover | 9554882 |
| 2 | Cover | 9559501 |
| 2 | Cover | 9563750 |
| 2 | Cover | 9123274 |
| 2 | Cover | 9554890 |
| 2 | Cover | 9559667 |
| 2 | Cover | 9563776 |
| 2 | Cover | 9123282 |
| 3 | Seal | 8553265 |
| 3A | Screw | 8571663 |
| 4 | Seal | 8552671 |
| 5 | Socket | 9552969 |
| 5 | Socket | 9559790 |
| 6 | Fuse | 7974637 |
| 6 | Fuse | 7974645 |
| 6 | Fuse | 7974652 |
| 6 | Fuse | 7974660 |
| 6 | Fuse | 7974678 |
| 6A | Fuse clip | 8587636 |
| 6B | Screw | 7922909 |
| 7 | Seal | 8551392 |
| 8 | Nut | 8151227 (replaces 8029555) |
| 8 | Nut | 8151227 |
| 8A | Washer | 8537623 |
| 9 | Draining plug | 7116452 |
| 10 | Bushing | 7962004 |
| 15 | Lower section | 8569196 |
| 16 | Cover | 8571721 |
| 17 | Clip | 8569212 |
| 18 | Screw | 92153219 (replaces 7970601) |
| 19 | Connector housing | 8551665 |
| 19 | Connector housing | 9124199 (replaces 9518747) |
| 19A | Fuse holder | 9519380 |
| 20 | Bracket | 8571390 |
| 21 | Clip nut | 7968001 |
| 22 | Relay | 8568289 |
| 25 | Relay | 9560889 |
| 25 | Relay | 9553546 |
| 25 | Relay | 4433801 (replaces 9566647) |
| 26 | Relay | 9522061 |
| 28 | Relay | 8522310 |
| 28 | Relay | 9519133 (replaces 8588220) |
| 28 | Relay | 9519133 |
| 29 | Relay | 9550948 |
| 30 | Relay | 9512849 |
| 31 | Relay | 9518481 |
| 34 | Relay | 9513219 |
| 35 | Relay | 8572190 |
| 36 | Relay | 8584732 |
| 37 | Relay | 8599425 |
| 38 | Relay | 8568271 |
| 40 | Relay | 8587677 |
| 40 | Relay | 9558073 |
| 40A | Screw | 7922800 |
| 40A | Screw | 7922891 |
| 40B | Star washer | 92152203 (replaces 7915556) |
| 41 | Relay | 8536401 |
| 44 | Relay | 30526059 (replaces 9512823) |
| 45 | Screw | 7973704 |
| 47 | Relay | 8591729 |
| 47 | Relay | 9556390 |
| 48 | Relay | 9596560 |
| 49 | Flasher relay | 8583627 |
| 50 | Relay | 8589319 |
| 53 | Relay | 8553463 |
| 55 | Bracket | 9556184 |
| 56A | Nut | 8029548 |
| 56A | Nut | 8029548 (replaces 8151219) |
| 57 | Screw | 7922735 |
| 58 | Bracket | 9560939 |
| 59 | Resistor | 9558875 |
| 60 | Screw | 7922826 |
| 61 | Relay | 8591455 |
| 61 | Relay | 9563099 |
| 62 | Screw | 7922347 |
| 64 | Relay | 8599433 |
| 64 | Relay | 9561044 |
| 66 | Relay | 9515099 |
| 67 | Relay | 9516071 |
| 67 | Buzzer | 9563313 |
| 70 | Star washer | 7968506 |
| 72 | Buzzer | 8587669 |
| 72 | Buzzer | 9567017 |
| 73 | Screw | 7922420 |
| 75 | Buzzer | 8573560 |
| 76 | Connector housing | 9124199 |
| 78 | Fuse holder | 8564007 |
