Saab 900 1986-1989 Bushing, clamp

Group 3a Electrical, general, section 1360

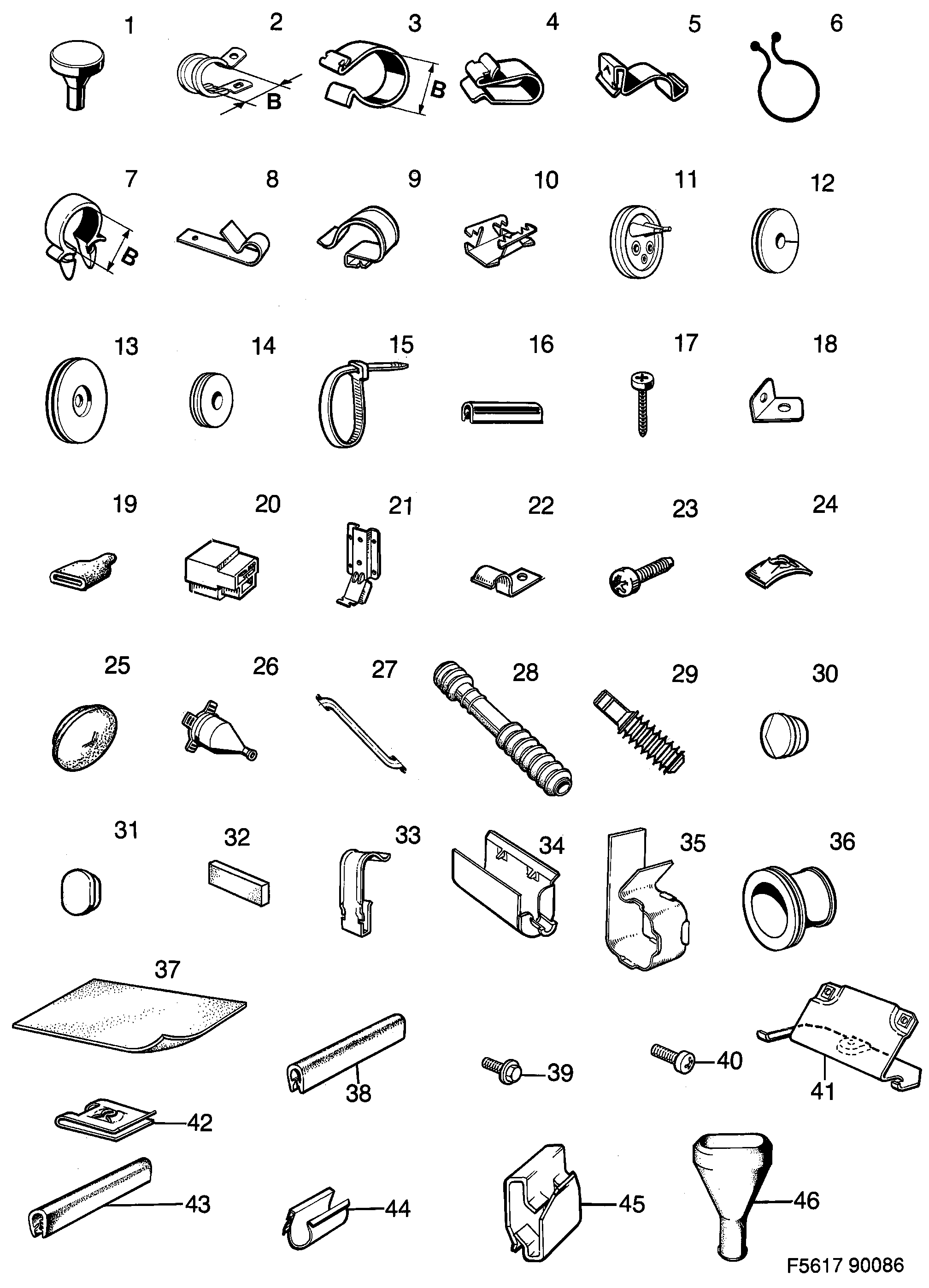

Saab 900 Bushing, clamp diagram

Pos	Article	Part No.
1	Plug	9492455
2	Clamp	8566135
2	Clamp	8566143
2	Clamp	7969348
2	Clamp	7969363
2	Clamp	7969439
2	Clamp	7969454
3	Clip	8553737
3	Clip	8509127
3	Clip	7933443
3	Clamp	7108491
3	Clip	9228149
4	Clamp	7156409
4	Clamp	7951783
5	Clip	8558066
6	Clip	8513574
7	Clip	9365164
7	Clip	8530917
8	Clamp	8528564
10	Clip	7392772
11	Grommet	8552713
12	Protecting bushing	7326093
13	Bushing	7961980
13	Bushing	7309370
13	Bushing	9460742
14	Protecting bushing	7933518
14	Bushing	7933567
15	Tie strap	11900513 (replaces 7971880)
15	Tie strap	7971864
15	Tie strap	7971864 (replaces 8517104)
15	Tie strap	7971906
15	Tie strap	7971872
16	Protecting moulding	8564973 (replaces 8497471)
17	Screw	7922818
17	Screw	7973704
18	Bracket	8552655
19	Protection	8572083
20	Bypass unit	8571317
21	Protecting plate	8569360
22	Clamp	7949084
23	Screw	7922727
24	Clamp	7919574
25	Plug	8204760
26	Cable protection	8552721
27	Grommet	8561433
28	Bellows	8574410
29	Bellows	8574824
30	Plug	7038342
30	Plug	8575599
30	Plug	8241325
30	Plug	7155708
31	Plug	8575581
32	Grommet	8591513
32	Foam plastic	4062048
33	Clamp	8585325
34	Protection	8579575
35	Clamp	8587628
36	Grommet	8587586
36	Grommet	4061719
37	Insulation	9551169
38	Protecting moulding	8278558
38	Protection	8930349
39	Screw	7972144
39	Screw	7973555
40	Screw	8059545
40	Screw	92151821 (replaces 8059552)
40	Screw	8059578
41	Bracket	9553280
42	Spring nut	7933682
43	Protecting moulding	8599565
44	Clamp	7121239
45	Clip	9518515
46	Protection	8579955
46	Protection	8574105
