Saab 900 1986-1989 Bosch 70A

Group 3a Electrical, general, section 130

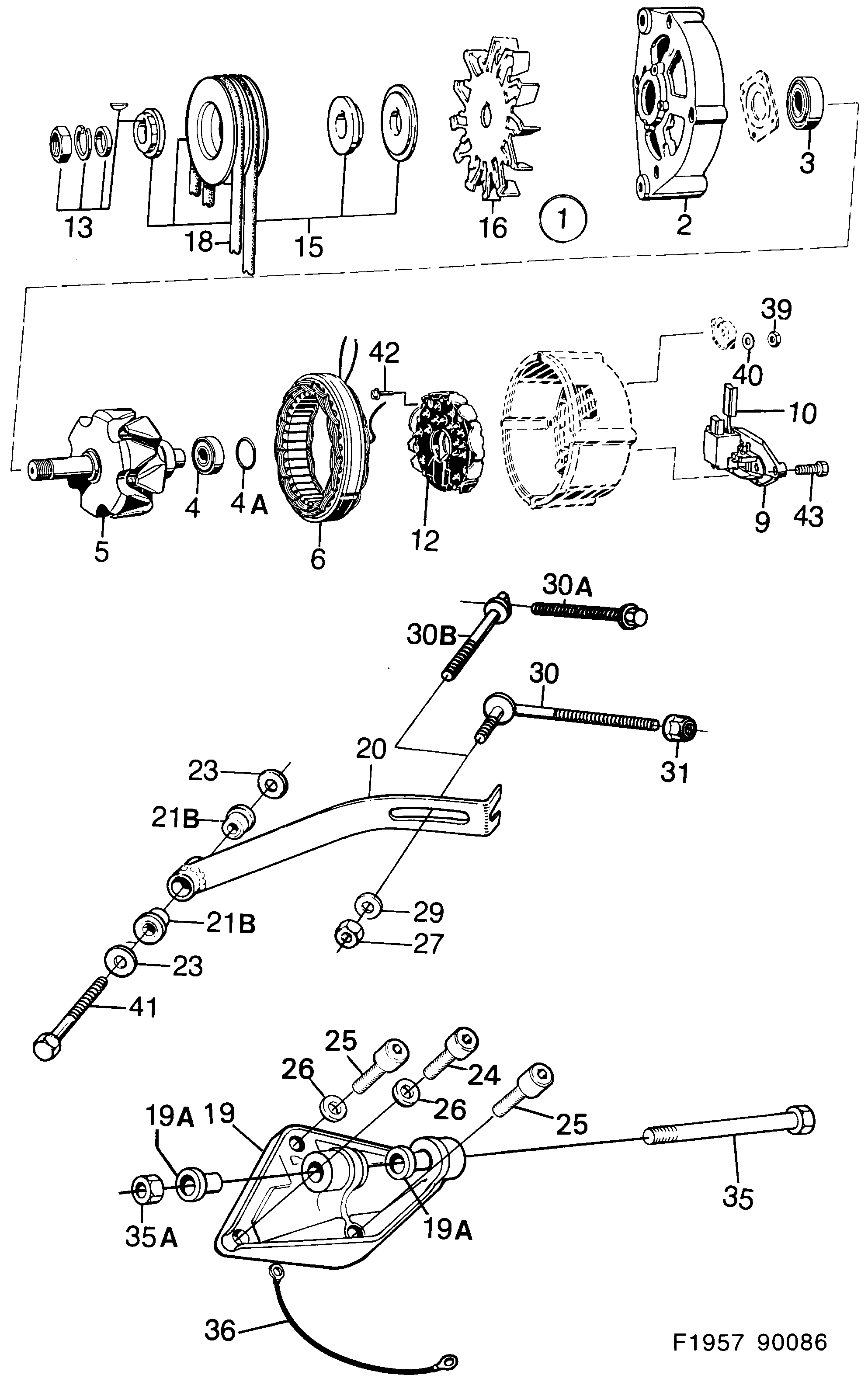

Saab 900 Bosch 70A diagram

Pos	Article	Part No.
1	Generator	9555251
2	Bearing	8591075
3	Ball bearing	8549545 (replaces 8590911)
4	Ball bearing	8572034
4A	O-ring	8565590
5	Rotor	8571887
6	Stator	8571861
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180 (replaces 8572638)
12	Rectifier	9555301
13	Part kit	8590994
15	Pulley	8586075
16	Fan disc	8587248
18	V-belt	93185052 (replaces 7511728)
18	Belt	93185052
19	Bracket	7541436
19A	Rubber bushing	7541451
20	Brace	7506272
21B	Rubber bushing	9354770
23	Washer	7311772
24	Screw	8098089
25	Screw	8098113
26	Washer	92153033 (replaces 8029985)
27	Nut	8151243 (replaces 8029779)
27	Nut	8151243
29	Washer	8073108
30	Adjustment screw	7512106
30A	Screw	7399769
30B	Adjustment screw	7549488
31	Nut	92150143 (replaces 7971922)
35	Screw	8084253
35	Screw	7979255
36	Ground cable	8587222
39	Nut	8074106
39	Nut	8151235
40	Washer	7933849
41	Screw	9354960
42	Screw	9513599
43	Screw	8571986
