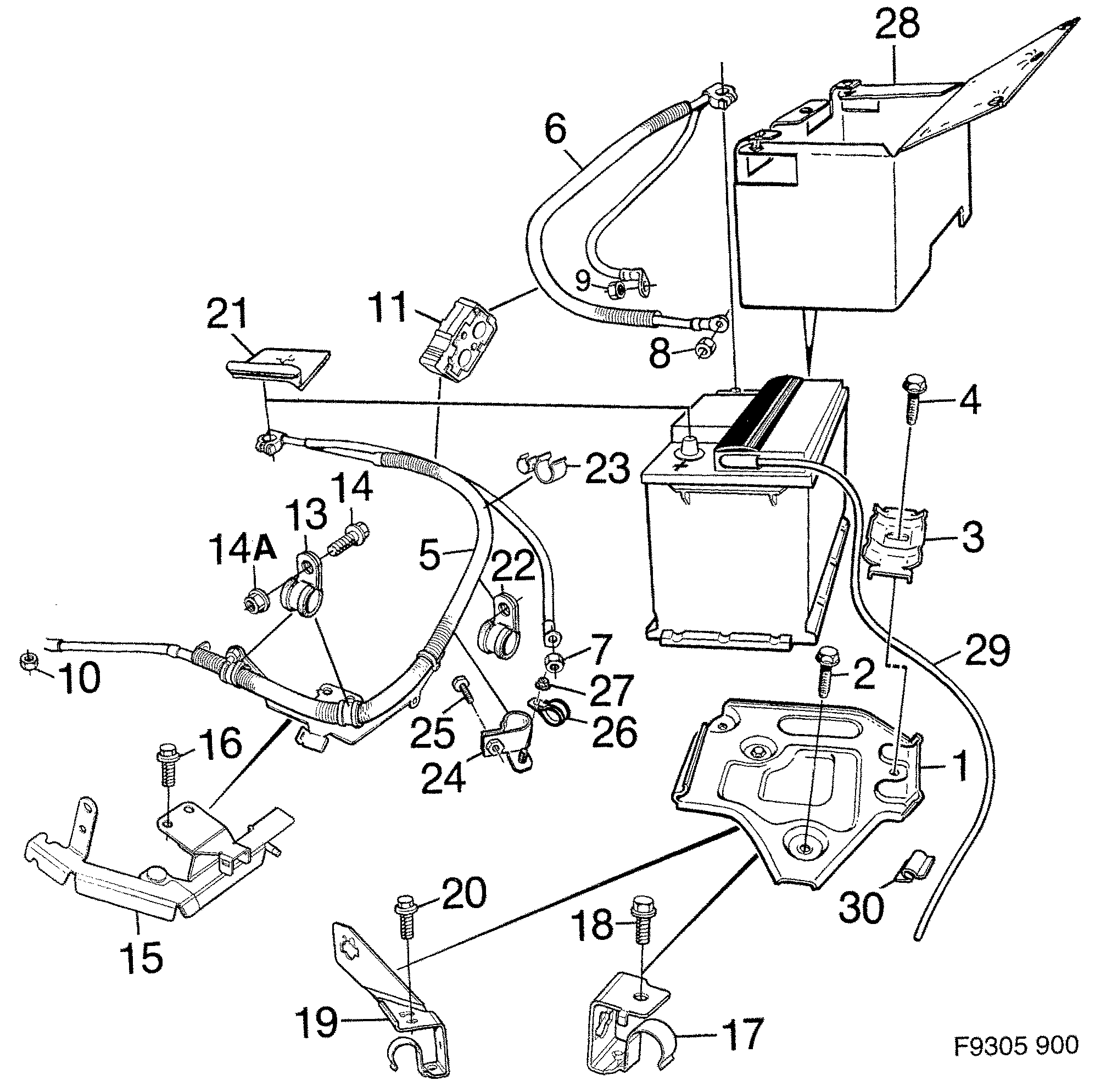

Group 3a Electrical, general, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Battery tray | 4335527 |
| 2 | Screw | 11900353 (replaces 7978091) |
| 3 | Brace | 90228223 (replaces 4222667) |
| 4 | Hexagon screw | 11900367 (replaces 7978216) |
| 5 | Cable | 5243555 (replaces 4408597) |
| 5 | Cable | 5243555 (replaces 4946158) |
| 5 | Cable | 5243555 (replaces 4584249) |
| 5 | Cable | 5243555 (replaces 4946166) |
| 6 | Cable | 4946182 (replaces 4221875) |
| 6 | Cable | 4946182 |
| 6 | Cable | 4946174 (replaces 4410486) |
| 6 | Cable | 4946174 |
| 7 | Hexagon nut | 11900452 (replaces 7977952) |
| 9 | Nut | 8151243 |
| 10 | Nut | 11900451 (replaces 7977929) |
| 11 | Clip | 4411369 |
| 13 | Clamp | 7969405 |
| 13 | Clamp | 4087557 |
| 14 | Screw | 11900354 (replaces 7978109) |
| 14 | Screw | 92153146 (replaces 7972607) |
| 14 | Screw | 7978133 |
| 15 | Cable protection | 4466959 |
| 17 | Bracket | 4489134 |
| 17 | Bracket | 4536090 |
| 18 | Screw | 7972441 |
| 19 | Bracket | 4489126 |
| 21 | Cover | 4582425 |
| 22 | Clamp | 4940771 (replaces 7985658) |
| 23 | Clip | 4588695 |
| 24 | Clamp | 4738100 |
| 26 | Clamp | 4685384 |
| 27 | Lock nut | 92150265 (replaces 8073512) |
| 28 | Heat shield | 4947529 |
| 29 | Draining hose | 4949475 |
| 30 | Clip | 4940920 |
