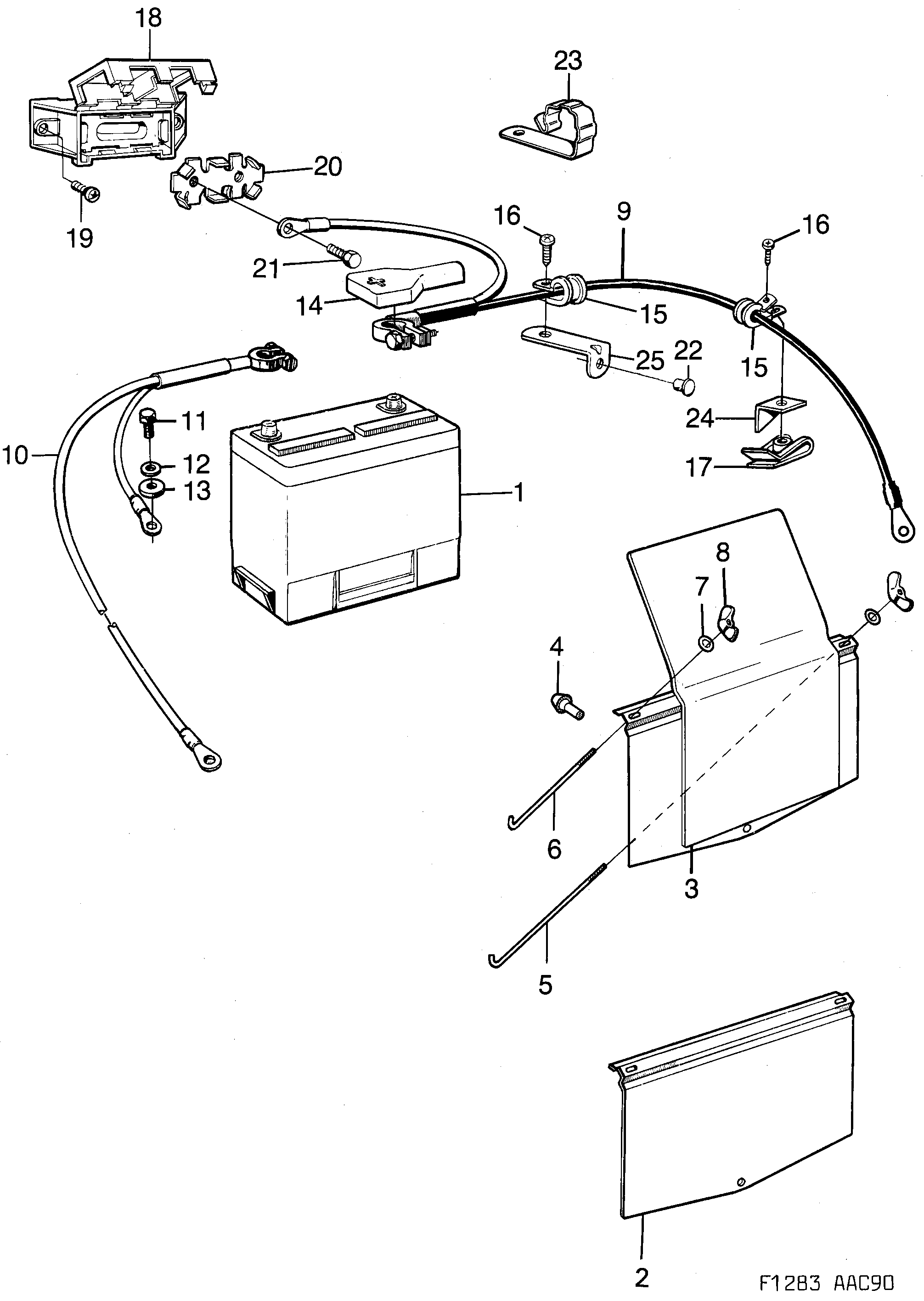

Group 3a Electrical, general, section 110
| Pos | Article | Part No. |
|---|---|---|
| 2 | Protection | 8551582 |
| 3 | Heat shield | 8594897 |
| 4 | Plug | 7113970 |
| 5 | Latch | 8572737 |
| 5 | Latch | 8551616 |
| 6 | Latch | 8572745 |
| 7 | Star washer | 7968506 (replaces 7915564) |
| 8 | Nut | 7970460 |
| 9 | Cable | 9555624 |
| 9 | Cable | 9555764 |
| 9 | Cable | 9555632 |
| 9 | Cable | 9555772 |
| 10 | Ground cable | 30520561 (replaces 9121526) |
| 11 | Screw | 8584666 |
| 12 | Washer | 8584674 |
| 13 | Washer | 8584682 |
| 14 | Cover | 4582425 (replaces 9518424) |
| 15 | Clamp | 8566135 |
| 15 | Clamp | 8566143 |
| 16 | Screw | 8286296 |
| 16 | Screw | 8267205 |
| 17 | Clip | 8267098 |
| 18 | Bracket | 4061891 |
| 19 | Screw | 7922891 (replaces 7974769) |
| 20 | Casing | 30525828 (replaces 9503053) |
| 21 | Screw | 8019895 |
| 21 | Screw | 9166273 |
| 22 | Pop rivet | 8235178 |
| 23 | Clamp | 8528564 |
| 24 | Bracket | 8594368 |
| 25 | Bracket | 9559782 |
