Saab 900 1986-1986 Front and engine

Group 3a Electrical, general, section 1000

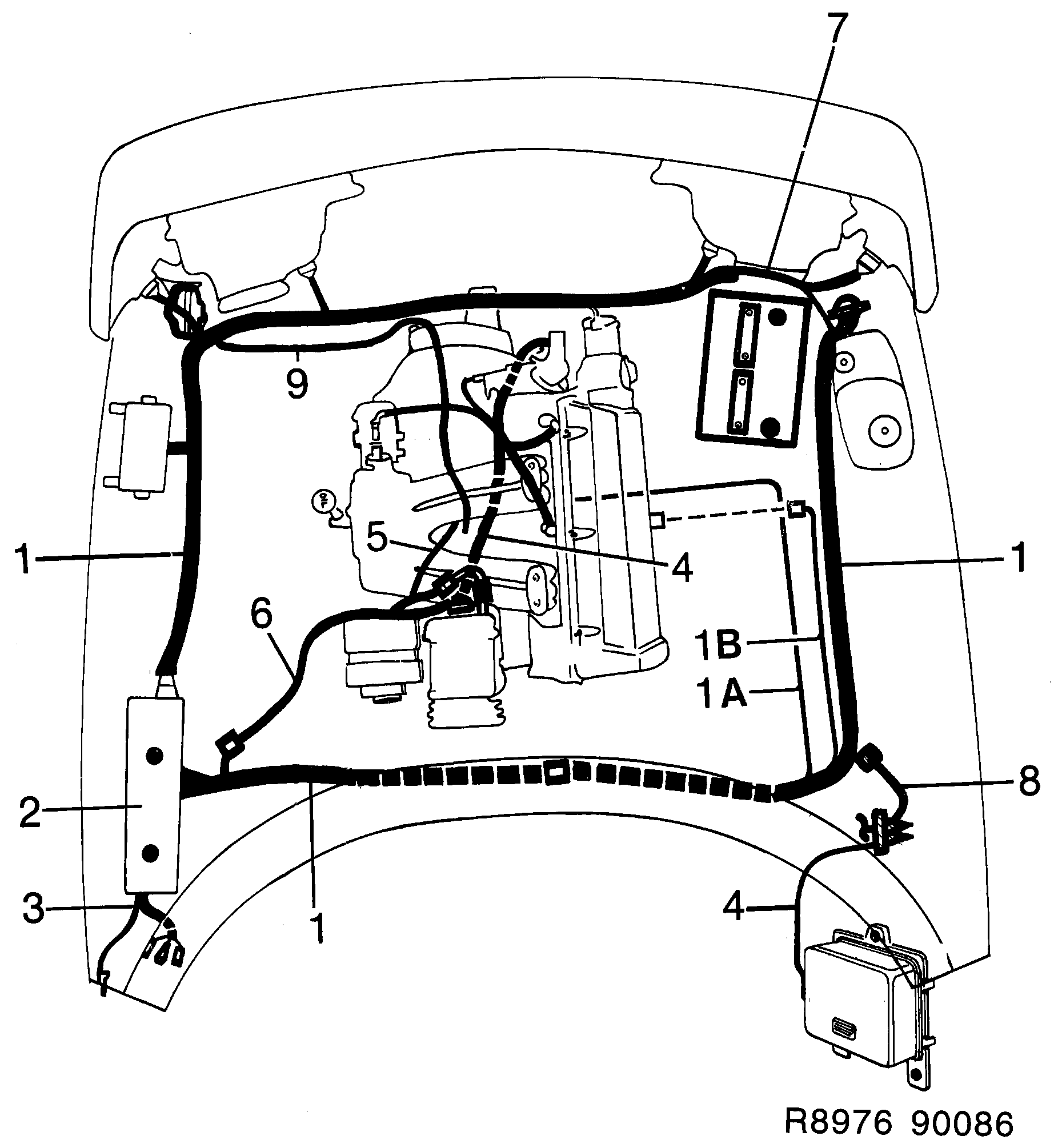

Saab 900 Front and engine diagram

Pos	Article	Part No.
1	Cable harness	9552209
1	Cable harness	9552217
1	Cable harness	9552282
1	Cable harness	9552225
1	Cable harness	9552233
1	Cable harness	9552290
1	Cable harness	9552308
1	Cable harness	9552316
1	Cable harness	9552324
1	Cable harness	9552332
1	Cable harness	9552340
1	Cable harness	9552241
1	Cable harness	9552258
1	Cable harness	9552266
1	Cable harness	9552274
1A	Cable	8569386
	Diode	8530966
1B	Cable harness	9555897
2	Cable harness	9553140
2	Cable harness	9553157
2	Cable harness	9597089
3	Cable harness	9553173
3	Cable harness	9553181
4	Cable harness	9553199
4	Cable harness	9553207
5	Cable	9555905
6	Cable harness	8594467
6	Cable harness	8821019
7	Cable harness	9554833
7	Cable harness	8821290
8	Cable harness	9554841
8	Cable harness	9554858
8	Cable harness	8821308
9	Cable harness	9561804
	Cable harness	8821456
