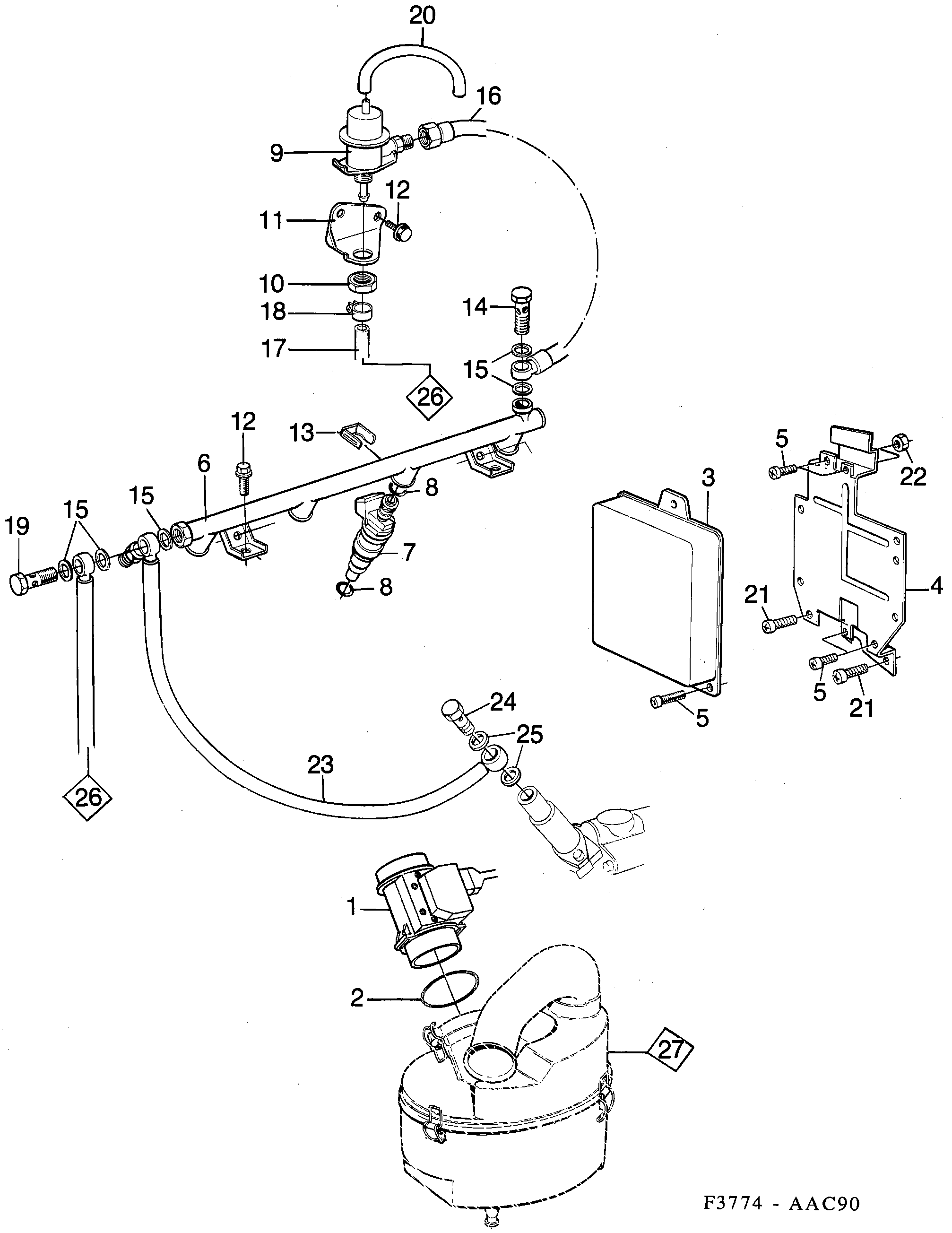

Group 2 Engine, section 980
| Pos | Article | Part No. |
|---|---|---|
| 1 | Mass air flow sensor | 9113838 |
| 2 | O-ring | 4156295 |
| 3 | Electronic unit | 8788507 |
| 3 | Electronic unit | 9128117 |
| 4 | Bracket | 4023107 |
| 5 | Screw | 8059396 |
| 5 | Screw | 7977283 |
| 6 | Tube | 8859936 |
| 7 | Injection valve | 8788523 |
| 8 | O-ring | 7561210 |
| 9 | Regulator | 7486921 |
| 10 | Nut | 8151177 |
| 11 | Bracket | 8859951 |
| 12 | Screw | 8125148 |
| 13 | Clamp | 9356486 |
| 14 | Screw | 92150976 (replaces 8123895) |
| 15 | Seal | 8326704 |
| 16 | Hose | 8788382 |
| 17 | Hose | 7513989 |
| 18 | Hose clamp | 8332587 |
| 19 | Banjo bolt | 12794638 (replaces 8319915) |
| 20 | Hose | 8364416 |
| 21 | Screw | 7922818 |
| 22 | Nut | 92150136 (replaces 7973365) |
| 23 | Fuel pipe | 8981342 |
| 24 | Banjo bolt | 8320319 |
| 25 | Seal | 8981987 |
