Saab 900 1986-1989 ELCD

Group 2 Engine, section 970

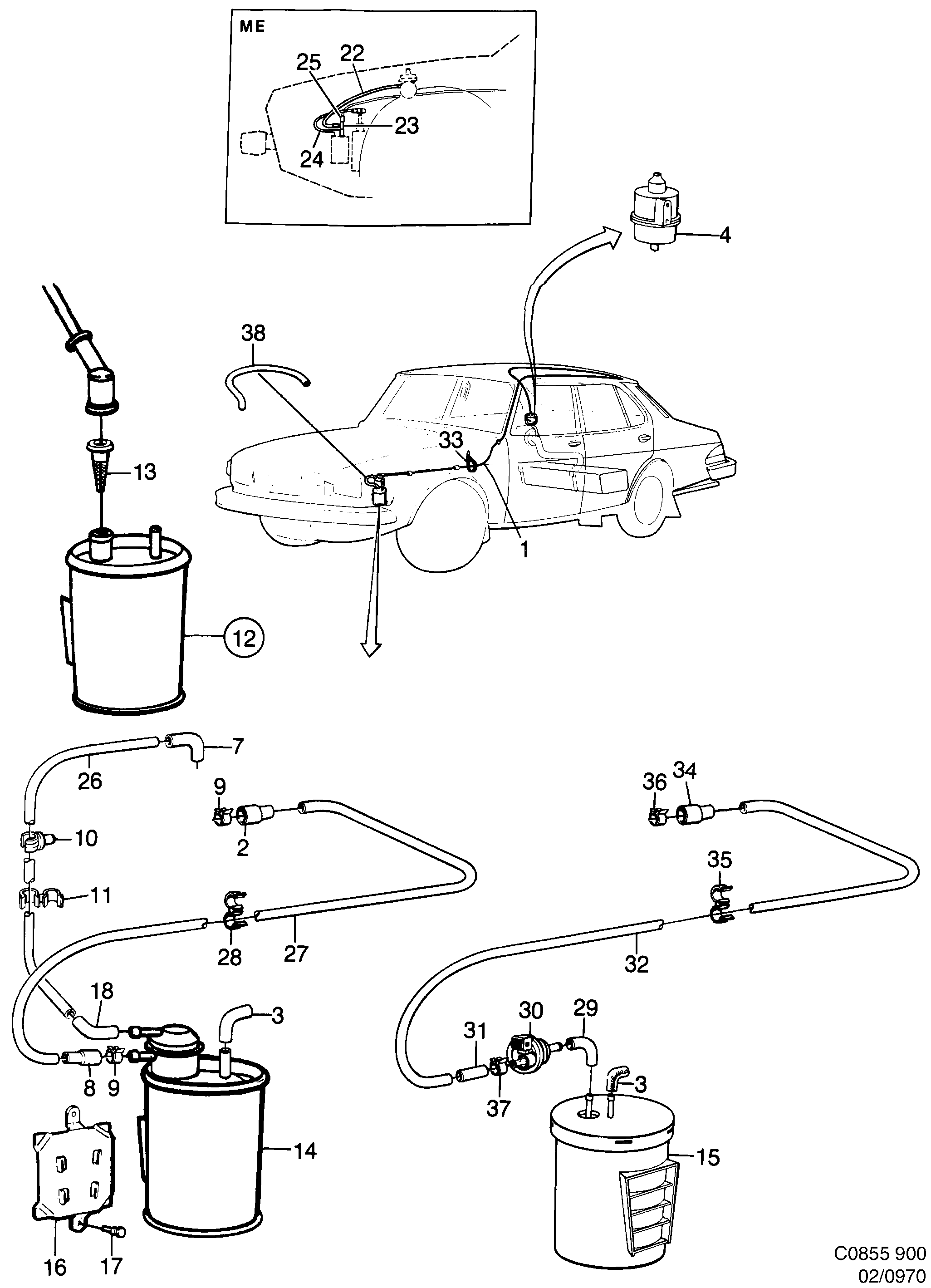

Saab 900 ELCD diagram

Pos	Article	Part No.
1	Hose	9304775
2	Hose	7539026
2	Hose	8982100
3	Hose	7539240 (replaces 7533383)
3	Hose	7539240 (replaces 4018586)
3	Hose	8927139
8	Hose	7539026 (replaces 8334898)
9	Hose clamp	7977879
10	Tube clamp	7963887
11	Clamp	8981649
12	Charcoal canister	8323008
13	Hose	8314494
14	Charcoal canister	7532054
15	Charcoal canister	7539216
16	Bracket	9300302
17	Rivet	92153060 (replaces 7961691)
22	Hose	7534480
23	Manifold	8332520
24	Hose	7525389
26	Hose	7533680
26	Hose	7538986
26	Hose	8981599
27	Hose	7533318
27	Hose	7538960
27	Hose	7538978
27	Hose	8981870
28	Clamp	7398464
28	Clamp	7539984
29	Hose	7539240
30	EVAP canister purge valve	7539257
31	Hose	7539349
32	Tube	7539414
32	Tube	8981888
33	Tie strap	7971864
37	Hose clamp	7973522
38	Protecting moulding	9519737
	Hose	9362781
