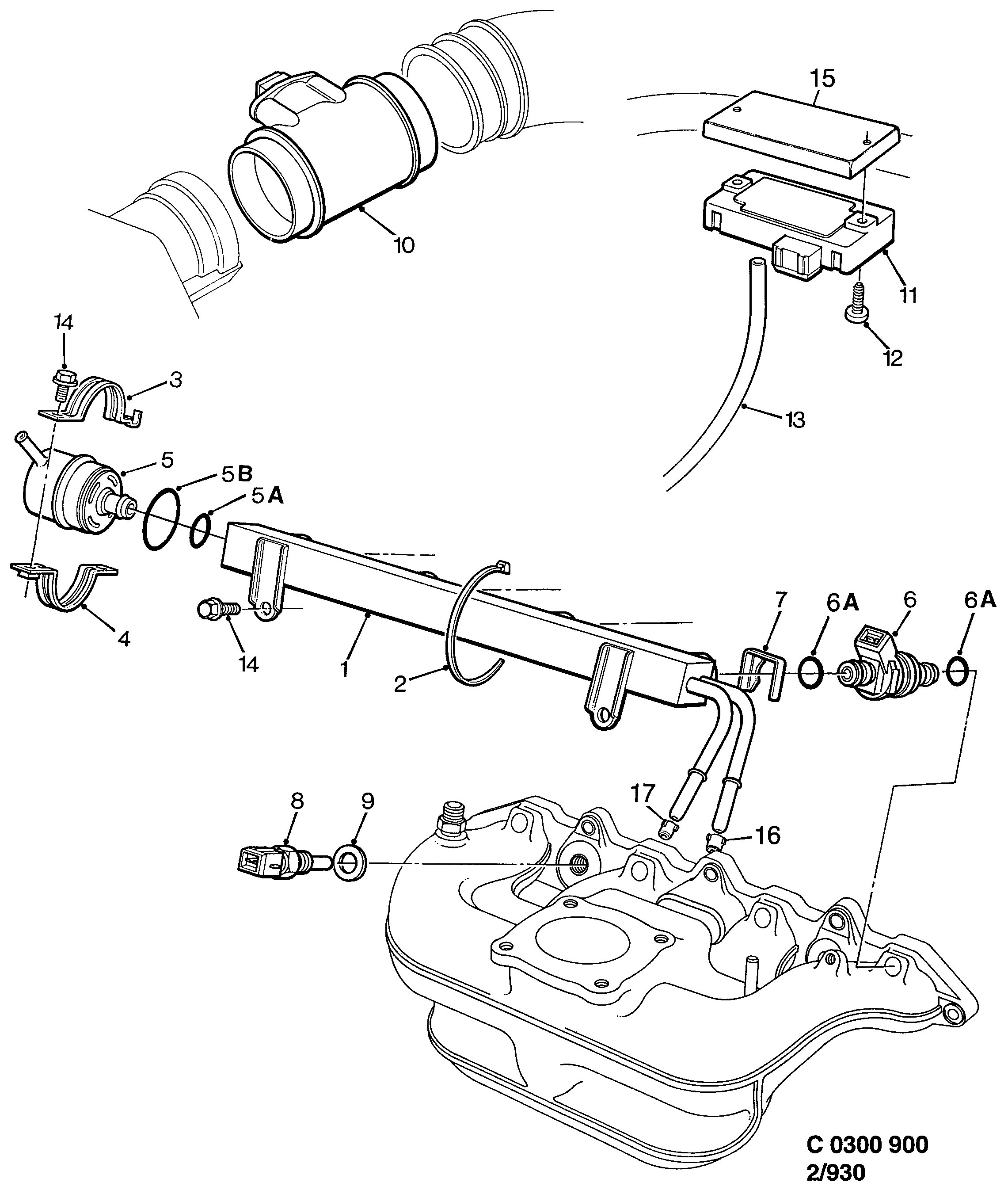

Group 2 Engine, section 930
| Pos | Article | Part No. |
|---|---|---|
| 1 | Fuel rail | 9145939 |
| 1 | Distribution pipe | 9171539 |
| 2 | Tie strap | 7971872 |
| 3 | Bracket | 9128836 |
| 3 | Clamp | 9542424 (replaces 4503819) |
| 4 | Bracket | 9128851 |
| 5 | Fuel pressure regulator | 9131061 |
| 5 | Fuel pressure regulator | 9118850 (replaces 4503793) |
| 5A | O-ring | 30580309 (replaces 9197724) |
| 5B | O-ring | 90511961 |
| 6 | Injector | 9142423 |
| 6 | Injector | 30551847 (replaces 9142449) |
| 6A | O-ring | 90541910 (replaces 9197716) |
| 7 | Clamp | 9356486 |
| 7 | Clamp | 9356486 (replaces 9175464) |
| 8 | Temperature sensor | 9137803 |
| 8 | Temperature sensor | 15393755 (replaces 9177213) |
| 9 | Seal | 4443883 (replaces 4159265) |
| 11 | Charge Air Absolute Pressure Sensor | 9132374 |
| 12 | Screw | 7982192 |
| 13 | Vaccum hose | 4164141 |
| 14 | Screw | 7971294 |
| 14 | Screw | 11900353 (replaces 7978091) |
| 15 | Protecting cover | 4239968 |
| 16 | Bushing | 4229738 |
| 17 | Bushing | 4229746 |
