Saab 900 1990-1993 Mixing regulator

Group 2 Engine, section 920

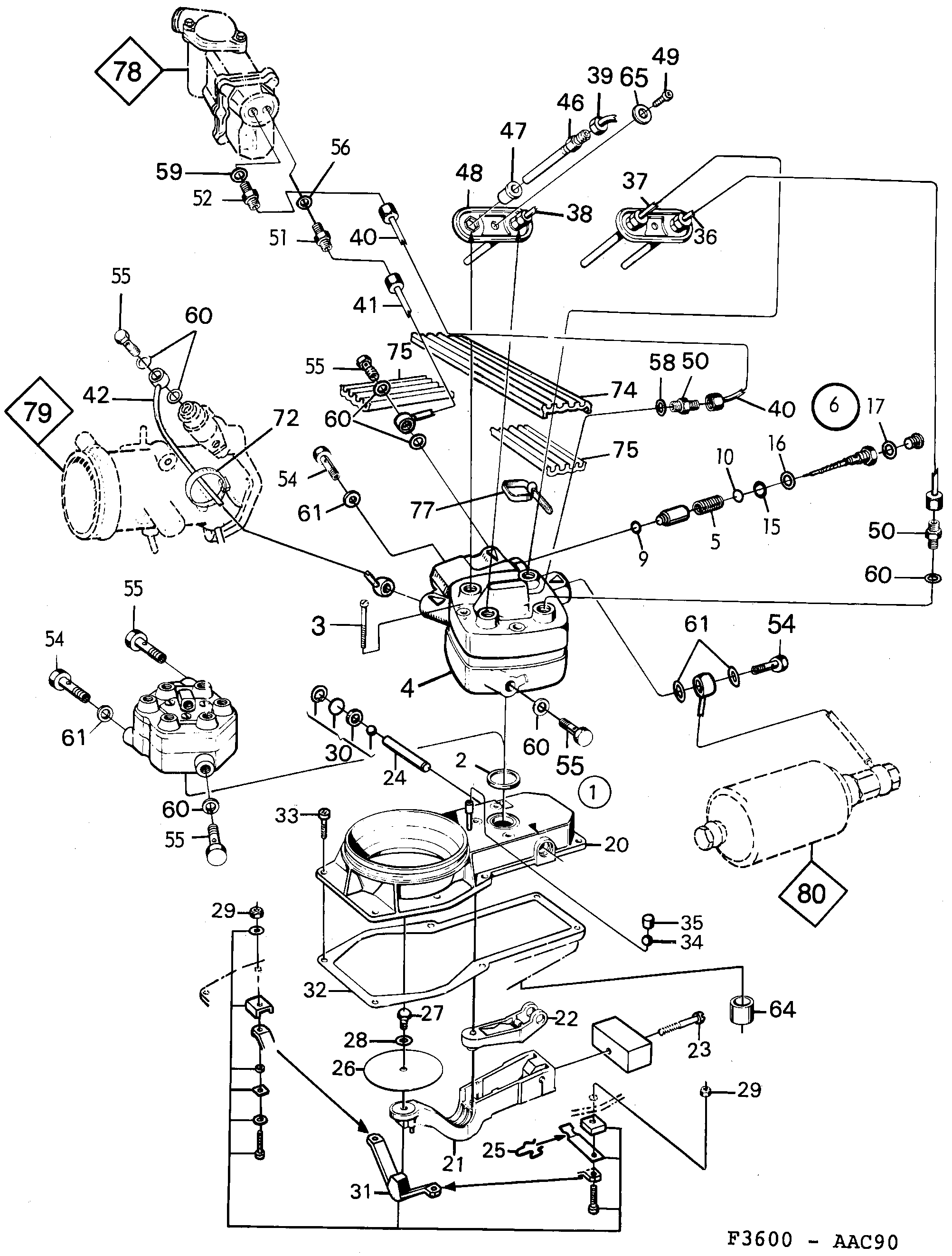

Saab 900 Mixing regulator diagram

Pos	Article	Part No.
1	Volumeter	8981565 (replaces 8981557)
1	Volumeter	7525231 (replaces 9344896)
2	Seal	9315151
3	Screw	8322380
4	Volumeter	8981565
4	Volumeter	9345778
5	Spring	9315185
6	Valve	9315177
9	O-ring	7511413
10	Washer	9315193
10	Washer	9315201
10	Washer	9315219
10	Washer	9315227
10	Washer	9315235
15	O-ring	9315243
16	Ring	7511421
17	Seal	8981987 (replaces 8324006)
20	Volumeter	8981573
20	Volumeter	9345786
21	Lever	9302951
22	Arm	8338394
23	Screw	8338402
24	Pin	8322539
25	Clamp	8338410
26	Valve disc	8322554
26	Valve disc	9315292
27	Screw	8338436
28	Washer	8322570
29	Nut	8322588
30	Bearing bushing	8322604
31	Brace	8322612
32	Gasket	8323024
33	Screw	8059594
34	Ball	9348913
35	Plug	8333700
35	Plug	8334187
35	Plug	9337734
36	Injection pipe	7535040
37	Injection pipe	7535057
38	Injection pipe	7535065
39	Injection pipe	7535073
40	Fuel pipe	7535180
40	Fuel pipe	7535214
41	Fuel pipe	7535198
42	Fuel pipe	7535172
42	Fuel pipe	7535206
46	Injection valve	9310152
46	Injection valve	7856354
47	Bushing	8357709
48	Bracket	8357691
49	Screw	8098048
50	Nipple	7525231
51	Nipple	7525223
52	Nipple	7525249
54	Banjo bolt	12794638 (replaces 8319915)
55	Banjo bolt	8320319
56	Gasket	8324022
59	Gasket	8324030
60	Seal	8981987
61	Seal	4443883 (replaces 8981979)
64	Plug	9300625
65	Washer	32000432 (replaces 9166372)
74	Clip	9341793
75	Tube clamp	7535032
77	Tie strap	7971864
	Injection valve	9321662
