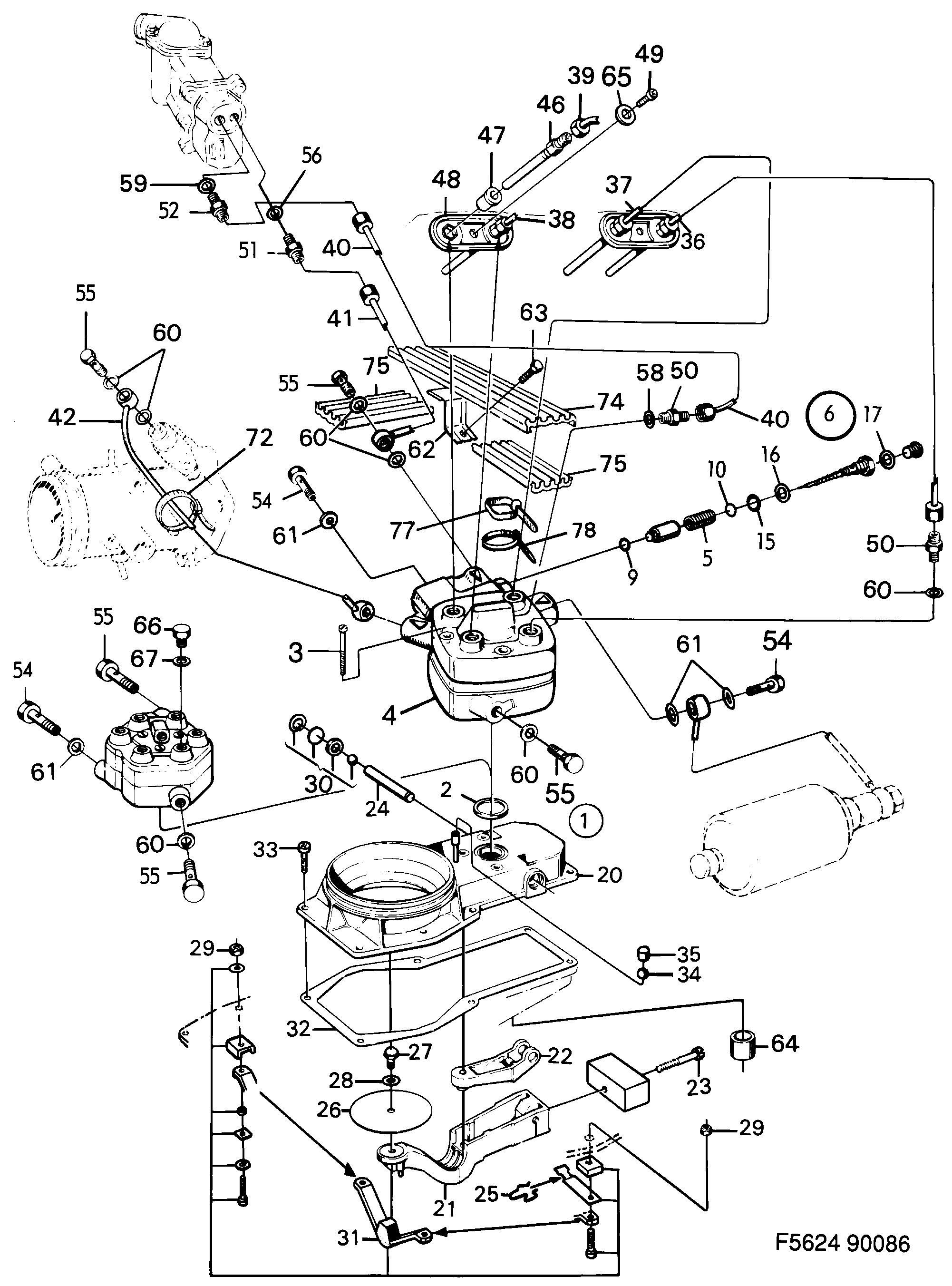

Group 2 Engine, section 910
| Pos | Article | Part No. |
|---|---|---|
| 1 | Volumeter | 9302936 (replaces 8338923) |
| 1 | Volumeter | 8981565 (replaces 8981557) |
| 1 | Volumeter | 9317272 (replaces 8335887) |
| 1 | Volumeter | 7525231 (replaces 9344896) |
| 2 | Seal | 9315151 |
| 2 | Seal | 9317231 |
| 3 | Screw | 8322380 |
| 3 | Screw | 9317249 |
| 4 | Volumeter | 9302936 |
| 4 | Volumeter | 8981565 |
| 4 | Volumeter | 9345778 |
| 4 | Volumeter | 9317256 |
| 5 | Spring | 9315185 |
| 5 | Compression spring | 7511488 |
| 6 | Valve | 9315177 |
| 9 | O-ring | 7511413 |
| 10 | Washer | 9315193 |
| 10 | Washer | 9315201 |
| 10 | Washer | 9315219 |
| 10 | Washer | 9315227 |
| 10 | Washer | 9315235 |
| 15 | O-ring | 9315243 |
| 16 | Ring | 7511421 |
| 17 | Seal | 8981987 (replaces 8324006) |
| 20 | Volumeter | 9302944 |
| 20 | Volumeter | 8981573 |
| 20 | Volumeter | 9345786 |
| 20 | Volumeter | 9317272 |
| 21 | Lever | 9302951 |
| 22 | Arm | 8338394 |
| 23 | Screw | 8338402 |
| 24 | Pin | 8322539 |
| 25 | Clamp | 8338410 |
| 26 | Valve disc | 8322554 |
| 26 | Valve disc | 9315292 |
| 27 | Screw | 8338436 |
| 28 | Washer | 8322570 |
| 29 | Nut | 8322588 |
| 30 | Bearing bushing | 8322604 |
| 31 | Brace | 8322612 |
| 32 | Gasket | 8323024 |
| 33 | Screw | 8059594 |
| 34 | Ball | 9348913 |
| 35 | Plug | 8333700 |
| 35 | Plug | 8334187 |
| 35 | Plug | 9337734 |
| 36 | Injection pipe | 9346685 |
| 36 | Injection pipe | 7535040 |
| 37 | Injection pipe | 9346693 |
| 37 | Injection pipe | 7535057 |
| 38 | Injection pipe | 9346701 |
| 38 | Injection pipe | 7535065 |
| 39 | Injection pipe | 9346719 |
| 39 | Injection pipe | 7535073 |
| 40 | Fuel pipe | 9341629 |
| 40 | Fuel pipe | 9341637 |
| 40 | Fuel pipe | 7535180 |
| 40 | Fuel pipe | 7535214 |
| 41 | Fuel pipe | 9348731 |
| 41 | Fuel pipe | 7535198 |
| 42 | Fuel pipe | 9363656 |
| 42 | Fuel pipe | 9341652 |
| 42 | Fuel pipe | 7535172 |
| 42 | Fuel pipe | 7535206 |
| 46 | Injection valve | 9310152 |
| 47 | Bushing | 8357709 |
| 48 | Bracket | 8357691 |
| 49 | Screw | 8098048 |
| 50 | Nipple | 7525231 |
| 51 | Nipple | 7525223 |
| 52 | Nipple | 7525249 |
| 54 | Banjo bolt | 12794638 (replaces 8319915) |
| 55 | Banjo bolt | 8320319 |
| 56 | Gasket | 8324022 |
| 59 | Gasket | 8324030 |
| 60 | Seal | 8981987 (replaces 9328824) |
| 60 | Seal | 8981987 (replaces 8977381) |
| 60 | Seal | 8981987 |
| 61 | Seal | 8326704 |
| 61 | Seal | 4443883 (replaces 8977373) |
| 61 | Seal | 4443883 (replaces 8981979) |
| 62 | Bracket | 9342221 |
| 63 | Screw | 7973134 |
| 64 | Plug | 9300625 |
| 65 | Washer | 92153033 (replaces 8029985) |
| 66 | Screw | 8337743 |
| 72 | Tie strap | 7971872 |
| 74 | Clip | 9341793 |
| 75 | Clip | 9341801 |
| 75 | Tube clamp | 7535032 |
| 77 | Tie strap | 7971864 |
