Saab 900 1986-1989 Fuel pump

Group 2 Engine, section 850

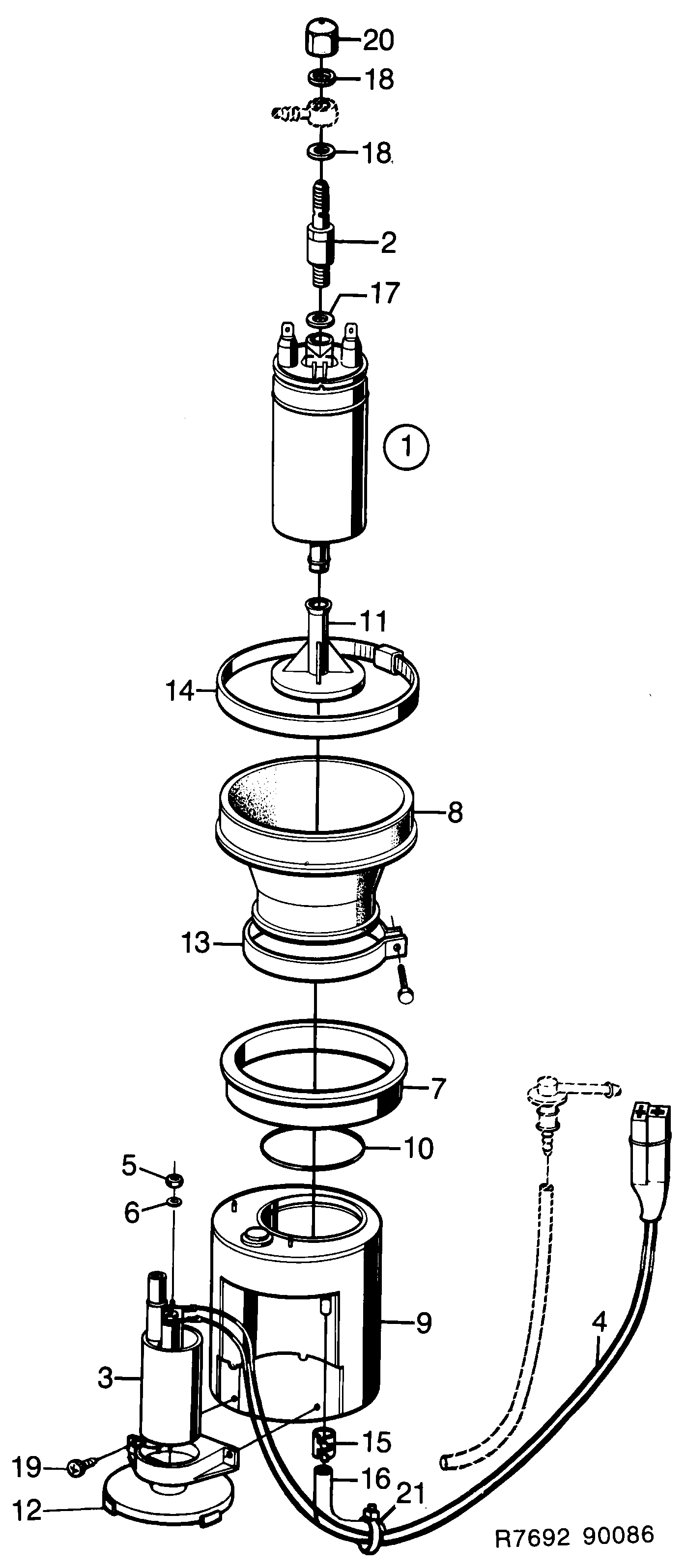

Saab 900 Fuel pump diagram

Pos	Article	Part No.
1	Fuel pump	9367798
1	Fuel pump	9392911
1	Fuel pump	9393935
2	Valve	8817553
2	Valve	9337510
3	Fuel pump	7526163 (replaces 9349671)
3	Fuel pump	7526163
4	Cable harness	9363540
5	Nut	7973993
6	Washer	7910516
7	Support ring	9349614
8	Collar	9367756
9	Reservoir	9386798
10	O-ring	9383522
11	Strainer	7511082
12	Strainer	9386491
13	Hose clamp	9367731
14	Hose clamp	9331554
15	Hose clamp	7973522
15	Hose clamp	7977879
16	Return pipe	9362260
16	Return pipe	8975484
17	Washer	9337528
18	Seal	8326704
18	Seal	4443883 (replaces 8977373)
18	Seal	4443883 (replaces 8981979)
19	Screw	7973613
20	Cap nut	9361668
21	Tie strap	7971864
