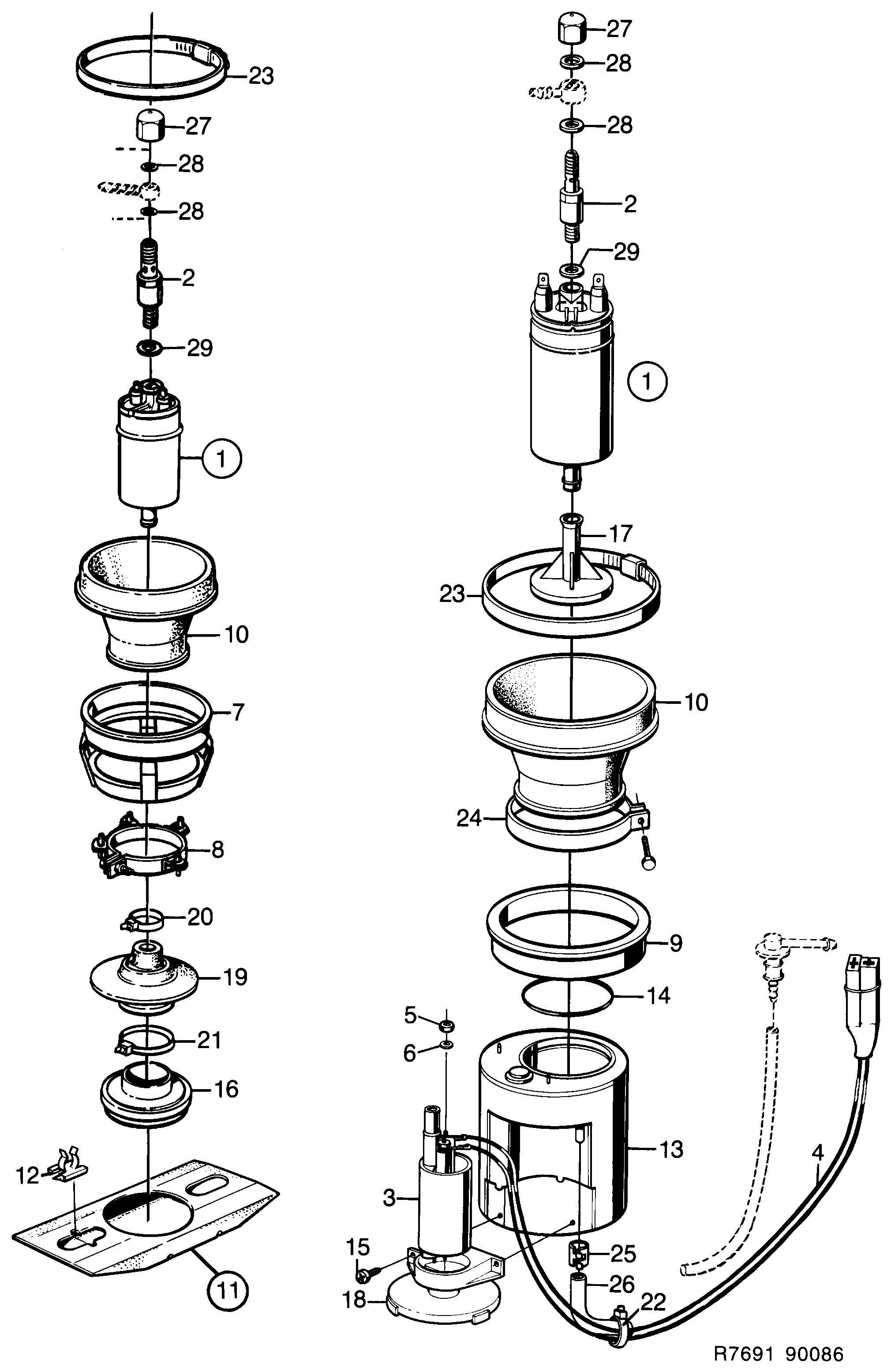

Group 2 Engine, section 820
| Pos | Article | Part No. |
|---|---|---|
| 1 | Fuel pump | 9361015 |
| 1 | Fuel pump | 7536923 |
| 2 | Valve | 9337510 |
| 3 | Fuel pump | 7526163 (replaces 9349671) |
| 3 | Fuel pump | 7526163 |
| 4 | Cable harness | 9363540 |
| 5 | Nut | 7973993 |
| 6 | Washer | 7910516 |
| 7 | Pump bracket | 9348103 |
| 8 | Clamp | 9348087 |
| 9 | Support ring | 9349614 |
| 10 | Seal | 9319971 |
| 11 | Reservoir | 9362153 |
| 12 | Clip | 9324211 |
| 13 | Reservoir | 7513666 |
| 14 | O-ring | 9349655 |
| 15 | Screw | 7973613 |
| 16 | Suction filter | 8331159 |
| 17 | Strainer | 9365958 |
| 18 | Strainer | 9386491 |
| 19 | Bellows | 9319955 |
| 20 | Tie strap | 7971864 (replaces 8517104) |
| 20 | Tie strap | 7971864 |
| 21 | Tie strap | 11900513 (replaces 8374357) |
| 23 | Hose clamp | 9331554 |
| 24 | Clamp | 9322660 |
| 25 | Hose clamp | 7973522 |
| 25 | Hose clamp | 7977879 |
| 26 | Return pipe | 9362260 |
| 26 | Return pipe | 8975484 |
| 27 | Cap nut | 9361668 |
| 28 | Seal | 8326704 |
| 28 | Seal | 4443883 (replaces 8977373) |
| 28 | Seal | 4443883 (replaces 8981979) |
| 29 | Washer | 9337528 |
