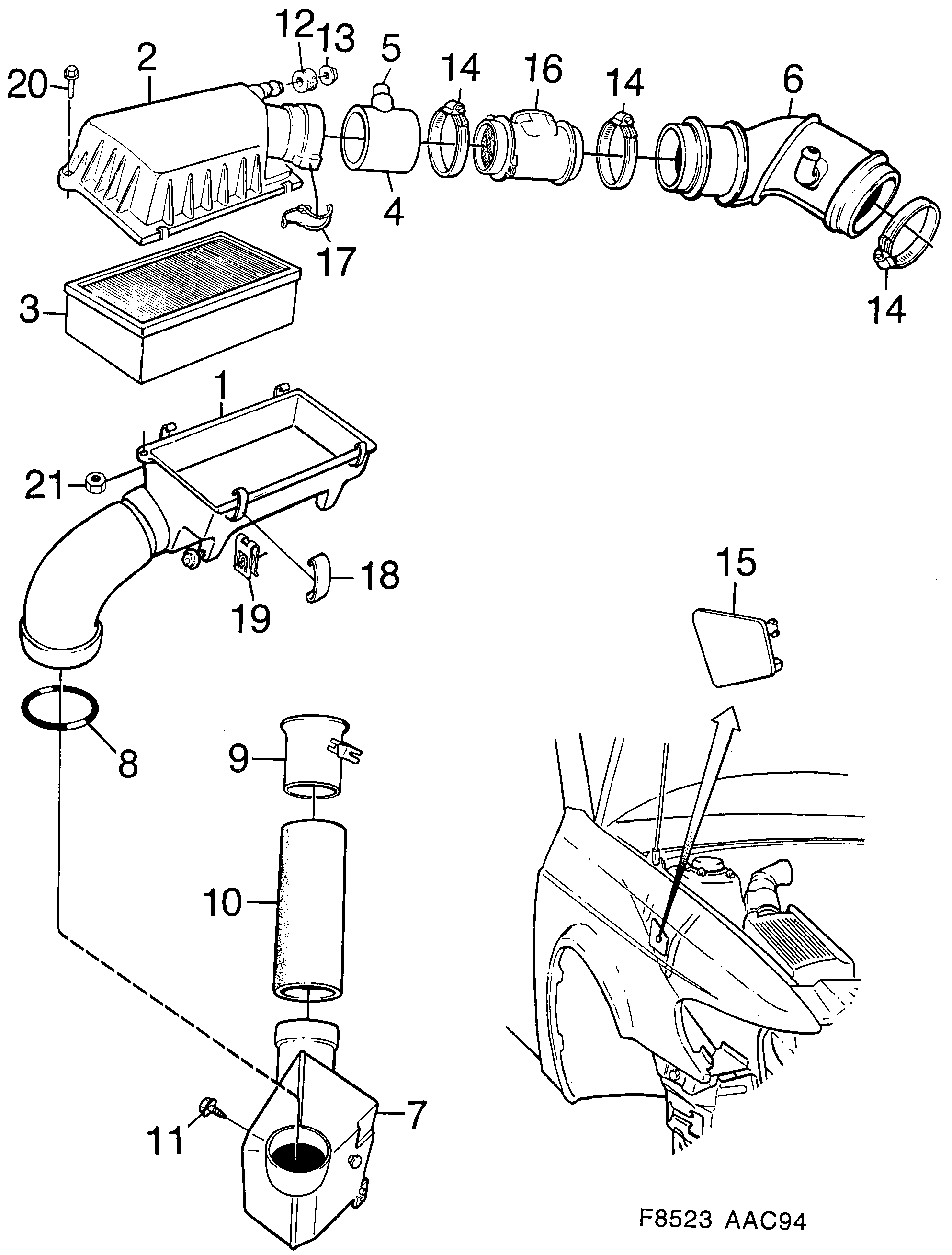

Group 2 Engine, section 810
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air cleaner | 4236048 |
| 2 | Air cleaner | 4236055 |
| 3 | Filter cartridge | 4236063 |
| 4 | Hose | 4661302 (replaces 4229571) |
| 4 | Hose | 4661302 |
| 5 | Intake air temperature sensor | 4239067 |
| 5 | Intake air temperature sensor | 4660593 |
| 6 | Hose | 4236113 |
| 7 | Muffler | 4229563 |
| 8 | O-ring | 4229704 |
| 9 | Connection sleeve | 4236154 |
| 10 | Hose | 4236147 |
| 11 | Screw | 92153149 (replaces 7977465) |
| 12 | Rubber spacer | 9281374 (replaces 4235768) |
| 13 | Hexagon nut | 11089471 (replaces 4345138) |
| 14 | Hose clamp | 92150224 (replaces 7970163) |
| 15 | Adapter | 4338679 |
| 16 | Mass air flow sensor | 4239034 |
| 16 | Mass air flow sensor | 4660817 |
| 16 | Mass air flow sensor | 4780177 |
| 17 | Clip | 4445854 |
| 18 | Clip | 4445862 |
| 18 | Clip | 4622890 |
| 19 | Clip | 4445847 |
| 20 | Screw | 4622908 |
| 21 | Nut | 4622916 |
