Saab 900 1990-1993 Fuel tank

Group 2 Engine, section 800

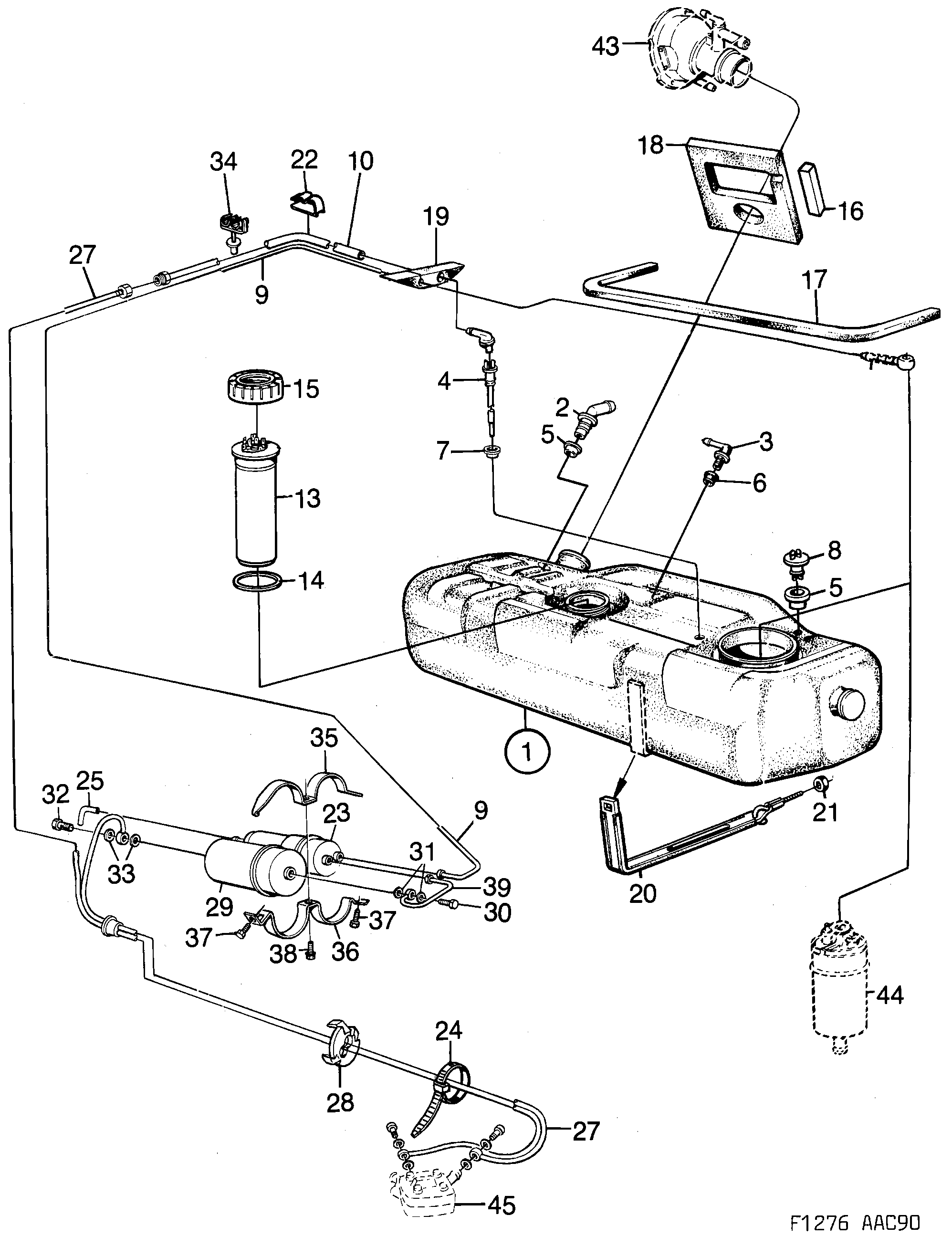

Saab 900 Fuel tank diagram

Pos	Article	Part No.
1	Tank	8982118
2	Nipple	9329491
3	Connector	9328857
4	Nipple	8976961
5	Bushing	9324021
6	Bushing	8325656
9	Fuel pipe	8977308
10	Fuel pipe	8976359
13	Fuel transmitter	8980393
14	Gasket	9392689
15	Nut	9393950
16	Bracket	8572752
17	Seal	4018347
18	Seal	4015608
19	Seal	8976375
20	Tie strap	4015145
21	Nut	11900440 (replaces 9166406)
22	Clip	9349945
23	Fuel accumulator	7525181
24	Tie strap	7971872
25	Protective pipe	9328899
27	Fuel pipe	8977654
28	Bracket	8328346
29	Fuel filter	4163853 (replaces 8978561)
30	Banjo bolt	12773569 (replaces 8322927)
31	Seal	4161162 (replaces 8981961)
32	Banjo bolt	12794638 (replaces 8319915)
33	Seal	4443883 (replaces 8981979)
34	Tube clamp	7963895
35	Tie strap	8977316
36	Tie strap	8977324
37	Screw	7923014
38	Screw	92153149 (replaces 7975774)
39	Fuel pipe	8977290
	Hose	9362781
