Saab 900 1986-1989 Fuel tank engine

Group 2 Engine, section 790

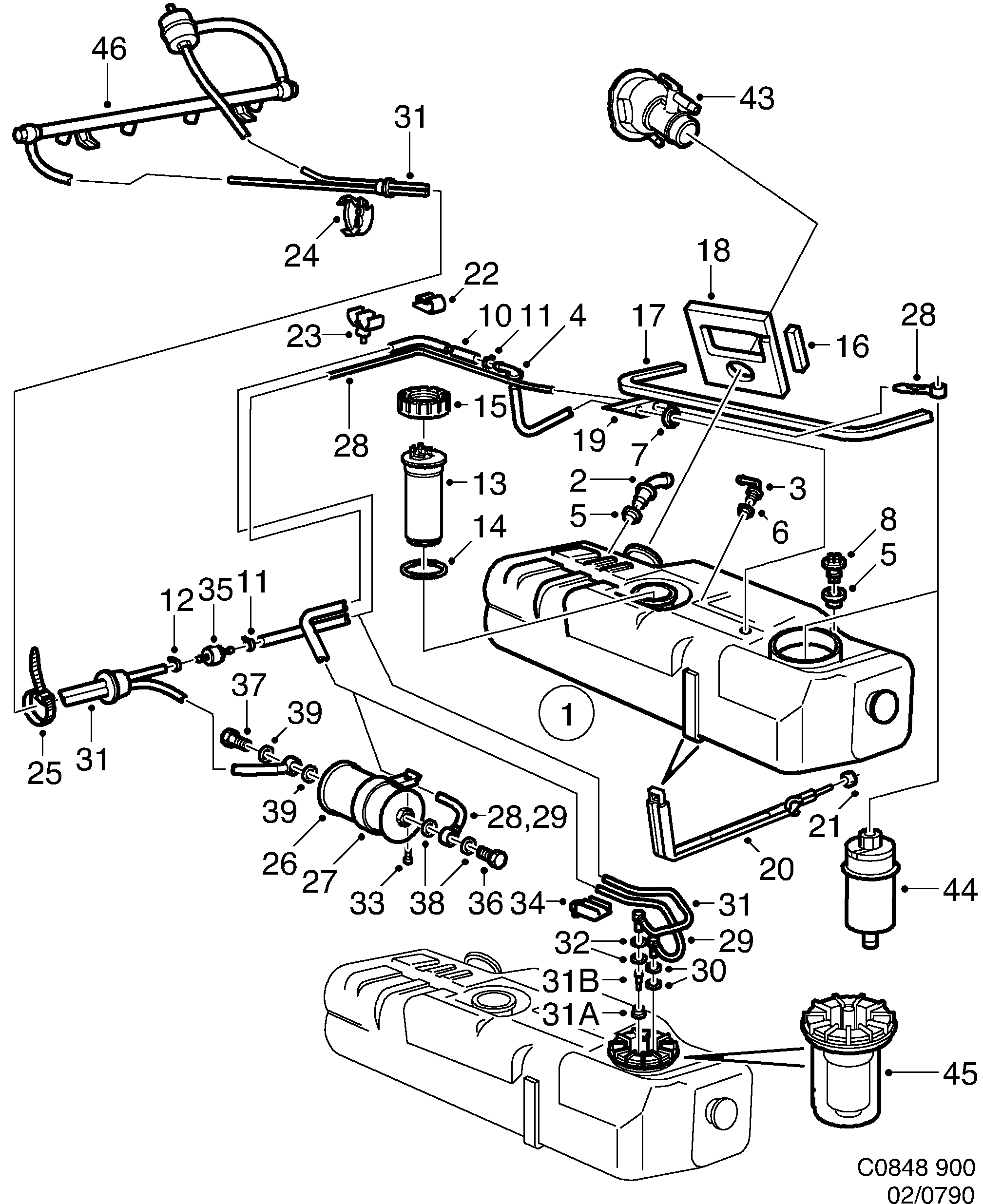

Saab 900 Fuel tank engine diagram

Pos	Article	Part No.
1	Tank	8977431
1	Tank	7527542
1	Tank	7534597
1	Tank	8976425
1	Tank	7531965
1	Tank	7534605
1	Tank	8976433
1	Tank	9368838
1	Tank	7534621
1	Tank	8976441
2	Nipple	9329491
3	Connector	9328857
4	Return pipe	9362211
4	Nipple	9324138
4	Nipple	8977159
4	Nipple	8976961
5	Bushing	9324021
6	Bushing	8325656
8	Connector	9363524
10	Hose	9363359
10	Fuel pipe	8976359
11	Hose clamp	7968308
12	Hose clamp	7975204
13	Fuel transmitter	9361965
13	Fuel transmitter	8980393
14	Gasket	9368846
14	Gasket	9392689
15	Nut	9393950
16	Bracket	8572752
17	Seal	9349929
18	Seal	9349937
19	Seal	9329855
19	Seal	8976375
20	Tie strap	9333600
21	Nut	11900440 (replaces 8074288)
22	Clip	9349945
23	Tube clamp	7963895
24	Bracket	8328346
25	Tie strap	7971872
26	Fuel filter	4163853 (replaces 9333790)
27	Bracket	4573903 (replaces 7526650)
28	Fuel pipe	7526643
29	Fuel pipe	8976110
30	O-ring	7974546
31	Fuel pipe	8981375
31	Fuel pipe	8981540
31A	Check valve	8977779
31B	Valve peg	8977761
31	Fuel pipe	7525660
31	Fuel pipe	8976409
31	Fuel pipe	7526627
33	Screw	7923014
34	Clamp	9382870
35	Check valve	7525124
36	Banjo bolt	12773569 (replaces 8322927)
37	Banjo bolt	12794638 (replaces 8319915)
38	Seal	4161162 (replaces 8326712)
38	Seal	4161162 (replaces 8977365)
38	Seal	4161162 (replaces 8981961)
39	Seal	8326704
39	Seal	4443883 (replaces 8977373)
39	Seal	4443883 (replaces 8981979)
	Hose	9362781
	Fuel hose	8817256
