Saab 900 1990-1993 Filler pipe Hose

Group 2 Engine, section 740

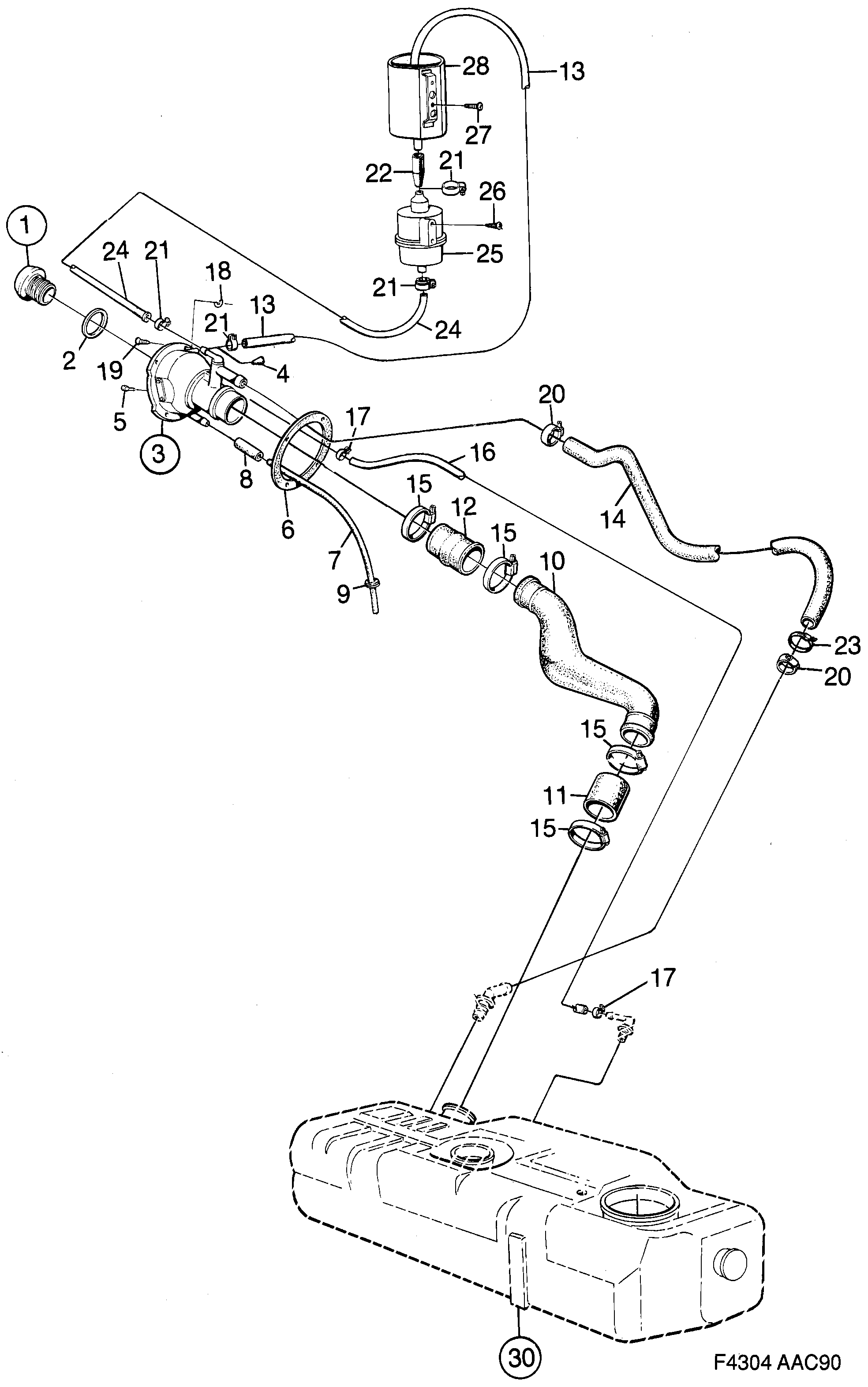

Saab 900 Filler pipe Hose diagram

Pos	Article	Part No.
1	Filler cap	4391058 (replaces 8982209)
2	Gasket	7511751
3	Filler pipe	7530553
3	Filler pipe	9335118
4	Plastic plug	7536840
5	Stop	8315475
6	Gasket	9349838
7	Draining pipe	8323941
8	Hose	9363284
9	Bushing	7961329
10	Filler pipe	8982498
10	Filler pipe	4158069
11	Hose	7525421
12	Hose	7525439
13	Hose	7528920
13	Hose	7528912
13	Cable	4019345
14	Hose	7539133
15	Hose clamp	92153077 (replaces 7970130)
16	Hose	4018354
17	Hose clamp	8332587
18	Nut	8978371
19	Screw	92150118 (replaces 7970536)
20	Hose clamp	7970072
21	Hose clamp	7968308
22	Hose	8334880
23	Tie strap	7971872
24	Hose	7539976
24	Hose	9363243
25	Valve	9318361
26	Screw	7922347
26	Screw	7922347 (replaces 7977416)
27	Screw	7922800 (replaces 7972359)
28	Protecting casing	8333007
	Hose	9362781
