Saab 900 1986-1988 Fuel tank engine

Group 2 Engine, section 730

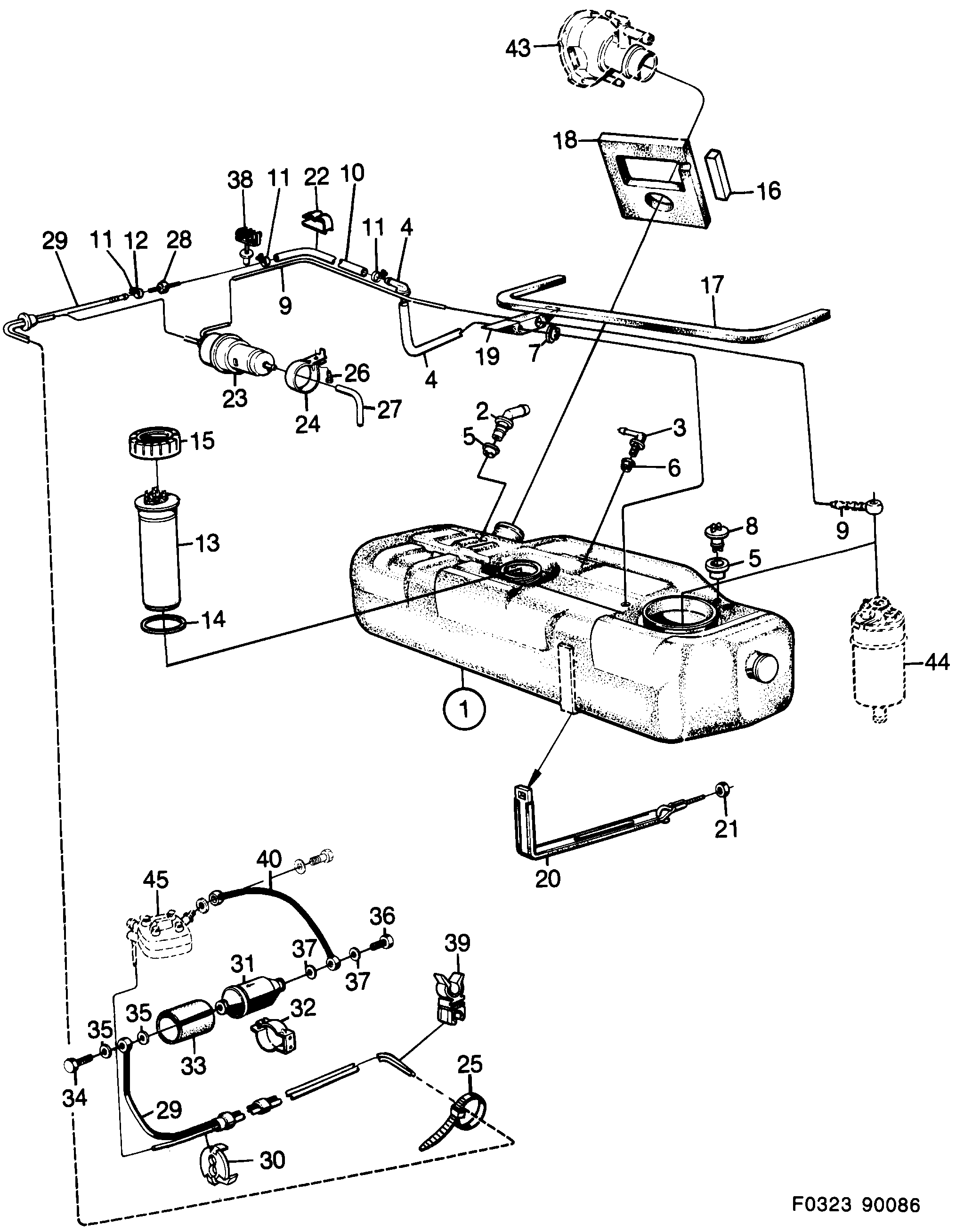

Saab 900 Fuel tank engine diagram

Pos	Article	Part No.
1	Tank	7527542
1	Tank	7534597
1	Tank	8976425
1	Tank	7531965
1	Tank	7534605
1	Tank	8976433
1	Tank	9368838
1	Tank	7534621
1	Tank	8976441
2	Nipple	9329491
3	Connector	9328857
4	Return pipe	9362211
4	Nipple	9324138
4	Nipple	8977159
4	Nipple	8976961
5	Bushing	9324021
6	Bushing	8325656
8	Connector	9363524
9	Fuel pipe	7513872
10	Hose	9363359
10	Fuel pipe	8976359
11	Hose clamp	7968308
12	Hose clamp	7975204
13	Fuel transmitter	9361965
14	Gasket	9368846
14	Gasket	9392689
15	Nut	9393950
16	Bracket	8572752
17	Seal	9349929
18	Seal	9349937
19	Seal	9329855
19	Seal	8976375
20	Tie strap	9333600
21	Nut	11900440 (replaces 8074288)
22	Clip	9349945
23	Fuel accumulator	7525181
24	Clamp	9324815
25	Tie strap	7971872
26	Screw	7972565
26	Screw	7923014
27	Protective pipe	9328899
28	Check valve	7525124
29	Fuel pipe	7527039
29	Fuel pipe	8976391
29	Fuel pipe	7527047
29	Fuel pipe	7526783
29	Fuel pipe	8976383
30	Bracket	8328346
31	Fuel filter	8339731
31	Fuel filter	9328519
31	Fuel filter	4163853 (replaces 9333790)
31	Fuel filter	4163853 (replaces 8978561)
32	Bracket	9300369
32	Bracket	9329210
32	Bracket	7511793
33	Insulation	7527518
34	Banjo bolt	12773569 (replaces 8322927)
35	Seal	4161162 (replaces 8326712)
35	Seal	4161162 (replaces 8977365)
35	Seal	4161162 (replaces 8981961)
36	Banjo bolt	12794638 (replaces 8319915)
37	Seal	8326704
37	Seal	4443883 (replaces 8977373)
37	Seal	4443883 (replaces 8981979)
38	Tube clamp	7963895
39	Clamp	7511256
40	Fuel pipe	7526833
40	Fuel pipe	7526817
	Hose	9362781
	Fuel hose	8817256
