Saab 900 1990-1993 Fuel pump carburettor engine

Group 2 Engine, section 710

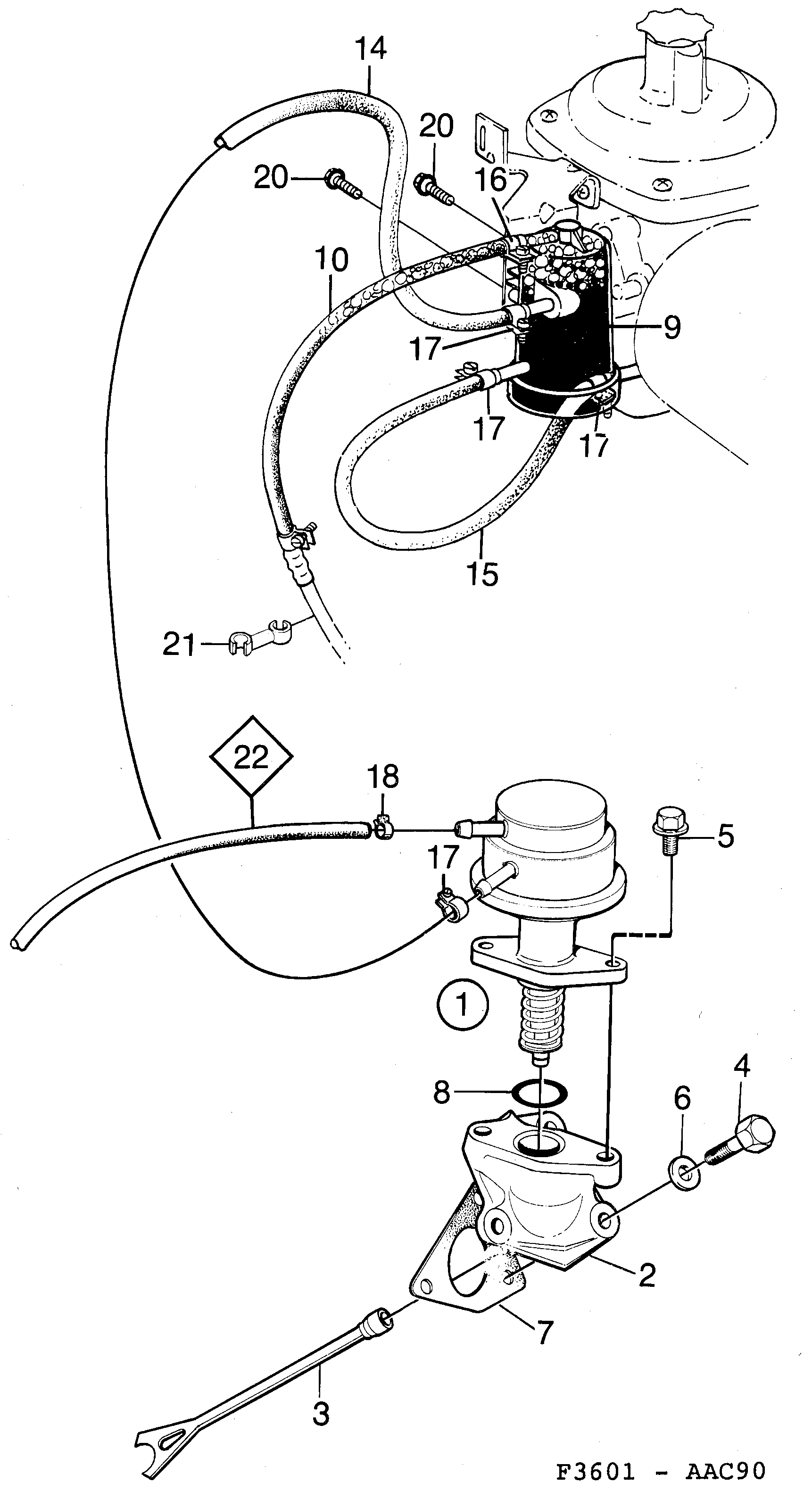

Saab 900 Fuel pump carburettor engine diagram

Pos	Article	Part No.
1	Fuel pump	7522733
2	Connector	9306705
3	Push rod	9312927
4	Screw	9166331
5	Screw	8125163
6	Washer	32000432 (replaces 9166372)
7	Gasket	7566458
8	O-ring	8046617
9	Separator	7586795
10	Hose	9363284
14	Fuel hose	7504160
15	Hose	7504111
16	Hose clamp	90530642 (replaces 8359275)
16	Hose clamp	7968308
17	Hose clamp	7503758
20	Screw	7581333
21	Clip	9345257
