Saab 900 1986-1989 Fuel tank carburettor engine

Group 2 Engine, section 700

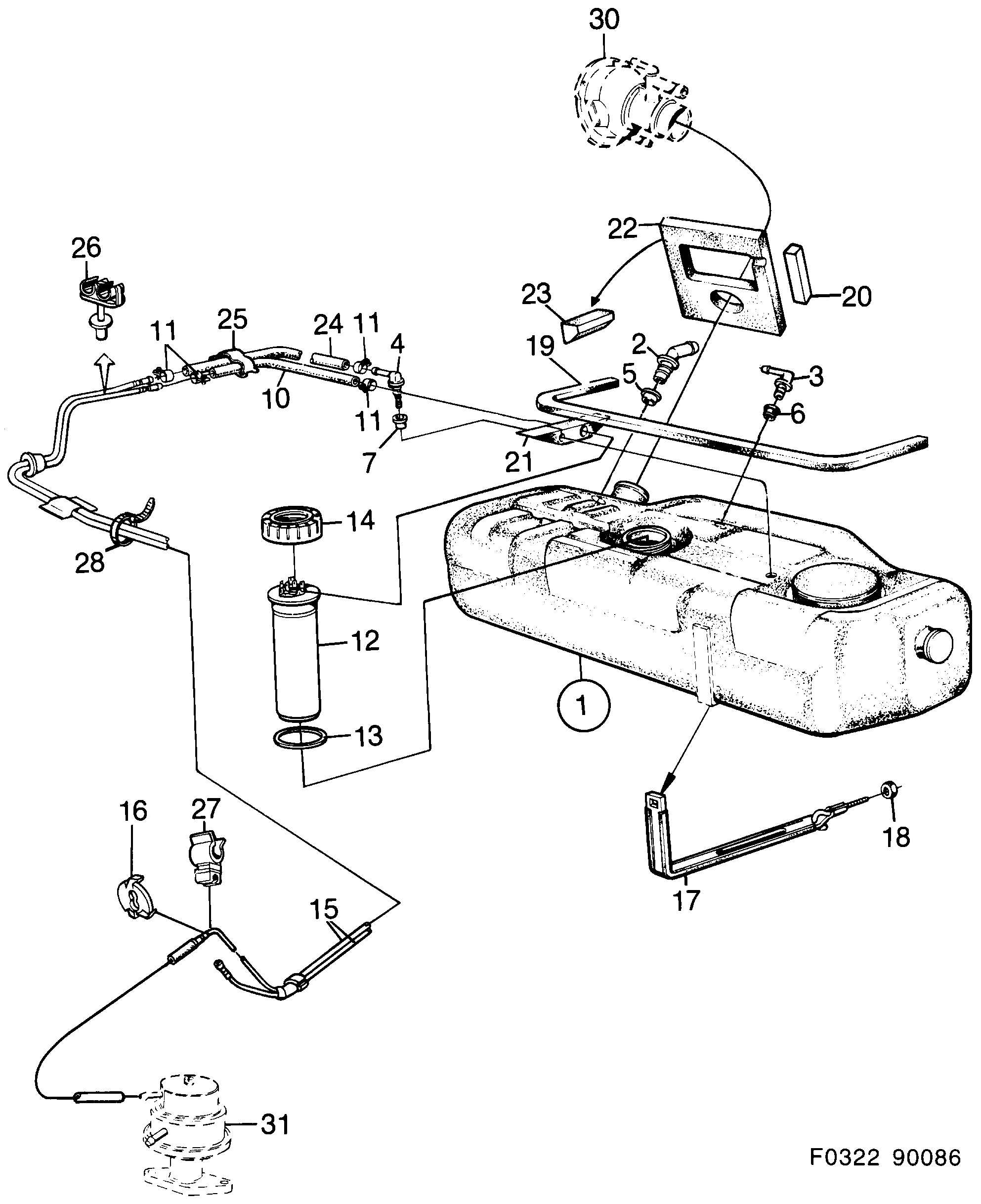

Saab 900 Fuel tank carburettor engine diagram

Pos	Article	Part No.
1	Tank	7534639 (replaces 7510076)
1	Tank	7534639
1	Tank	8976458
2	Nipple	9329491
3	Connector	9328857
4	Nipple	9328873
4	Nipple	9378357
5	Bushing	9324021
6	Bushing	8325656
10	Hose	9363250
11	Hose clamp	7968308
12	Fuel transmitter	9361957
13	Gasket	9368846
13	Gasket	9392689
14	Nut	9393950
15	Fuel pipe	7534522
15	Fuel pipe	8976417
16	Bracket	8328346
17	Tie strap	9333600
18	Nut	11900440 (replaces 8074288)
19	Seal	9349929
20	Bracket	8572752
21	Seal	9329855
22	Seal	9349937
23	Seal	9334632
24	Hose	9363359
25	Clip	9349945
26	Tube clamp	7963895
27	Clamp	7511256
28	Tie strap	7971872
	Hose	9362781
	Fuel hose	8817256
