Saab 900 1994-1997 Oil pump

Group 2 Engine, section 660

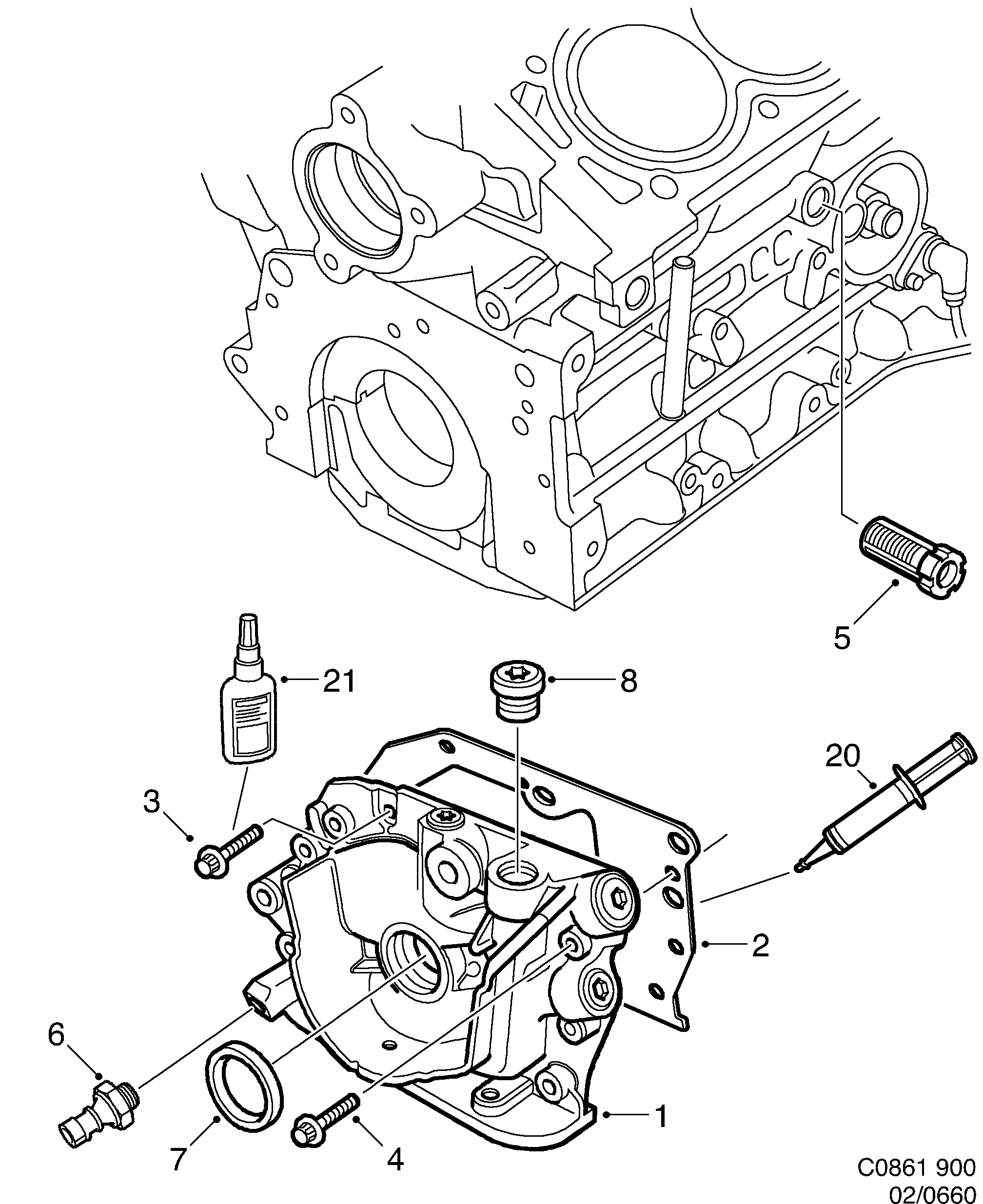

Saab 900 Oil pump diagram

Pos	Article	Part No.
1	Oil pump	11096451 (replaces 4502241)
1	Oil pump	90571901 (replaces 4770731)
2	Gasket	90572461 (replaces 4502258)
2	Gasket	90572461 (replaces 4770749)
3	Screw	11093872 (replaces 4502274)
3	Screw	11096451
4	Screw	11093782 (replaces 4500732)
5	By-pass valve	90136113 (replaces 4500419)
6	Engine oil pressure sensor	4504585
6	Engine oil pressure sensor	55354378 (replaces 4770186)
7	Seal	90322669
8	Screw plug	55350692 (replaces 4502290)
20	Flange sealant	90297970
21	Nut lock	7496268
