Saab 900 1986-1989 Fuel pump carburettor engine

Group 2 Engine, section 640

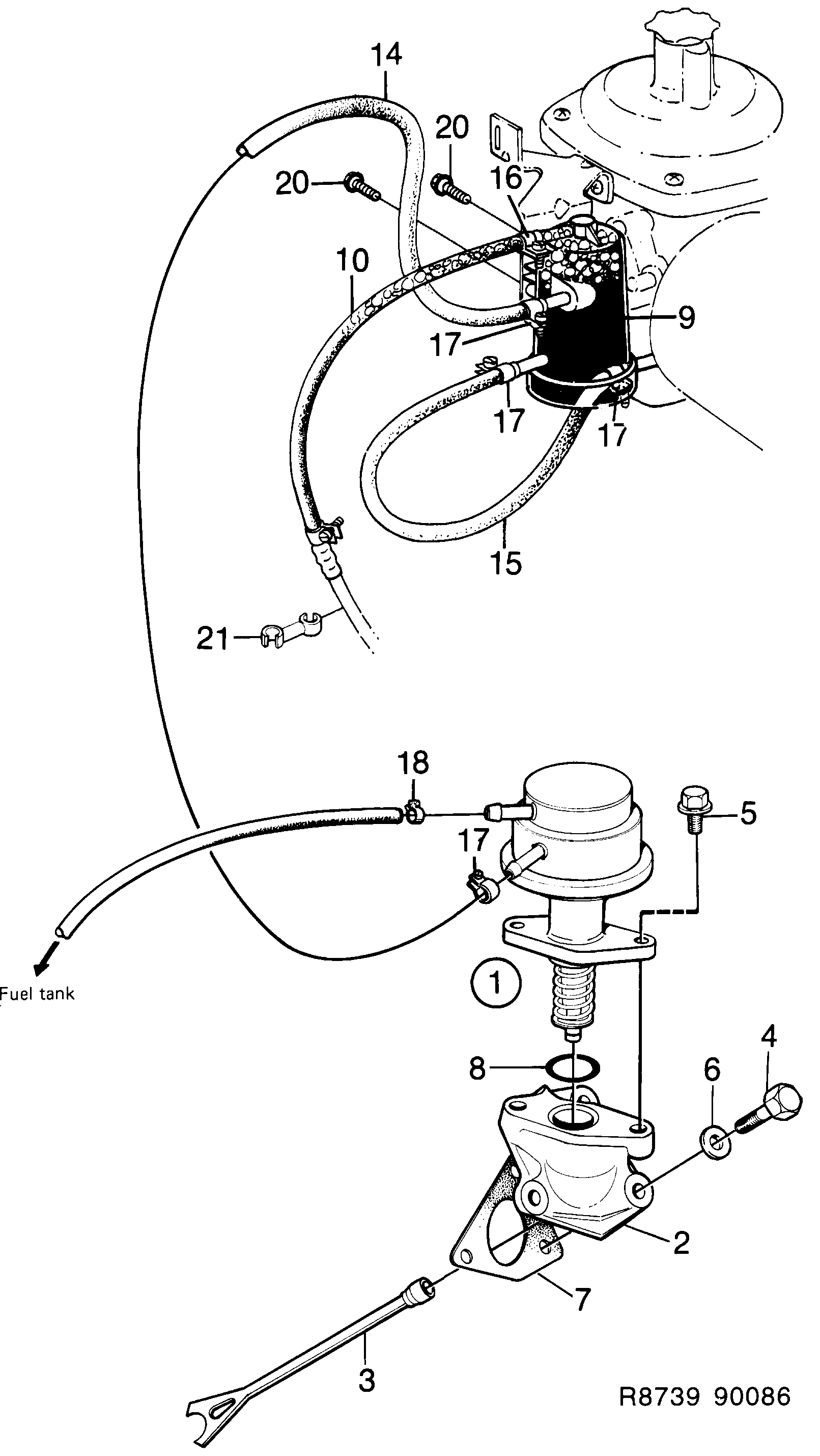

Saab 900 Fuel pump carburettor engine diagram

Pos	Article	Part No.
1	Fuel pump	7522733
2	Connector	9306705
3	Push rod	9312927
4	Screw	55562873 (replaces 8082968)
5	Screw	8125163
6	Washer	92153033 (replaces 8029985)
7	Gasket	7566458 (replaces 9306721)
7	Gasket	7566458
8	O-ring	8046617
9	Separator	7561483
9	Separator	7586795
10	Hose	9363284
14	Fuel hose	7504160
15	Hose	7561657
15	Hose	7504111
16	Hose clamp	90530642 (replaces 8359275)
17	Hose clamp	7503758
18	Hose clamp	7968308
20	Screw	7581333
21	Clip	9345257
