Saab 900 1994-1997 Oil pan, oil filter

Group 2 Engine, section 630

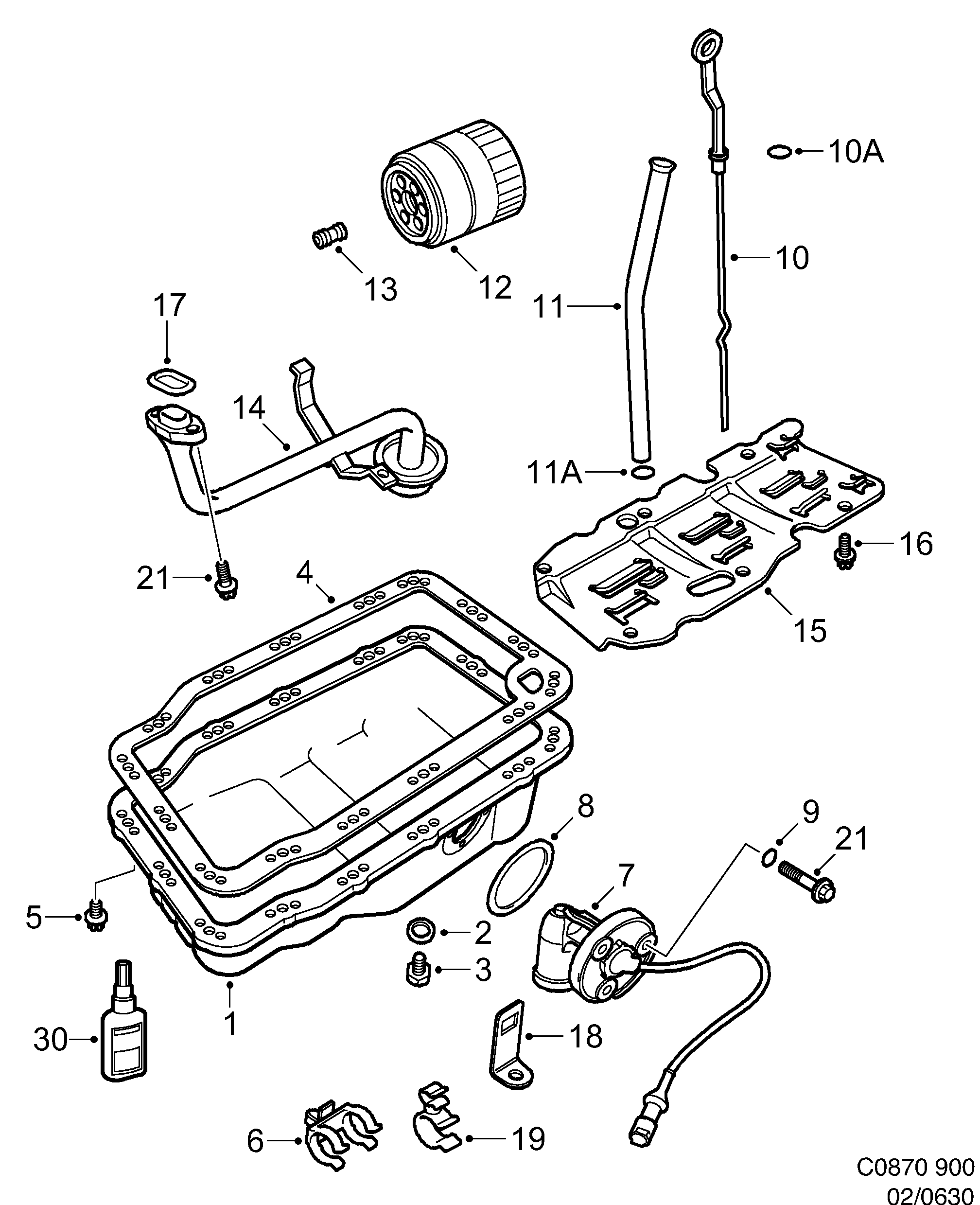

Saab 900 Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pan	4620027
2	Sealing ring	11016282 (replaces 4502134)
2	Sealing ring	11016282 (replaces 4345716)
3	Screw plug	90409376 (replaces 4502142)
4	Gasket	90411814 (replaces 4502167)
5	Screw	11093611 (replaces 4501110)
6	Clip	4502662
7	Sensor, oil lever	90356584 (replaces 4502571)
8	O-ring	90299143 (replaces 4502597)
9	Sealing ring	11091421 (replaces 4502613)
10	Dipstick	90412454 (replaces 4502399)
10	Dipstick	4620142
10A	O-ring	90467373 (replaces 4620225)
11	Oil-level tube	4502423
11	Oil-level tube	90573588 (replaces 4620241)
11	Oil-level tube	90573588 (replaces 4773768)
11A	O-ring	90467275 (replaces 4620258)
12	Filter	93178952 (replaces 4502696)
13	Junction pipe	90412159 (replaces 4502712)
14	Oil pipe	90411012 (replaces 4502308)
15	Baffle plate	24428044 (replaces 4502050)
16	Screw	11093971 (replaces 4502076)
16	Screw	11093971 (replaces 4770038)
17	Sealing ring	90411017 (replaces 4502332)
18	Connector holder	4502647
19	Clamp	4502639
21	Screw	11093872 (replaces 4502274)
30	Nut lock	7496268
	Service kit	7496250
