Saab 900 1994-1998 Oil pan, oil filter 4-cylinder

Group 2 Engine, section 600

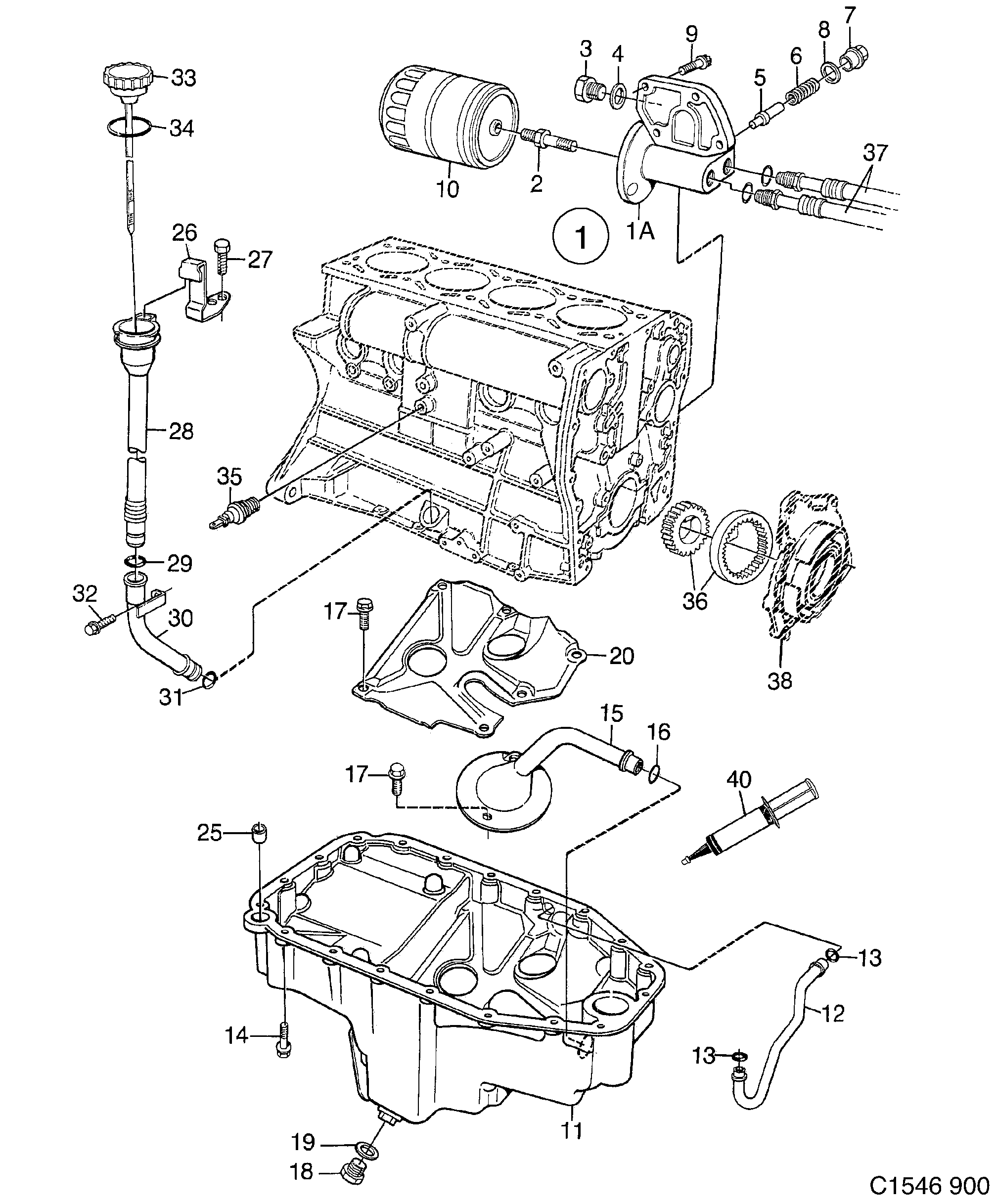

Saab 900 Oil pan, oil filter 4-cylinder diagram

Pos	Article	Part No.
1A	Connector	32000393 (replaces 9130816)
1	Connector	9139239
1A	Connector	9139239 (replaces 9138645)
2	Junction pipe	8348609
3	Plug	7563042 (replaces 8123721)
4	Gasket	92150435 (replaces 8124141)
5	Thermostat	55557392 (replaces 9301540)
5	Thermostat	55557392 (replaces 9142175)
6	Spring	9300591
7	Plug	7520372
8	Gasket	30520353 (replaces 9109182)
9	Screw	11900367 (replaces 8059800)
9	Hexagon screw	11900367 (replaces 7978216)
10	Oil filter	93186554 (replaces 9144445)
11	Oil pan	9144650
12	Tube	9130618
12	Tube	9175696
13	O-ring	9137993
14	Screw	92150014 (replaces 4087243)
14	Screw	92150014 (replaces 7978208)
15	Oil pipe	9165572
16	O-ring	9138009
17	Screw	7971294
18	Plug	9132929
19	Gasket	9132937
20	Protection	9144668
25	Guide	8346470
26	Bracket	30551927 (replaces 9146986)
27	Screw	11900353 (replaces 7978091)
28	Oil-level tube	32000402 (replaces 9138074)
29	O-ring	9138108
30	Pipe	9146994 (replaces 32025869)
31	O-ring	55355266 (replaces 9147026)
32	Screw	7974082
33	Dipstick	9170671 (replaces 9168238)
33	Dipstick	9170671
34	Ring-gland	55557303 (replaces 9361544)
35	Engine oil pressure sensor	30520357 (replaces 9112459)
40	Flange sealant	90297970
