Saab 900 1986-1989 Air cleaner

Group 2 Engine, section 580

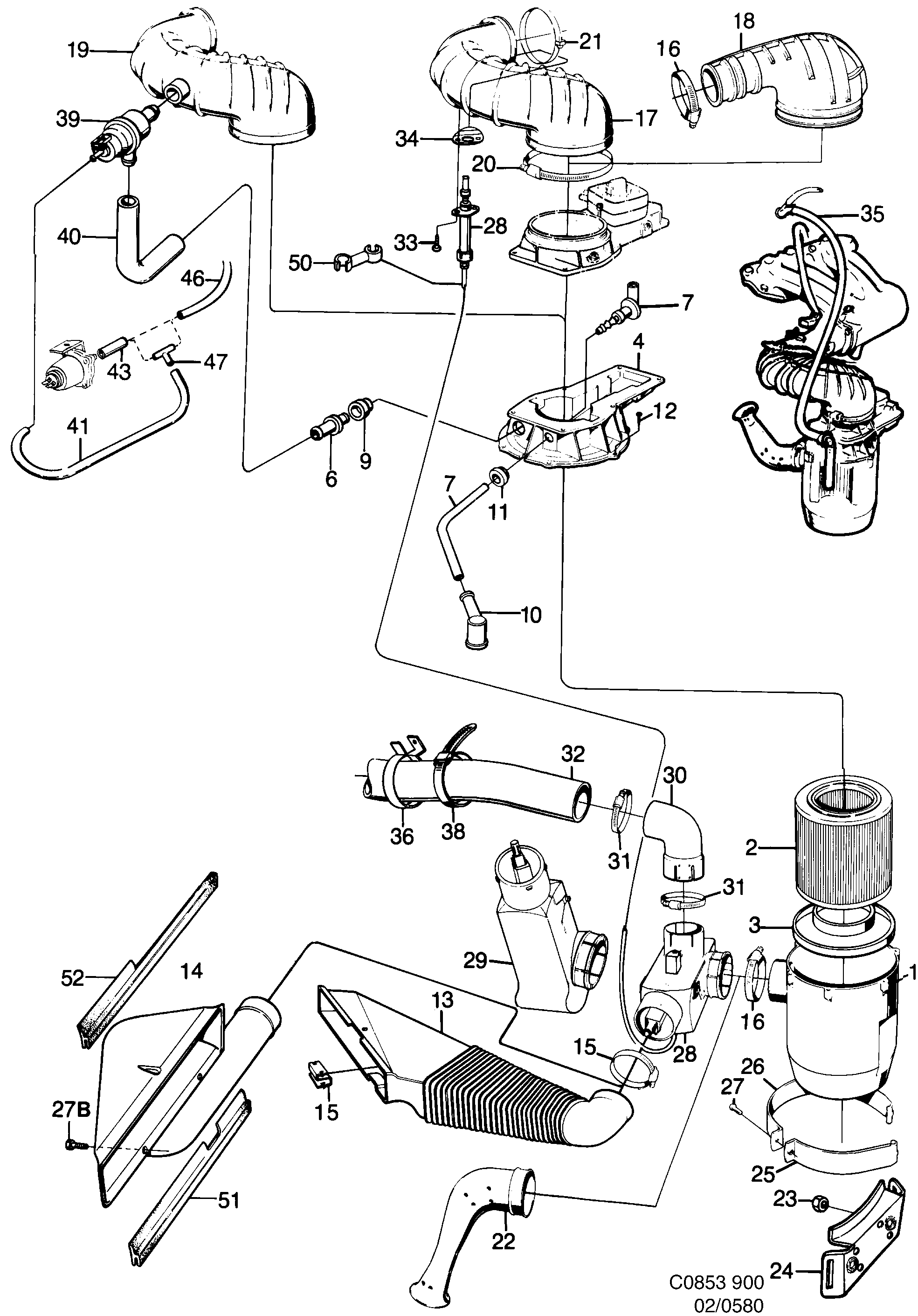

Saab 900 Air cleaner diagram

Pos	Article	Part No.
1	Air cleaner	7512999
1	Air cleaner	8317901
2	Air filter	9318502
3	Insert	8317919
4	Adapter	8334831
4	Adapter	9303892
7	Nipple	9303900
10	Rubber elbow	8326621
11	Bushing	8325656
12	Screw	7922370
13	Tube	7525801
14	Tube	7525447
14	Tube	8978306
15	Clamp	9319526
16	Hose clamp	92153079 (replaces 7970148)
17	Air duct	9332081
17	Connector	8386351
18	Sleeve	7532013
18	Air duct	7536642
19	Air inlet	9346487
20	Clamp	7970189
21	Hose clamp	92153080 (replaces 7970155)
22	Snorkel	8332918
22	Air inlet	7533870
23	Nut	8151227 (replaces 8029555)
23	Nut	8151227
24	Bracket	9288432
25	Tie strap	8321044
26	Tie strap	8321051
27	Screw	8019945
27B	Screw	7922891 (replaces 7974769)
28	Throttle body	9331893
29	Throttle body	9303181
30	Pipe end	9303207
31	Hose clamp	92153077 (replaces 7970130)
32	Hose	9317991
32	Hose	9331174
32	Hose	7529191
33	Screw	7965684 (replaces 7922289)
34	Washer	9332057
35	Hose	8326480
36	Clamp	9341173
38	Tie strap	7971906
39	Vacuum valve	9346206
40	Hose	9346461
41	Vaccum hose	9136243
46	Hose	7512346
47	Pipe	12791937 (replaces 8366791)
50	Clip	9345257
51	Seal	7512890
51	Rubber moulding	7539125
52	Seal	7512916
52	Rubber moulding	7528284
	Tie strap	11900513 (replaces 7971880)
