Saab 900 1986-1989 Air cleaner carburettor engine

Group 2 Engine, section 550

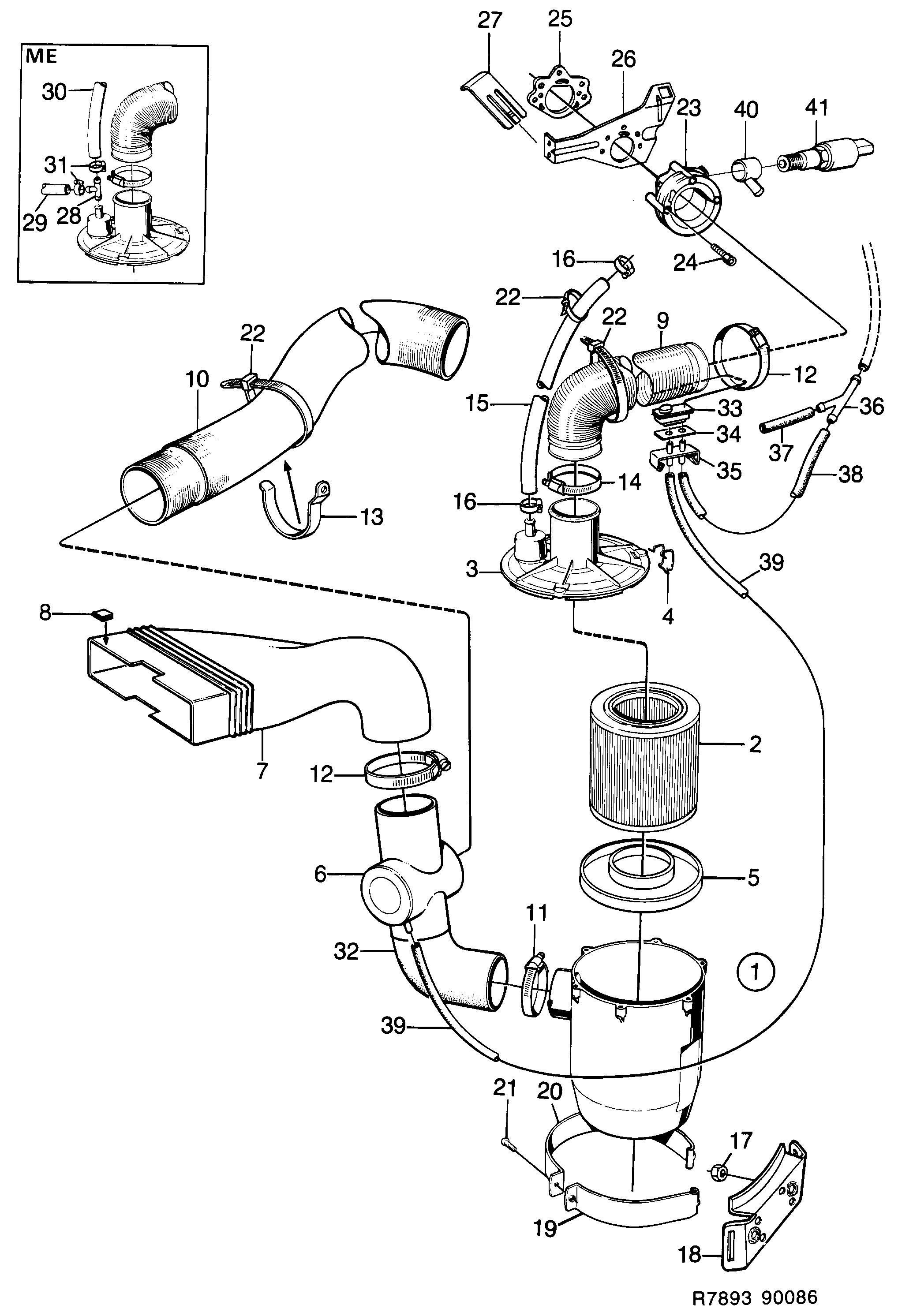

Saab 900 Air cleaner carburettor engine diagram

Pos	Article	Part No.
1	Air cleaner	8317893
2	Air filter	9318502
3	Cover	8327678
4	Clamp	8318339
5	Insert	8317919
6	Throttle body	7529852
7	Tube	7536576
8	Clamp	9319526
9	Pipe end	7528698
10	Hose	7529845
10	Hose	7529183
11	Hose clamp	92153079 (replaces 7970148)
12	Hose clamp	92150224 (replaces 7970163)
13	Clamp	9341173
14	Clamp	8327561
15	Hose	8326480
16	Hose clamp	7970064
17	Nut	8151227 (replaces 8029555)
17	Nut	8151227
18	Bracket	9288432
19	Tie strap	8321044
20	Tie strap	8321051
21	Screw	8019945
22	Tie strap	11900513 (replaces 7971880)
23	Attaching ring	8379026
23	Flange	7580244
24	Screw	7962442
24	Screw	8098139
25	Gasket	7506959
26	Bracket	7520067
26	Bracket	7580574
27	Plate	9362542
28	Nipple	8317828
29	Hose	7526429
30	Hose	7526411
31	Hose clamp	7975543
32	Pipe end	7529860
33	Vacuum valve	7529878
33	Vacuum valve	7536931
34	Seal	7529886
35	Clip	7529894
36	Tube	8509002
37	Vaccum hose	9136243
40	Nipple	7580582
41	Solenoid valve	7581317
