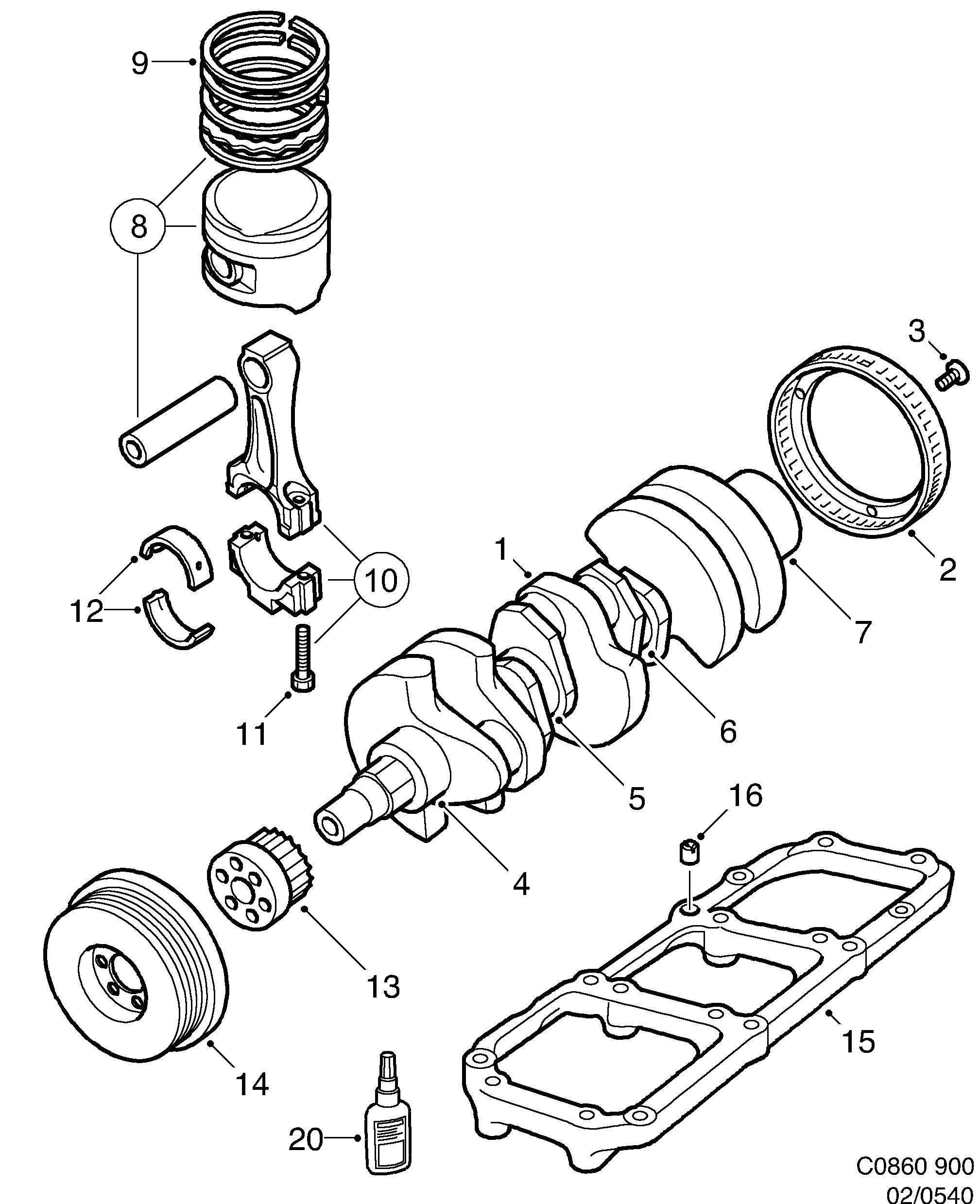

Group 2 Engine, section 540
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 90444055 (replaces 4501151) |
| 1 | Crankshaft | 90444055 |
| 4 | Main bearing | 90444001 (replaces 9321977) |
| 4 | Main bearing | 90444002 (replaces 9321985) |
| 4 | Main bearing | 90444005 (replaces 9321993) |
| 5 | Main bearing | 9117252 (replaces 8821779) |
| 5 | Main bearing | 9117255 (replaces 8821787) |
| 5 | Main bearing | 9117256 (replaces 8821795) |
| 6 | Main bearing | 9117252 (replaces 8821829) |
| 6 | Main bearing | 9117255 |
| 6 | Main bearing | 9117256 (replaces 8821845) |
| 7 | Main bearing | 90444006 (replaces 8821720) |
| 7 | Main bearing | 90444007 (replaces 8821738) |
| 7 | Main bearing | 8821746 |
| 8 | Piston | 90466889 (replaces 4501805) |
| 8 | Piston | 90466890 (replaces 4501813) |
| 8 | Piston | 90466891 (replaces 4501821) |
| 8 | Piston | 90466892 (replaces 4501839) |
| 8 | Piston | 90466893 (replaces 4501847) |
| 8 | Piston | 90466894 (replaces 8821878) |
| 9 | Piston ring kit | 8821886 |
| 10 | Connecting rod kit | 90541624 |
| 11 | Screw | 90467192 (replaces 4501789) |
| 12 | Big end bearing kit | 90486271 (replaces 8821902) |
| 12 | Big end bearing kit | 90486272 (replaces 8821910) |
| 12 | Big end bearing kit | 8821928 |
| 15 | Bearing carrier | 24427917 (replaces 4620019) |
| 16 | Sleeve | 90412157 (replaces 4500393) |
| 20 | Nut lock | 7496268 |
